TransCore encompass 4 - Figure 47 Sample Circuit Connections; Figure 48 Sample Circuit Connections for IAG Installations

Encompass 4 Reader System Guide
TransCore Proprietary.
4-60
For Encompass 4 Readers that are used with IAG protocols, the NC sense output0 common is connected
to the NO sense output0 common via a jumper providing a return for sense output0 NC. Figure 48 shows
this wiring.

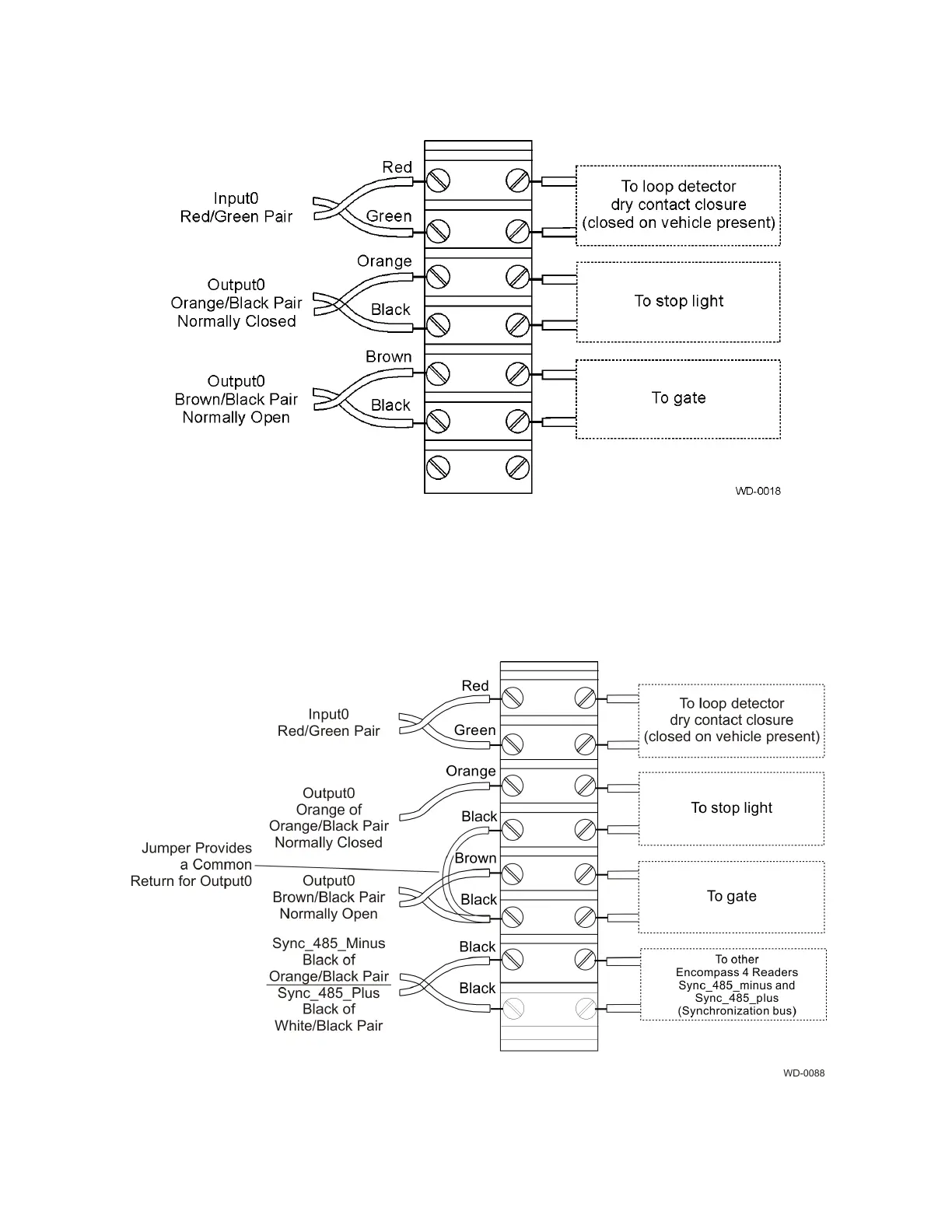

Figure 47 Sample Circuit Connections
Figure 48 Sample Circuit Connections for IAG Installations
