TransCore encompass 4 - Figure 32 Pole-Mount Bracket Assembly; Figure 33 the Encompass 4 Reader Attached to the Pole Mount Bracket

Chapter 4 Installing the Encompass 4 Reader
TransCore Proprietary
4-43
2. A pole mount bracket assembly (Figure 32) is bubble-wrapped separately and contains a plastic bag
of four Allen screws and washers.
3. Using the two 0.5-inch (1.3-cm) stainless steel hose clamps, attach the pole mount bracket assembly to
the pole approximately 8-feet (2.4-m) above the pavement surface. Tighten slightly so you can adjust
the Encompass 4 Reader left or right, but not so slightly the straps slide down the pole.
4. Using the four Allen screws and washers, attach the Encompass 4 Reader to the pole mount bracket
as shown in Figure 33. Tighten the screws slightly so that the Encompass 4 Reader can be adjusted
up or down, but not so slightly the mounting assembly slips.

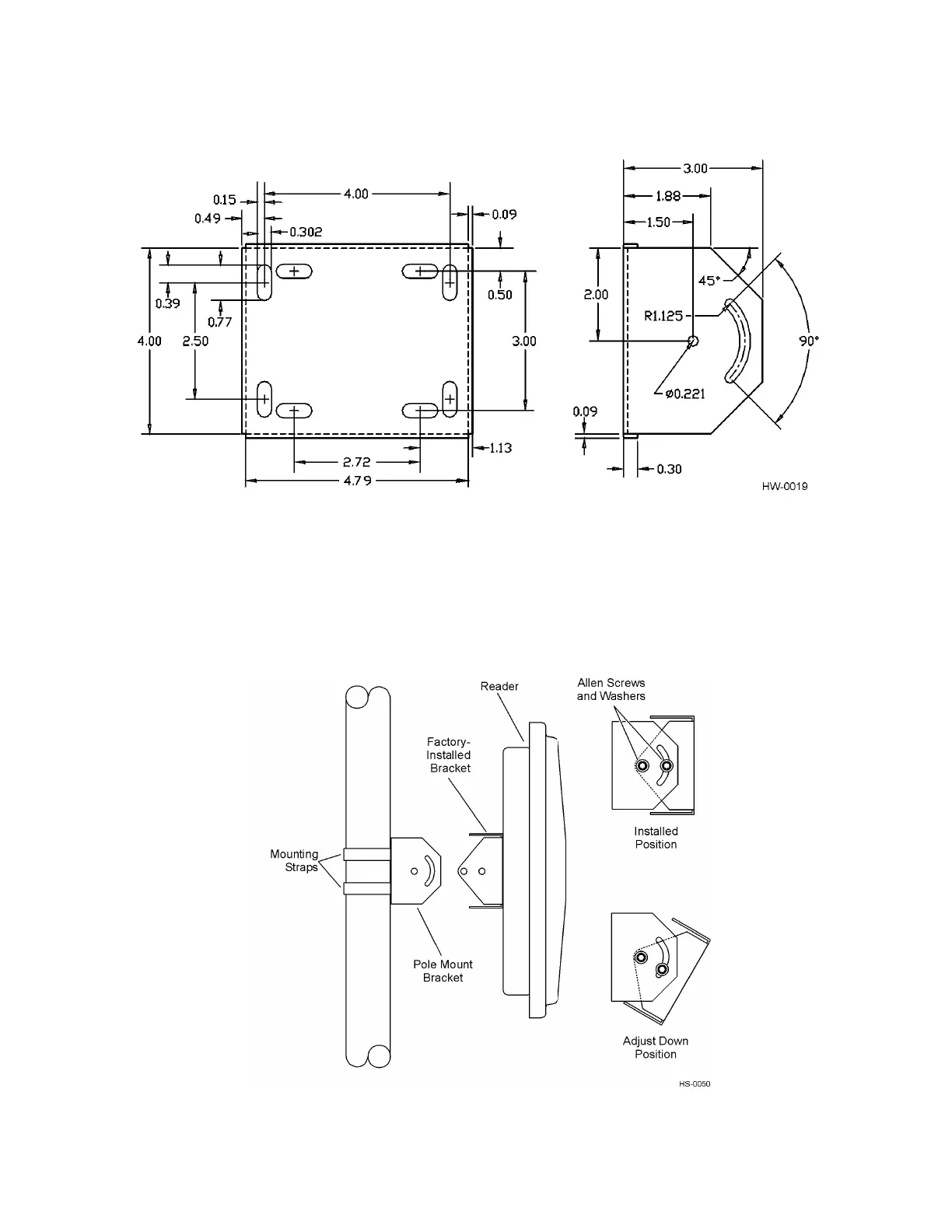

Figure 32 Pole-Mount Bracket Assembly
Figure 33 The Encompass 4 Reader Attached to the Pole Mount Bracket
