Reader Cable Grounding
Ensure that you connect the communications cable shield drain wire to Earth Ground and the yellow/black
wires to Signal Ground (Figure 44).
Caution
Do not ground the input power supply.
After connecting the wires in the communications cable, connect the drain wire from the
communications cable to Earth Ground. Connect the yellow/black wires to Signal Ground.

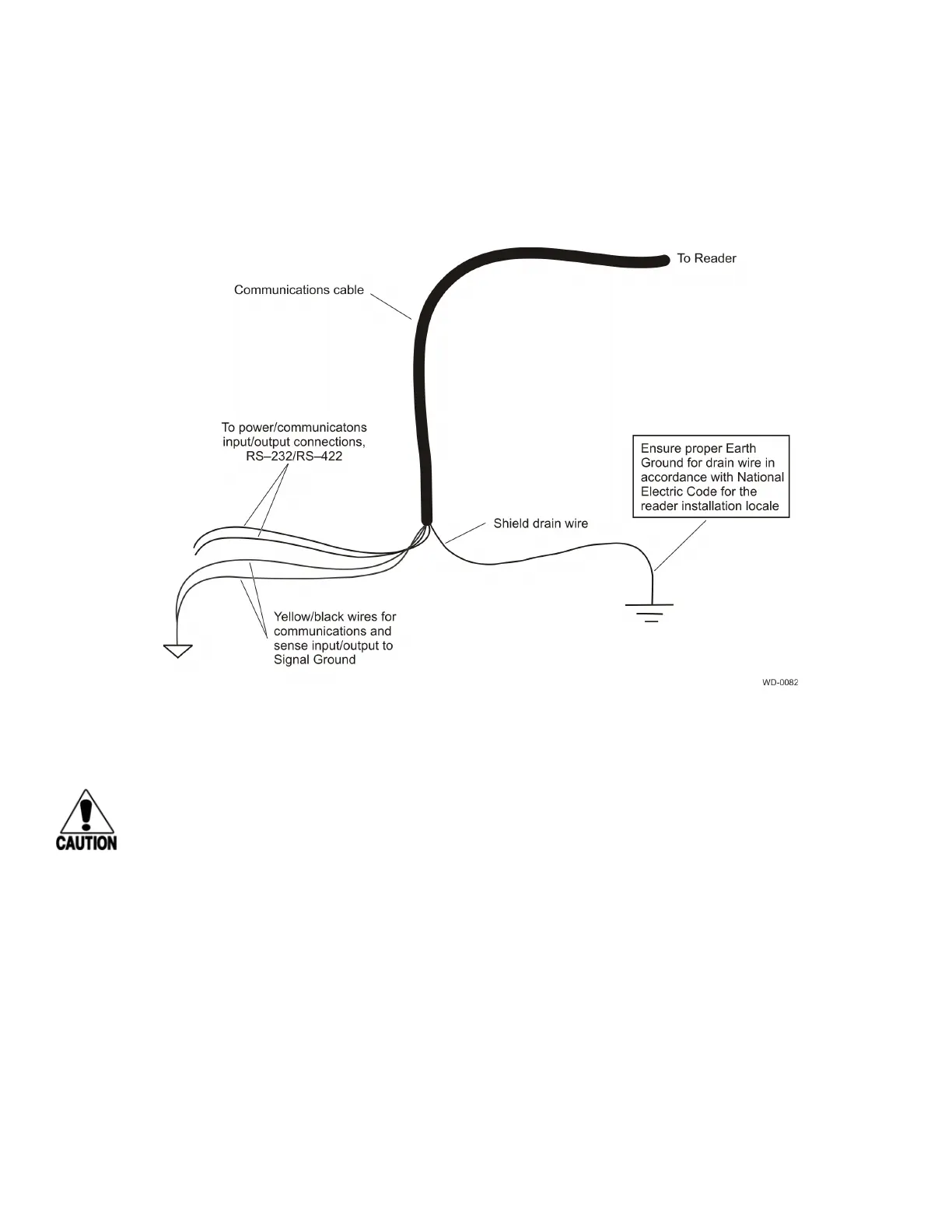

Figure 44 Recommended Reader Cable Grounding
