Chapter 4 Installing the Encompass 4 Reader
TransCore Proprietary
4-47
5. Using the four screws and washers supplied with the wall-mount bracket, attach the factory-mounted
bracket to the wall mount bracket, lining up the four outside screw holes as shown in Figure 37.
6. Tighten lightly, since you will want to adjust the bracket later. This subassembly allows you to aim the
Encompass 4 Reader left or right when all three brackets are assembled.
7. Mount the pole-mount bracket to the wall, ceiling, or fixture using appropriate anchors as shown in
Figure 38.

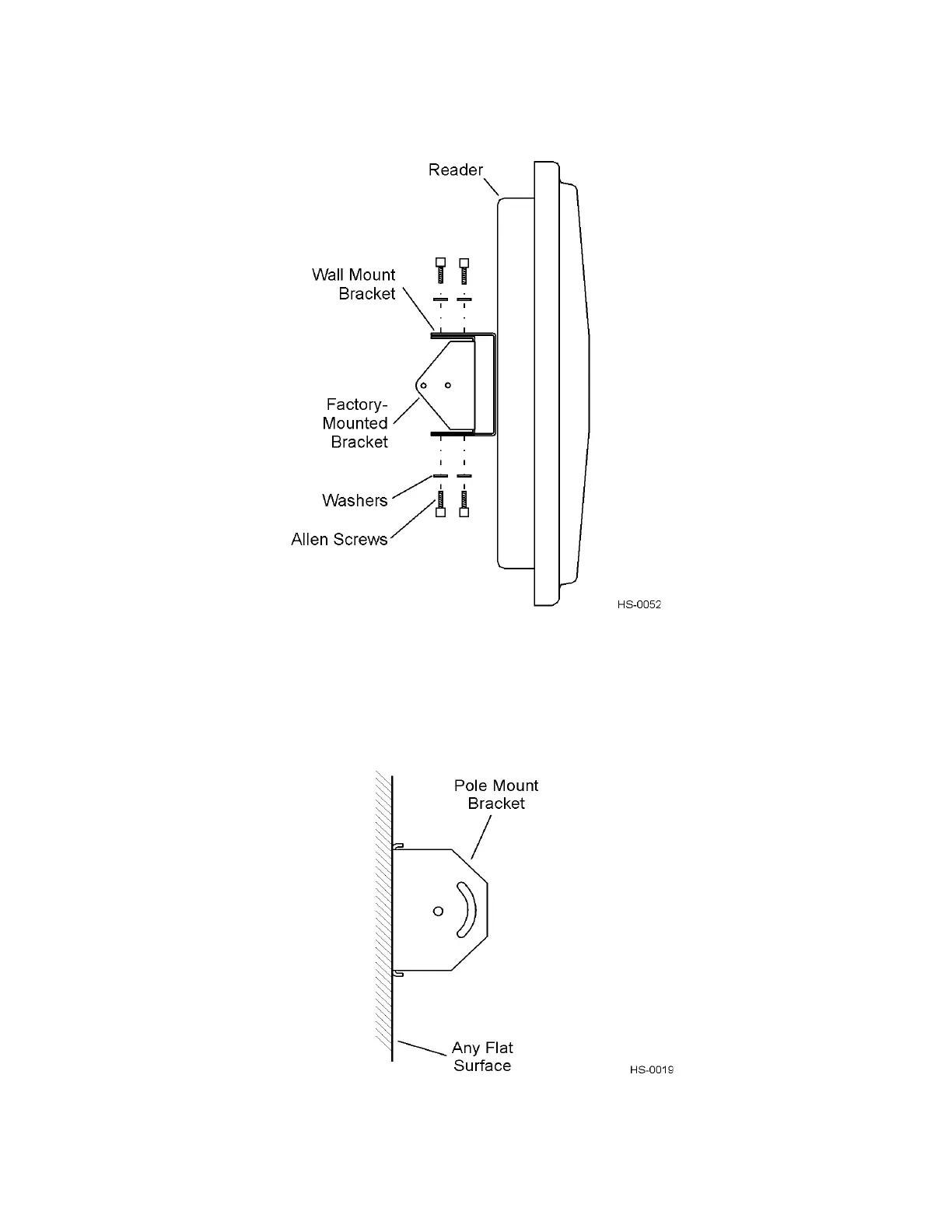

Figure 37 Factory-Mounted Bracket Attached to Wall Mount Bracket
Figure 38 Pole Mount Bracket Attached to Wall
