Screen One:
Appendix A: Using the SDG MTL Generator
Screen Two:
The second screen of the MTL displays the plot of the particle size distribution curve and displays a table of all
of the material properties that will be converted into a text file to upload to the SDG.

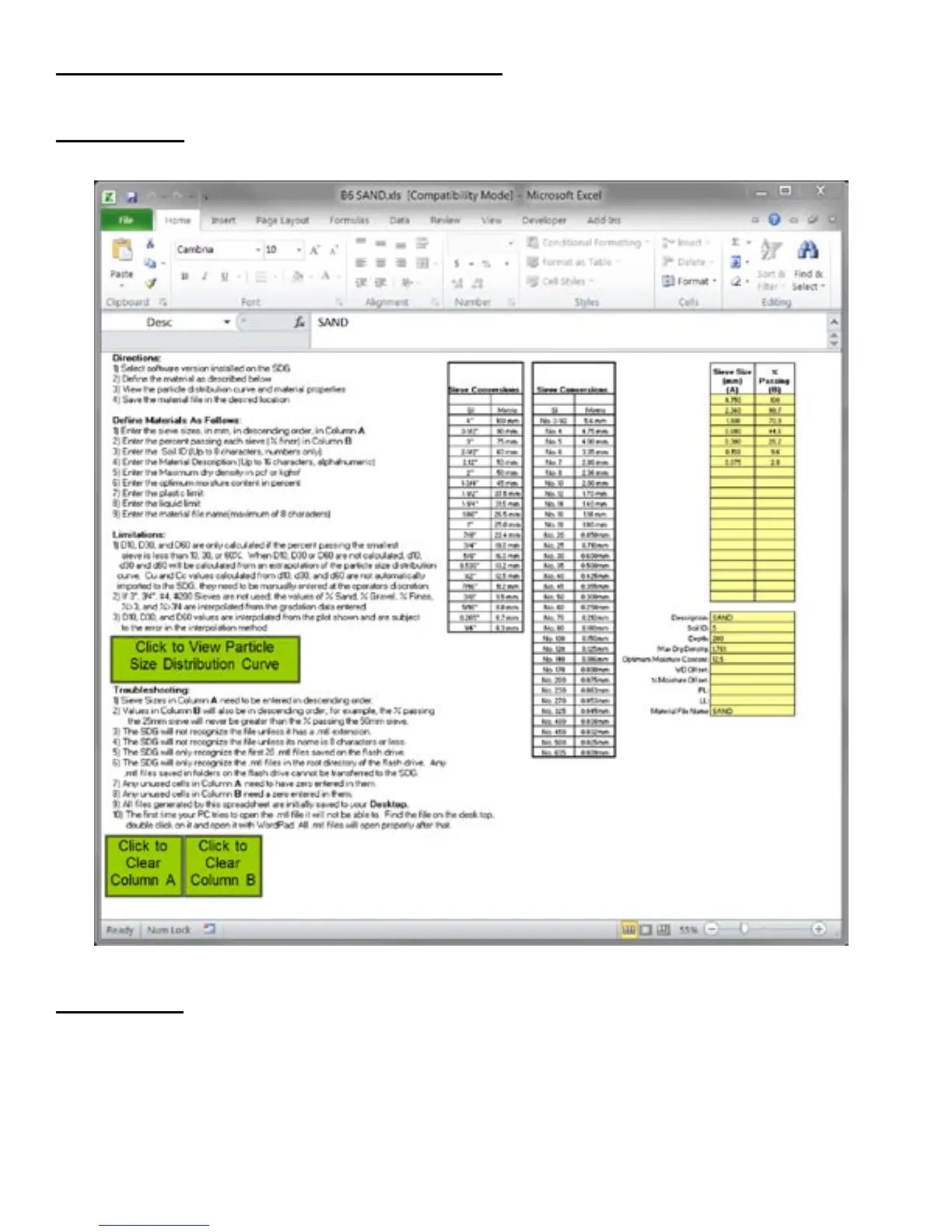

On Screen 1, input the sieves used in the gradation (in mm) and the percent of material passing each sieve in
columns A and B. The data must be entered in order of decreasing sieve sizes, and the first sieve entered should
be of a size such that 100% of the material passed that sieve.
