66
10.2016
WTAL - TNX65/42
Safety-related maintenance every 1, 2, 4 and 8 years
Servo butter battery
Replace servo buffer batteries
Regular replacement every 4 years
Axis amplifier Date Signature
Maintenance of control cabinet every 4 years
Danger due to electric power
Work on motors or other electrical assemblies may only be carried
out by specially trained and instructed personnel!
Electrical components may still be energized even when the
machine has been switched off. These components are marked
accordingly and must not be touched before expiry of the specified
discharge time.
Check buffer batteries

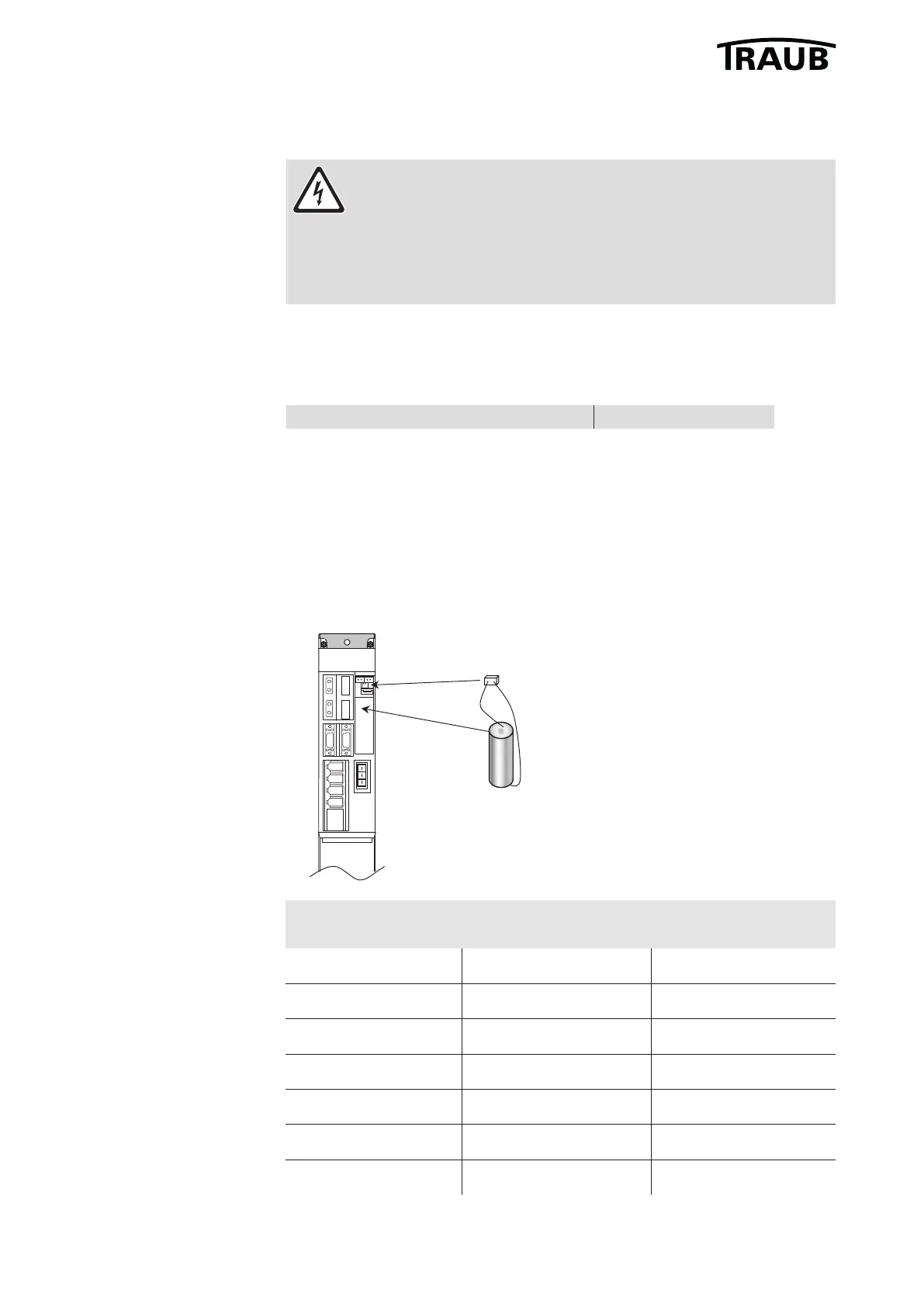

A servo buffer battery ER6V-C119B is installed in each axis amplifier.
The battery must be replaced after four years at the latest!
Servo buffer battery, type ER6V-C119B Article No. 223093
(5 - 9 batteries, depending on machine configuration)
Replace buffer batteries
• Open front panel of axis amplifier
• Unplug and take out battery
• Connect and insert new battery
• Close front panel of axis amplifier
G07
