-9-
WRT

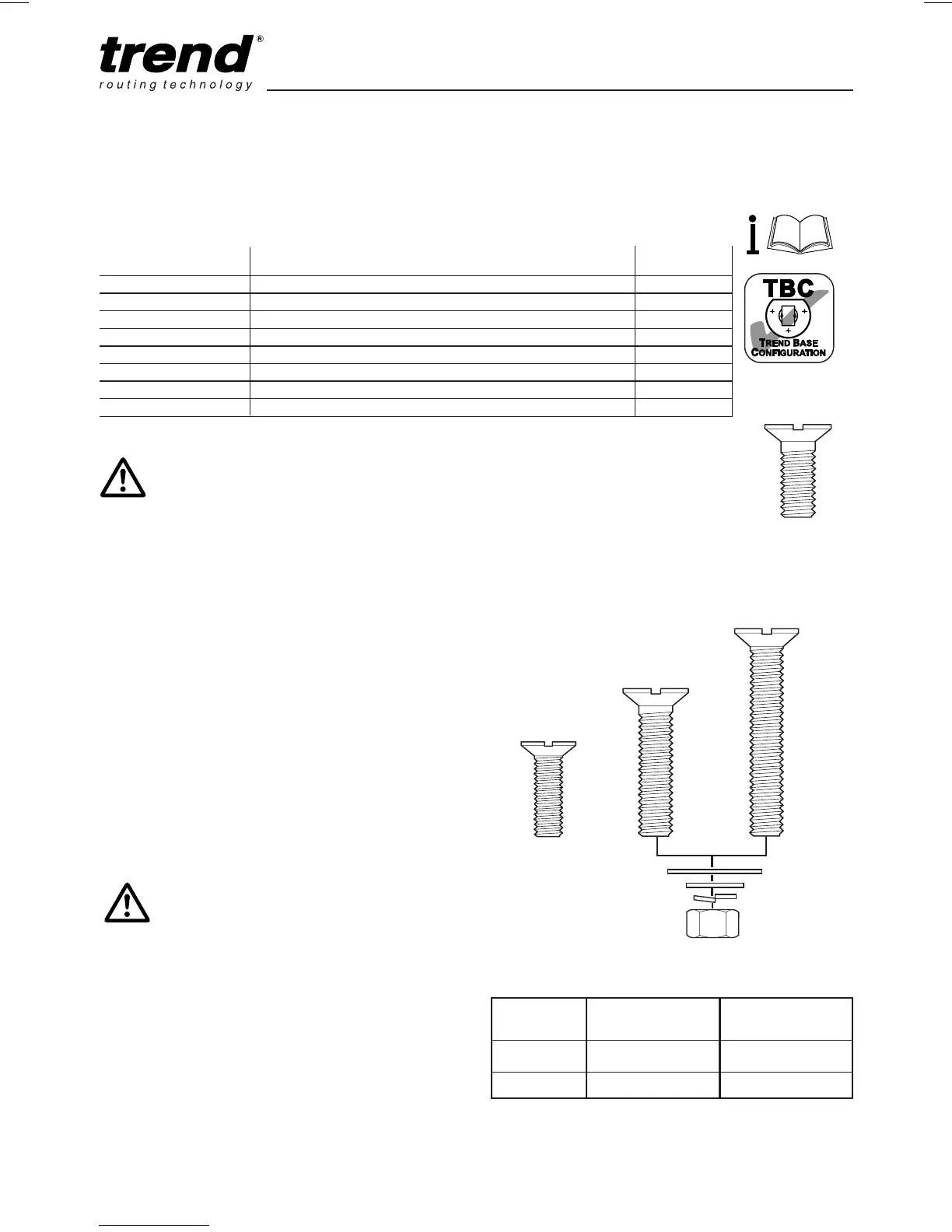

Router Compatibility
Screw
Make Router Model x Qty
TREND T3, T4, T5 B X 2
TREND T9, T10, T11 B X 3
CMT CMT1E B X 3
DEWALT DW613, 614, 615 B X 2
DEWALT DW624, 625E B X 3
ELU MOF96(E) MK2. B X 2
ELU MOF131, 177(E) Mk2 B X 3
PERLES OF808(E) >1999 B X 2
The insert plate is drilled to suit routers with TBC
hole configuration. The following routers use the
screws (B) supplied.
C
M6x25mm
B
M6x15mm
D
M6x35mm
A
M5x15mm
Black
For users who choose to fit other makes and
models of router, the router base plate and/or
insert plate will need to be re-drilled by the user.
Where possible it is advisable to use the existing
countersunk holes for M6 machine screws in the
insert plate and drill corresponding holes in the
router base plate. The router is then fitted using
the M6 machine screws, washers and nuts
(C or D).
For some machines M5 screws machine screws
(A) can be used to fit into the M5 holes in the
router base.
Screw Countersink Hole
size diameter diameter
M6 13mm 6mm
M5 10mm 5mm
C
M6x25mm
B
M6x15mm
D
M6x35mm
A
M5x15mm
Black
Countersink Hole Size
The fixing pack supplied with the table includes
the following machine screws.
NOTICE: The M6x15mm screws are
packed in the backfence fixings bag.
NOTICE: Do not mount any power
tools not specified on this list.
