-25-

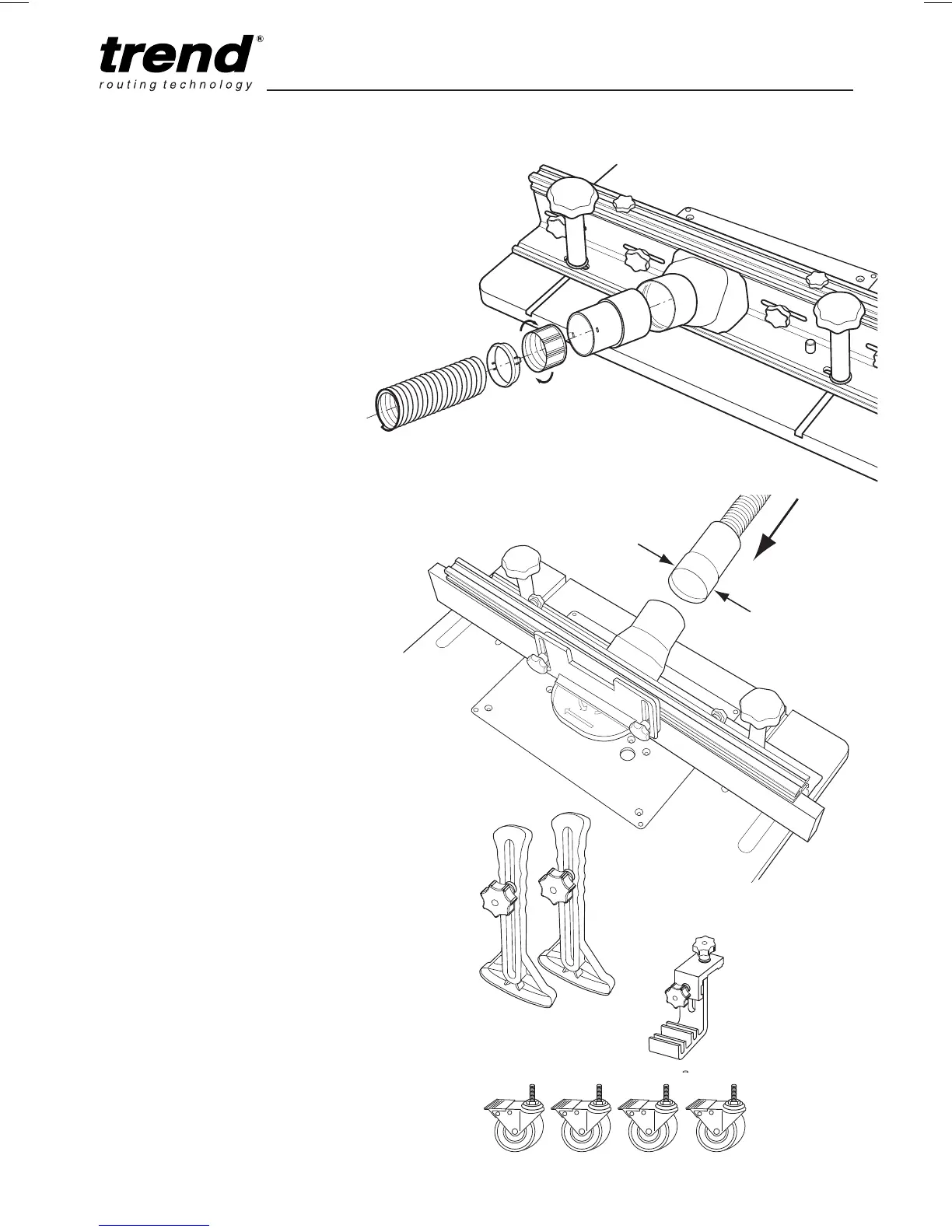

Hose and Connector
Ref. CRT/4
The back fence is provided with an
extraction point for connection to suitable
vacuum extractors. The internal hole
diameter is 57mm (2-1/4”).
n Only a vacuum extractor unit recom-
mended for use in the workshop
should be used.
n A suitable adaptor and extraction
hose can be purchased as optional
accessories.
The accessory hose Ref. CRT/4 has an
outside diameter of 39mm and inside di-
ameter of 32mm. It is fitted with the hose
adaptor which is a three piece design
that allows the hose to swivel freely.
n Assemble the hose adaptor onto the
end of the hose as shown and insert
into back fence.
n Fit the other end of the extraction
hose to your dust extractor.
Ref. CRT/4 Hose 39mm OD x
32mm ID x 3m.
CRT/4
Please use only Trend original accessories.
ACCESSORIES
Single Pressures and Limit Stop
Ref. WRT/1, WRT/2
Ref. WRT/1 Pair of single pressures that can
fit to back fence face extrusion
for machining longer lengths of
timber.
Ref. WRT/2 Limit stop with height adjustment
fits to back fence top extrusion.
Castors
Ref. WRT/3
Ref. WRT/3 Castors (4 pack) with foot operated
lock. Raises router table height by
35mm. Replaces standard feet.
WRT/2
WRT/3
WRT/1
