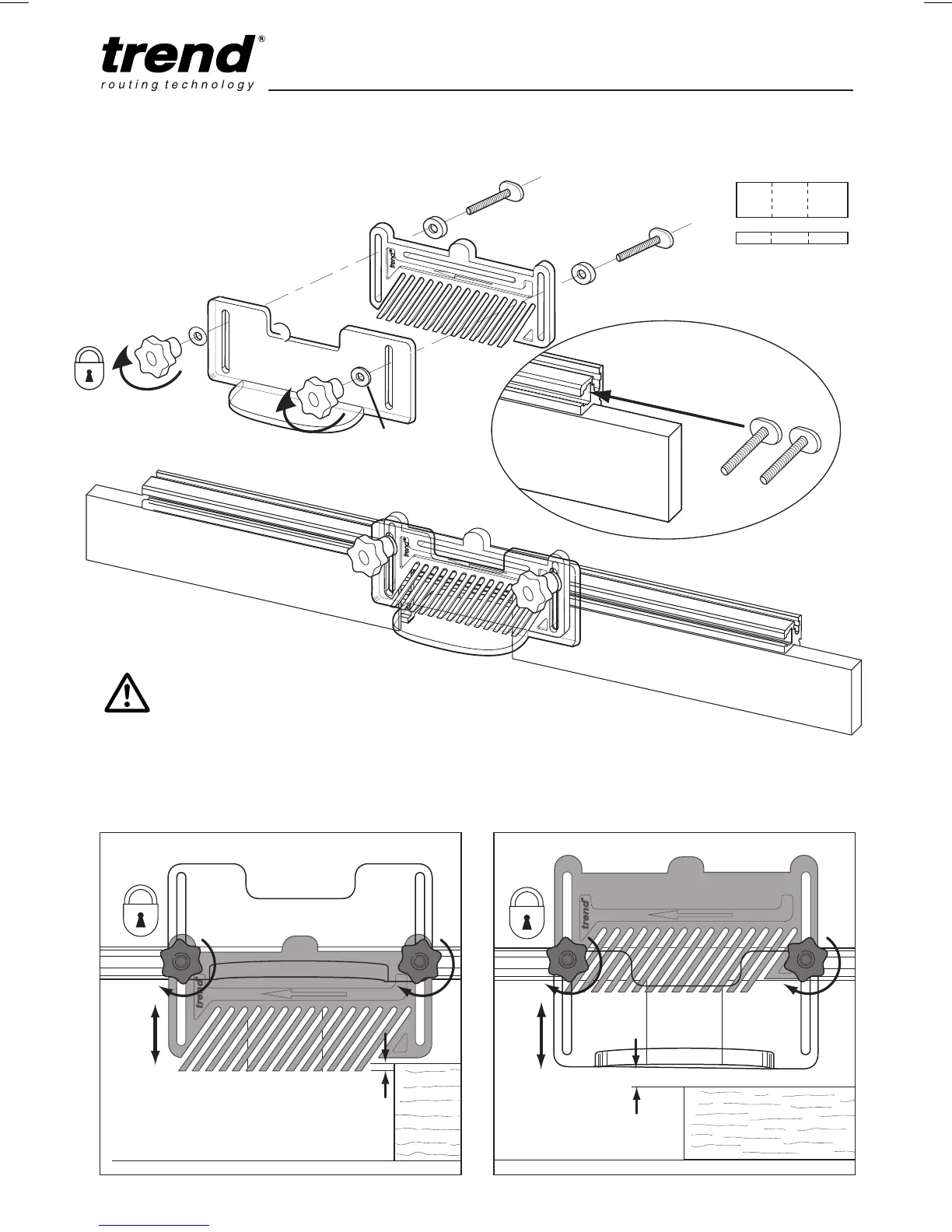

TREND WRT - Guard and Pressure Fitting; Fitting Top Guard & Top Pressure

-14-
WRT
Plastic
Fitting Top Guard & Top Pressure
A
A
B
B
B
A
45%
45%
5mm max
10mm
max
45%
45%
5mm max
10mm
max
x2
x2
NOTICE: For some applications the thick and
thin washer can be swapped over. For exam-
ple, when profile scribing using a pushblock.
Fitting Top Guard & Top Pressure
