TREND WRT - Fence Assemblies; Back Fence Assembly and Fitting; Assembling Mitre Fence

-13-
WRT

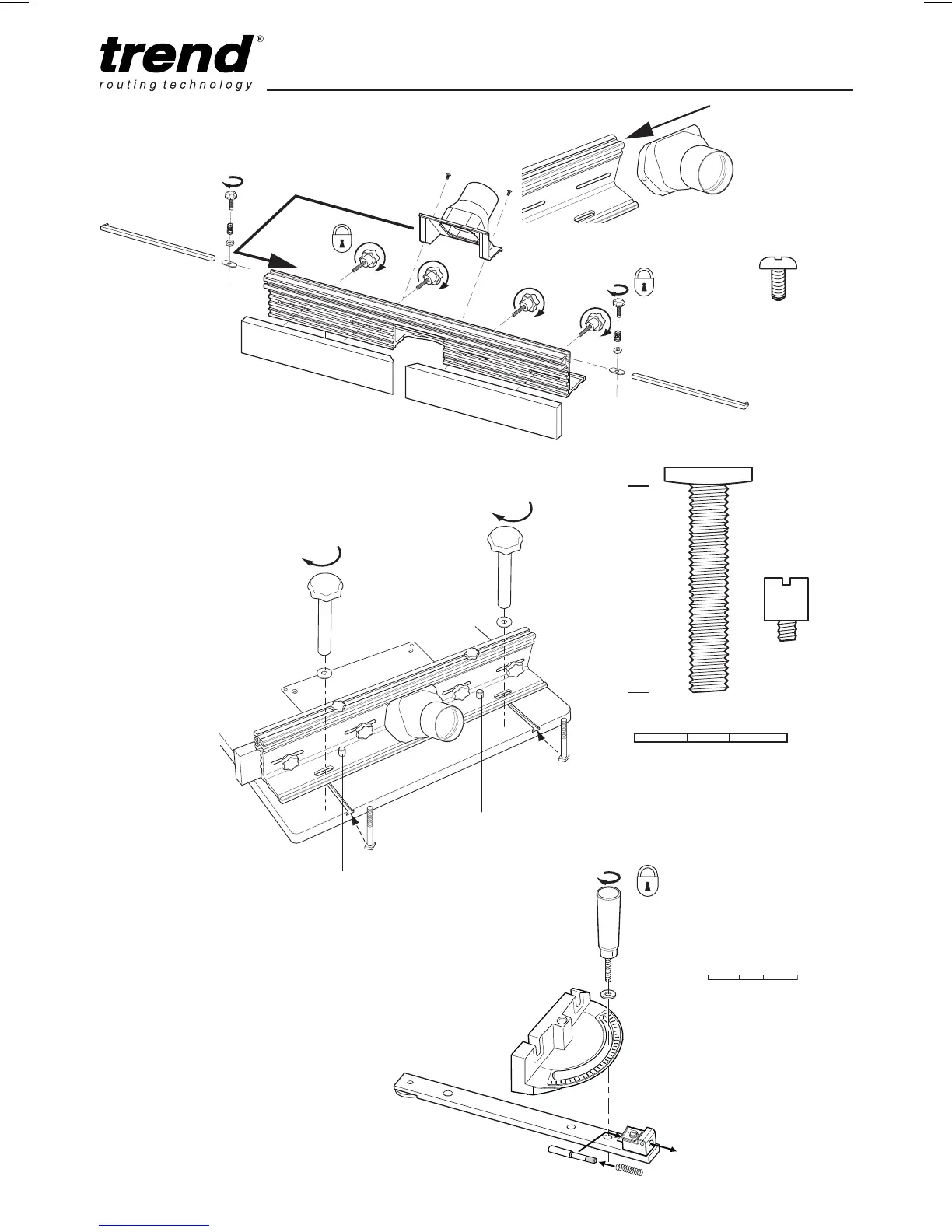

Fitting Back Fence
2
2
Assembling Mitre Fence
1
2
3
4
x2
Preset mitre fence angles can be zeroed by
loosening the lock nuts on the underside of
the protractor using an 8mm A/F spanner, and
adjusting the screws using a Phillips
®
No.2.
screwdriver.
Once set tighten the nuts with an 8mm
A/F spanner.
Back Fence As-
sembly
Pin Park
T11 Quick Raiser
Handle Parke Pin
Use Phillips
®
No.2 screwdriver.
Quick Raiser
Handle Park Pin.
Slide dust spout
into extrusion
from one end be-
fore fitting fence
cheeks knobs.
Scale is self adhesive
backed and can be placed
onto the top of the fence. Ensure ‘0’ is
centred.
Scale can be trimmed to the
length of the back fence.
x2
x2
x1
x1
31mm
