TREND WRT - Insert Plate and Rings Setup; Levelling the Insert Plate

-12-
WRT
Levelling the Insert Plate

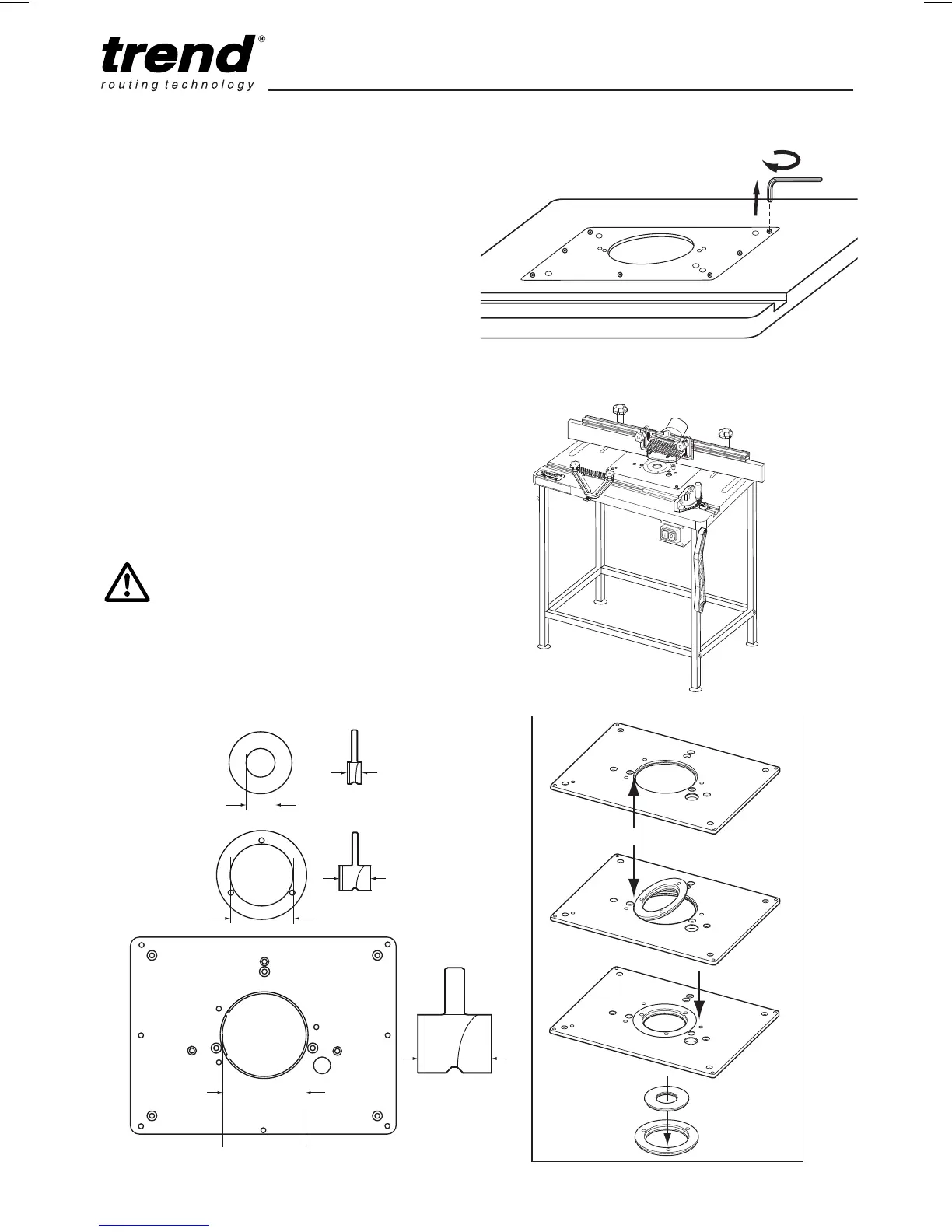

The insert plate can be levelled to the table top by
adjusting the seven set screws with the hex key.
n To adjust, first loosen the four insert plate fixing
screws.
n Rotate the seven set screws until insert plate is
level to table top.
n Once set, tighten the insert plate fixing screws.
n Check plate for level and adjust as necessary.
Line up with notch
Fitting Insert Rings
31.8mm
28mm
ø max.
67.5mm
64mm
ø max.
86mm
ø max.
98mm
WARNING: Always ensure
insert rings are a tight fit
in the insert plate. Replace
damaged or loose rings im-
mediately.
