TRENDnet TI-PG1284i User Manual

© Copyright 2016 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TI-PG1284i
7

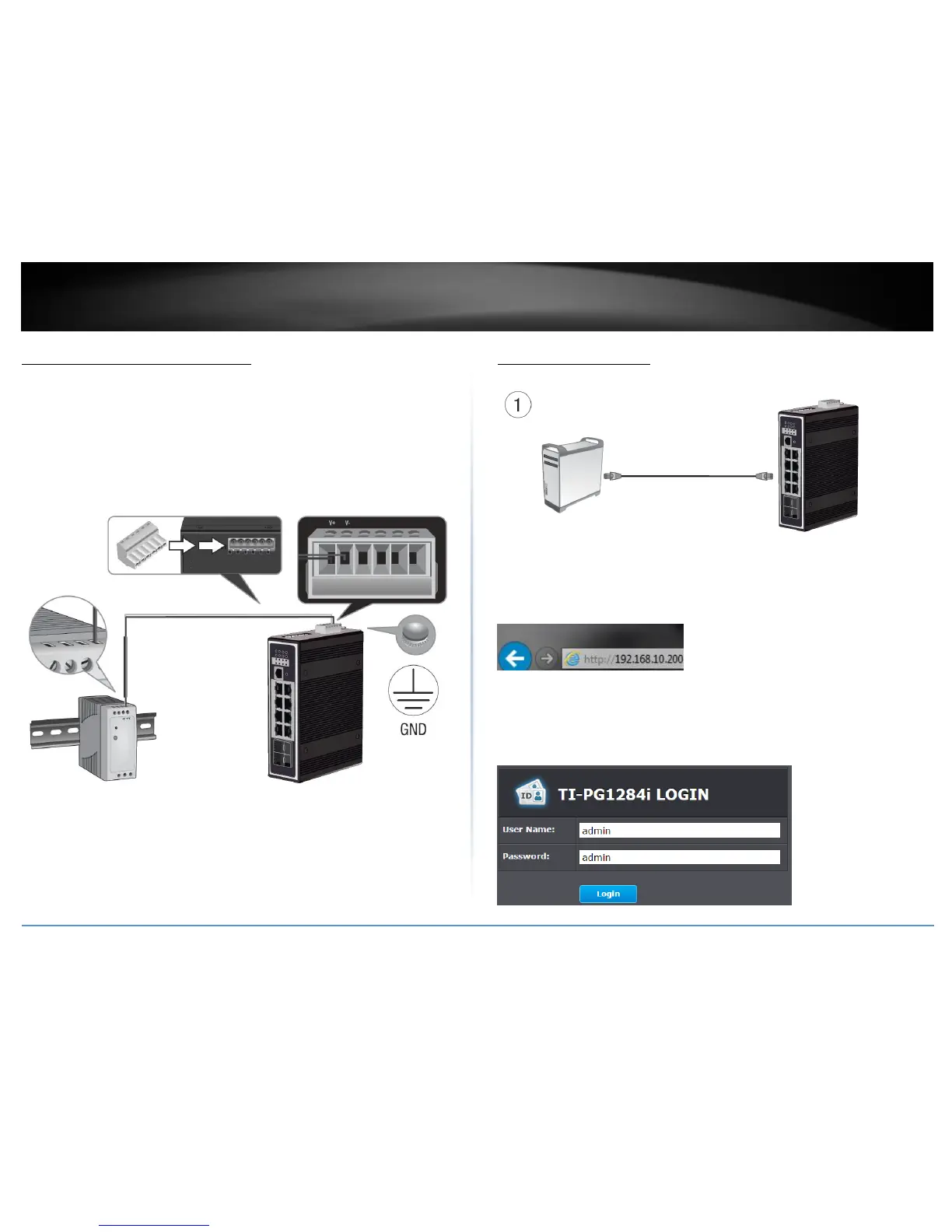

Install power supply connections
Connect the power supply (sold separate, e.g. TRENDnet TI-S24048) to the switch
terminal block as shown below.
Note: Polarities V+ and V- should match between power supply and connections to
switch terminal block.
Optional: The switch chassis can also be connected to a known ground point for
additional safety and protection (grounding wire not included).
Basic IP Configuration
2. Assign a static IP address to your computer’s network adapter in the subnet of
192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.
4. Open your web browser, and type the IP address of the switch in the address bar, and
then press Enter. The default IP address is 192.168.10.200.
5. Enter the User Name and Password, and then click Login. By default:
User Name: admin
Password: admin
Note: User name and password are case sensitive.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
