TRENDnet TI-PG1284i User Manual

© Copyright 2016 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TI-PG1284i
1

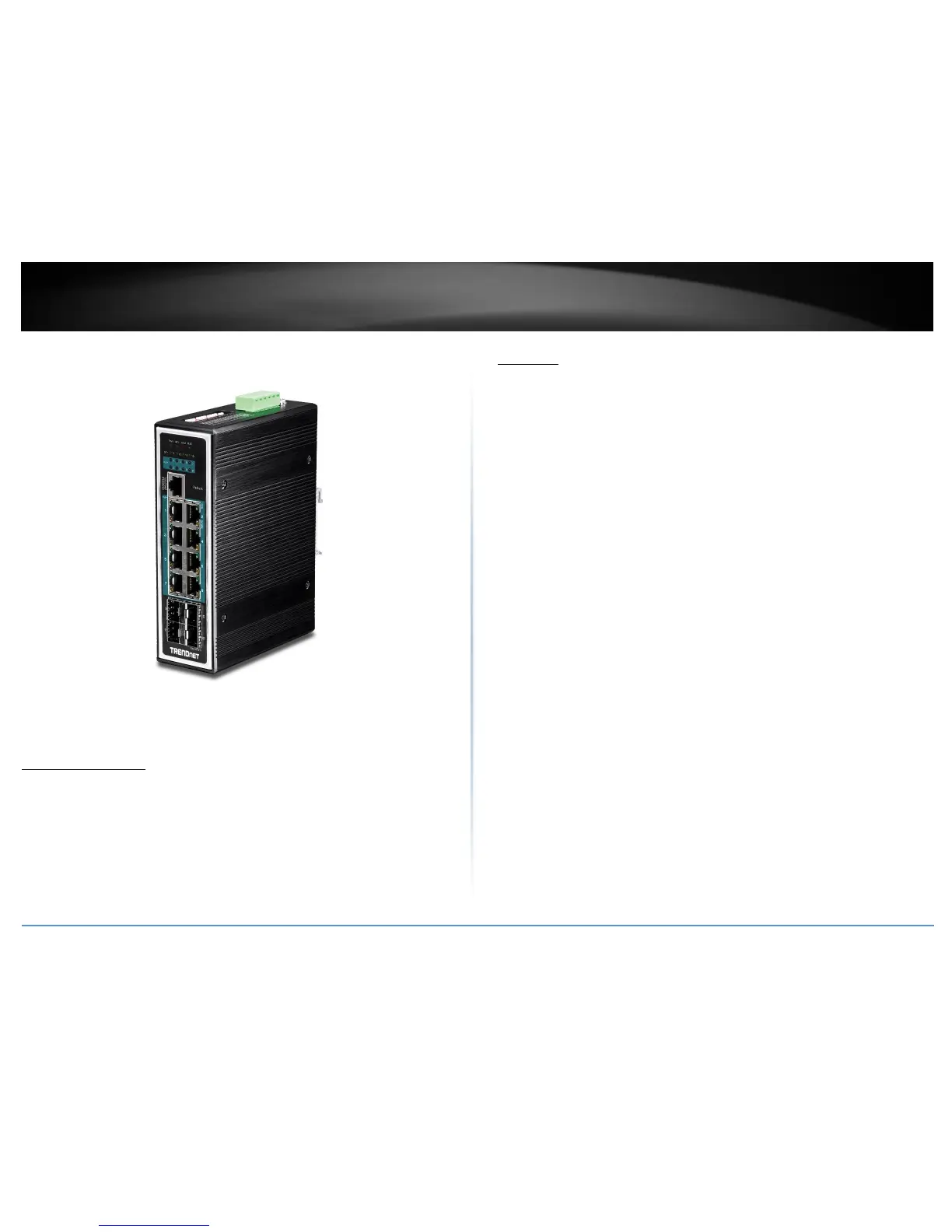

Product Overview
TI-PG1284i
Package Contents
In addition to your switch, the package includes:
 Quick Installation Guide
 CD-ROM (User’s Guide)
 RJ-45 to RS-232 console cable (1.8 m / 6 ft.)
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
Please note power supply is sold separately (model: TI-24048).
Features
TRENDnet’s 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail
Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a
240W PoE budget. The switch is equipped with an IP30 rated metal enclosure and
designed to withstand a high degree of vibration, shock, protection against
ESD/EMI/surge, and operate within a wide temperature range (- 40 – 75 °C (- 40 -
167°F)) for harsh environments. L2+ management include features such as PoE port
control, 802.1Q/Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4/IPv6
static routing, ACLs, and 802.1X which allow for network integration flexibility.
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree
of vibration, shock, protection against ESD/EMI/surge, and operate with a wide
temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP
snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network
integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources
and an output alarm relay to indicate the event of input power failure

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
