TRENDnet TI-PG1284i User Manual

© Copyright 2016 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TI-PG1284i
3

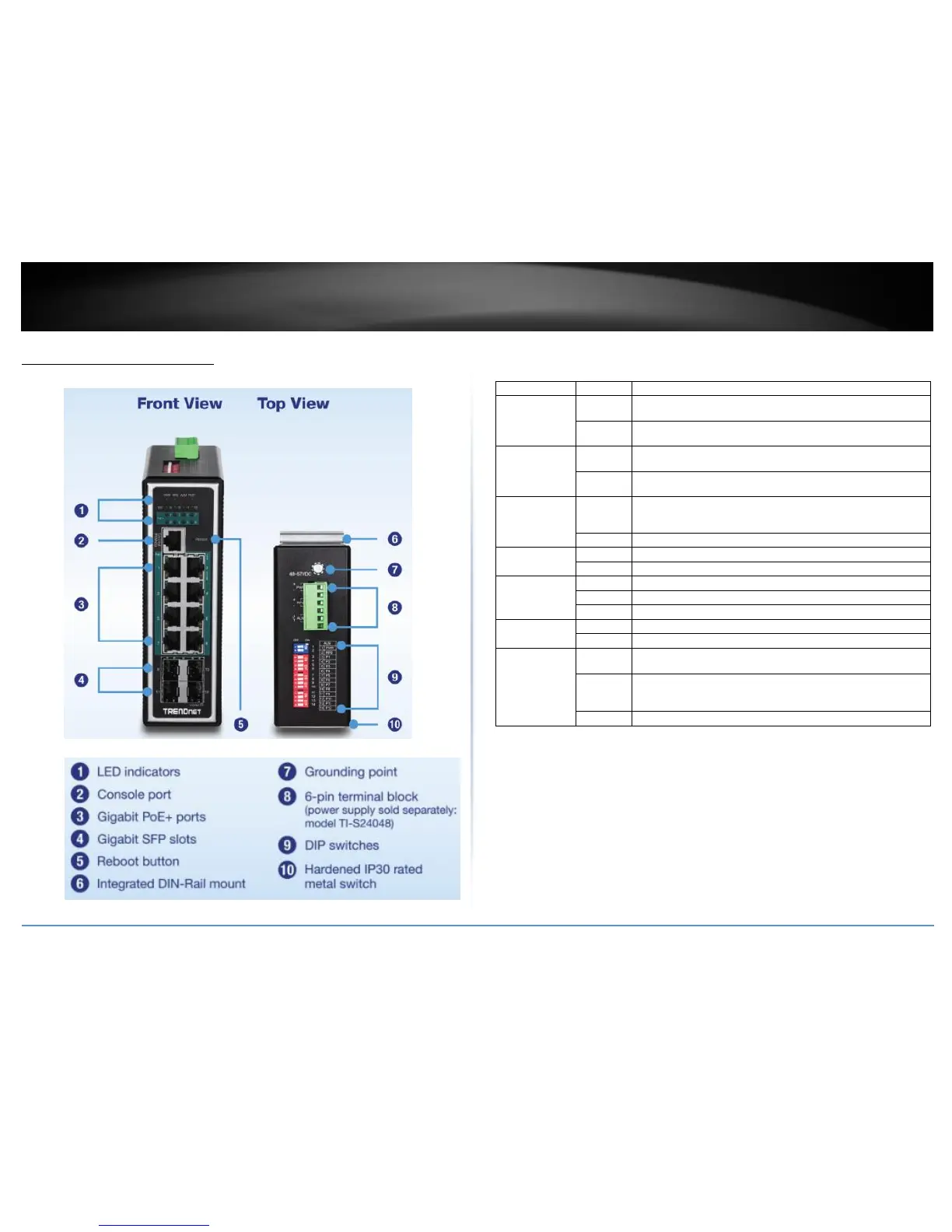

Product Hardware Features
LED Indicators
 Ports 1-8 – Designed to operate at 10Mbps, 100Mbps, or Gigabit speed in both
half-duplex and full-duplex transfer modes. Supports Auto MDI-X and capable
of delivering up to 30W (802.3at PoE+) per port.
 SFP Slots 9-12 – Designed to operate at Gigabit speeds.
 Reboot Button – Push the button and release to reboot the switch.
 Grounding point/screw – The switch chassis can also be connected to a known
ground point for additional safety and protection. (grounding wire not
included)
Note: For any unused ports or SFP slots, it is recommended to leave the rubber plugs
installed during operation.
LED
State
Status
PWR
(Green)
ON
When the PWR LED is on, the device is using the primary
power input source.
OFF
Primary power input source is off, disconnected, or has
failed.
RPS
(Green)
ON
When the RPS LED lights on, the device is using the
redundant power input source.
OFF
Redundant power input source is off, disconnected or has
failed.
ALM
(Red)
ON
Indicates alarm has been triggered on DIP switch settings and
signal sent out through ALM terminals on terminal block to
third party alarm device.
OFF
No alarm triggered.
POST
(Green)
ON
Device is ready and completed boot process.
OFF
Device is not ready.
SFP Slots 9-12
(Green)
ON
SFP link is connected.
BLINKING
Data is transmitting/receiving.
OFF
SFP link is disconnected.
PoE Ports 1-8
(Green)
ON
PoE supplied to Ethernet port.
OFF
No PoE supplied to Ethernet port.
Ports 1-8
1000M
(Green)
10/100M
(Orange)
ON
Ethernet port is connected.
BLINKING
Data is transmitting/receiving.
OFF
Ethernet port is not connected.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
