TRENDnet User’s Guide
TI-PG1284i
4

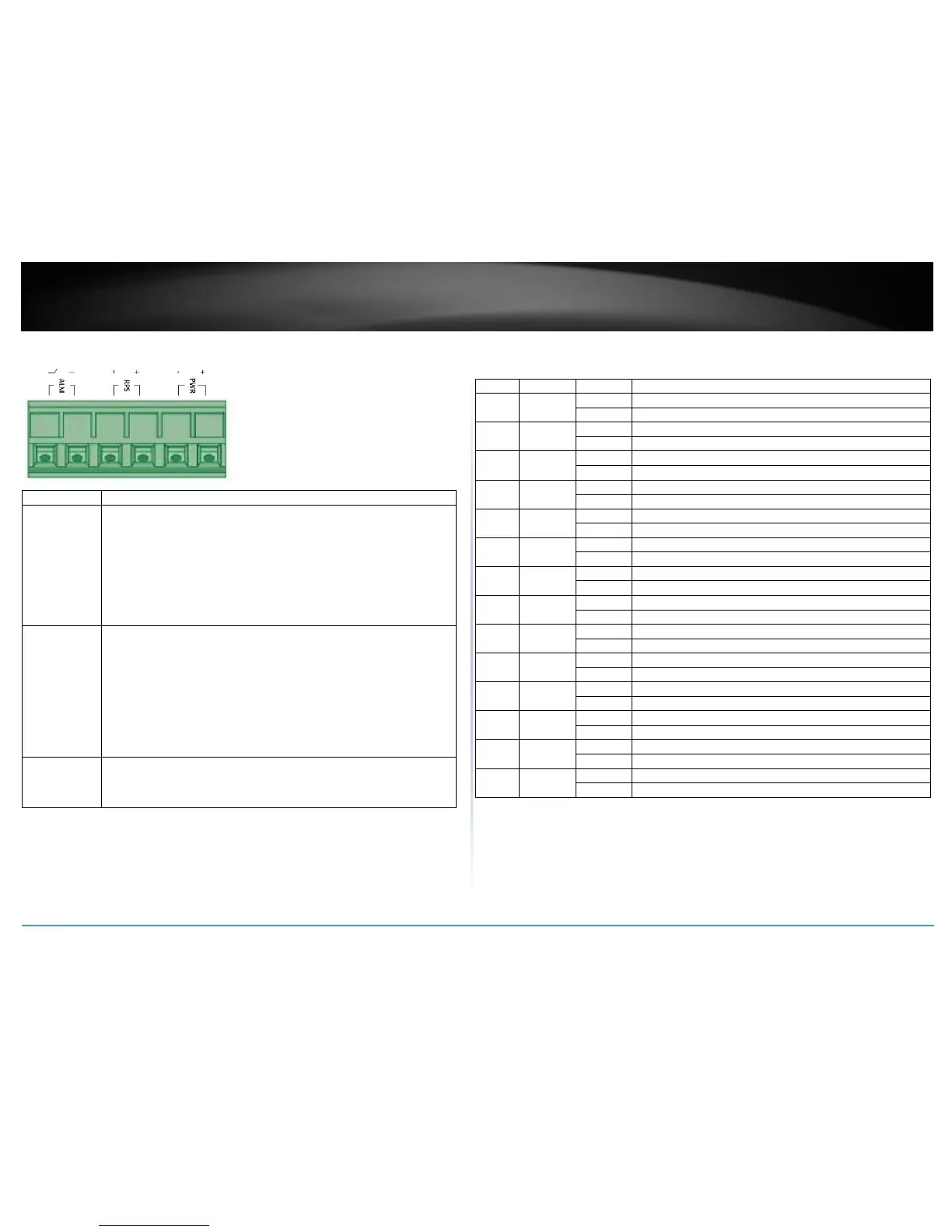

6-pin Removable Terminal Block
Note: Turn off the power before connecting modules or wires.
Calculate the maximum possible current in each power wire and common wire. Observe
all electrical codes dictating the maximum current allowable for each wire size. If current
go above the maximum ratings, the wiring could overheat, causing serious damage to
your equipment.
ALM DIP Switches
Input/Ouput
Function
PWR Input
(+) & (-)
Connects primary power source (ex. external power supply) to power the
device. Device will obtain power from this input first priority if available.
Please make sure to power supplies are turned off before wiring in.
Use a flat-head screw driver to loosen (counter-clockwise) or tighten
(clockwise) the wiring from the external power supply.
Please ensure that the external power supply is supplying within the
range of 48VDC ~ 57VDC @ 240W or above. 260W for max. PoE+ power.
Please note power supply is sold separately (model: TI-24048)
Device supports overload current protection and reverse polarity
protection.
RPS Input
(+) & (-)
Connects redundant power source (ex. external power supply) to power
the device. Device will obtain power from this input secondary priority if
primary power input is not available or has failed.
Please make sure to power supplies are turned off before wiring in.
Use a flat-head screw driver to loosen (counter-clockwise) or tighten
(clockwise) the wiring from the external power supply.
Please ensure that the external power supply is supplying within the
range of 48VDC ~ 57VDC @ 240W or above. 260W for max. PoE+ power.
Please note power supply is sold separately (model: TI-24048)
Device supports overload current protection and reverse polarity
protection.
ALM Output
Connects external alarm and sends output signal if fault is detected
based on DIP switch settings.
Supports an output with current carrying capacity of 1A @ 24V DC.
DIP No
Name
State
Status
1
PWR
ON
Primary power input source alarm trigger enabled.
OFF
Primary power input source alarm trigger disabled.
2
RPS
ON
Redundant power input source alarm trigger enabled.
OFF
Redundant power input source alarm trigger disabled.
3
P1
ON
Ethernet port 1 link alarm trigger enabled.
OFF
Ethernet port 1 link alarm trigger disabled.
4
P2
ON
Ethernet port 2 link alarm trigger enabled.
OFF
Ethernet port 2 link alarm trigger disabled.
5
P3
ON
Ethernet port 3 link alarm trigger enabled.
OFF
Ethernet port 3 link alarm trigger disabled.
6
P4
ON
Ethernet port 4 link alarm trigger enabled.
OFF
Ethernet port 4 link alarm trigger disabled.
7
P5
ON
Ethernet port 5 link alarm trigger enabled.
OFF
Ethernet port 5 link alarm trigger disabled.
8
P6
ON
Ethernet port 6 link alarm trigger enabled.
OFF
Ethernet port 6 link alarm trigger disabled.
9
P7
ON
Ethernet port 7 link alarm trigger enabled.
OFF
Ethernet port 7 link alarm trigger disabled.
10
P8
ON
Ethernet port 8 link alarm trigger enabled.
OFF
Ethernet port 8 link alarm trigger disabled.
11
P9
ON
SFP slot 9 link alarm trigger enabled.
OFF
SFP slot 9 link alarm trigger disabled.
12
P10
ON
SFP slot 10 link alarm trigger enabled.
OFF
SFP slot 10 link alarm trigger disabled.
13
P11
ON
SFP slot 11 link alarm trigger enabled.
OFF
SFP slot 11 link alarm trigger disabled.
14
P12
ON
SFP slot 12 link alarm trigger enabled.
OFF
SFP slot 12 link alarm trigger disabled.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
