TRENDnet TI-PG1284i User Manual

© Copyright 2016 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TI-PG1284i
22
Apply
Click this button to take effect the settings.
Refresh
Click this button to begin configuring this screen afresh.
Management Host List
No.
This field displays a sequential number for each management
host.
Management
Host
This field displays the management host.
Action
Click the Delete button to remove the specified entry.
MAC Management
Dynamic Address:
The MAC addresses are learnt by the switch. When the switch receives frames, it will
record the source MAC, the received port and the VLAN in the address table with an age
time. When the age time is expired, the address entry will be removed from the address
table.
Static Address:
The MAC addresses are configured by users. The static addresses will not be aged out by
the switch; it can be removed by user only. The maximum static address entry is up to
256.
The MAC Table (a MAC table is also known as a filtering database) shows how frames are
forwarded or filtered across the Switch’s ports. When a device (which may belong to a
VLAN group) sends a packet which is forwarded to a port on the Switch, the MAC address
of the device is shown on the Switch’s MAC Table. It also shows whether the MAC address
is dynamic (learned by the Switch) or static (manually entered).
The Switch uses the MAC Table to determine how to forward frames. See the following
figure.
1. The Switch examines the received frame and learns the port from which this
source MAC address came.
2. The Switch checks to see if the frame's destination MAC address matches a
source MAC address already learnt in the MAC Table.
 If the Switch has already learnt the port for this MAC address, then it
forwards the frame to that port.
 If the Switch has not already learnt the port for this MAC address, then
the frame is flooded to all ports. If too much port flooding, it may lead
to network congestion.
 If the Switch has already learnt the port for this MAC address, but the
destination port is the same as the port it came in on, then it filters the
frame.

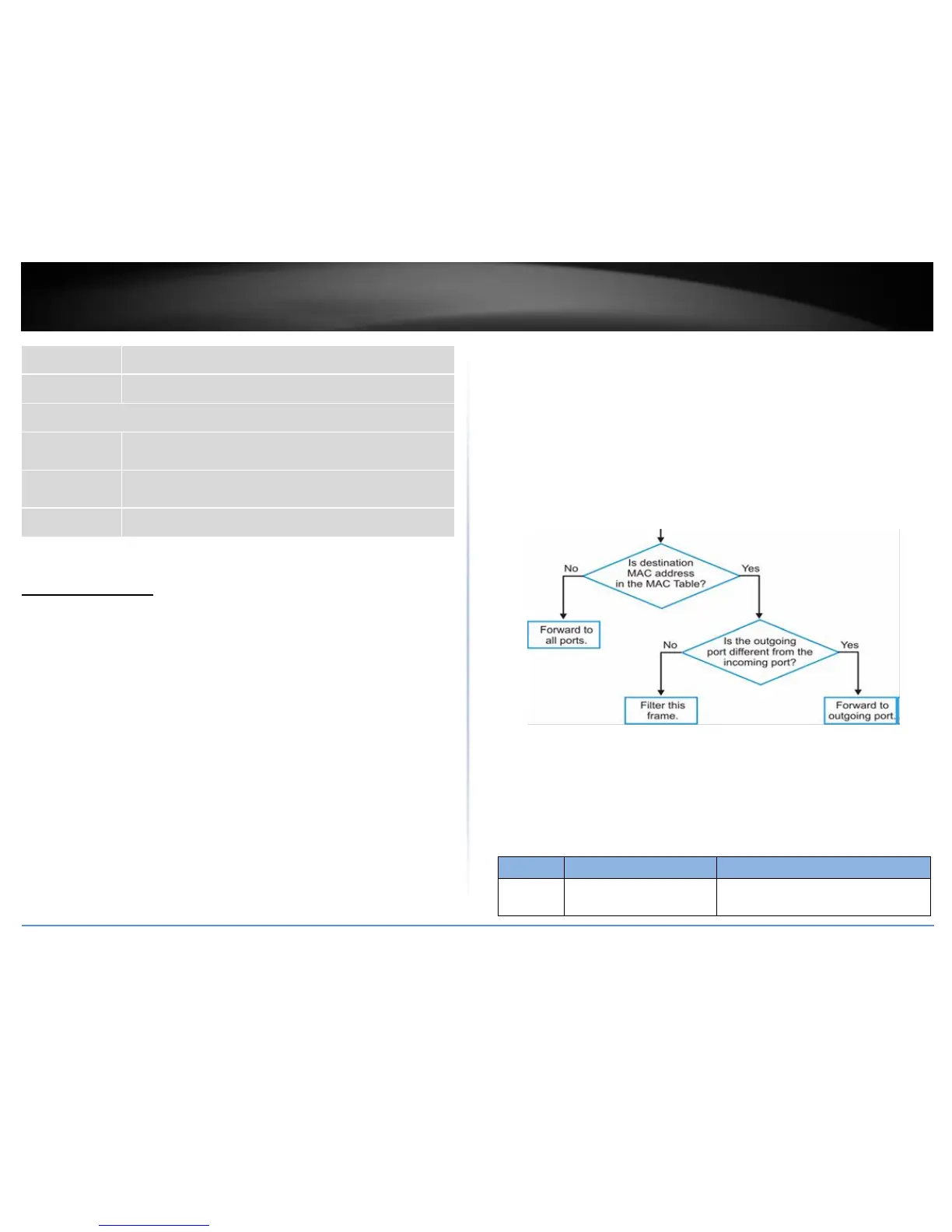

Figure MAC Table Flowchart
Default Settings
The default MAC address table age time is 300 seconds.
The Maximum static address entry is 256.
Static MAC Settings
CLI Configuration
Node
Command
Description
enable
show mac-address-table
aging-time
This command displays the current MAC
address table age time.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
