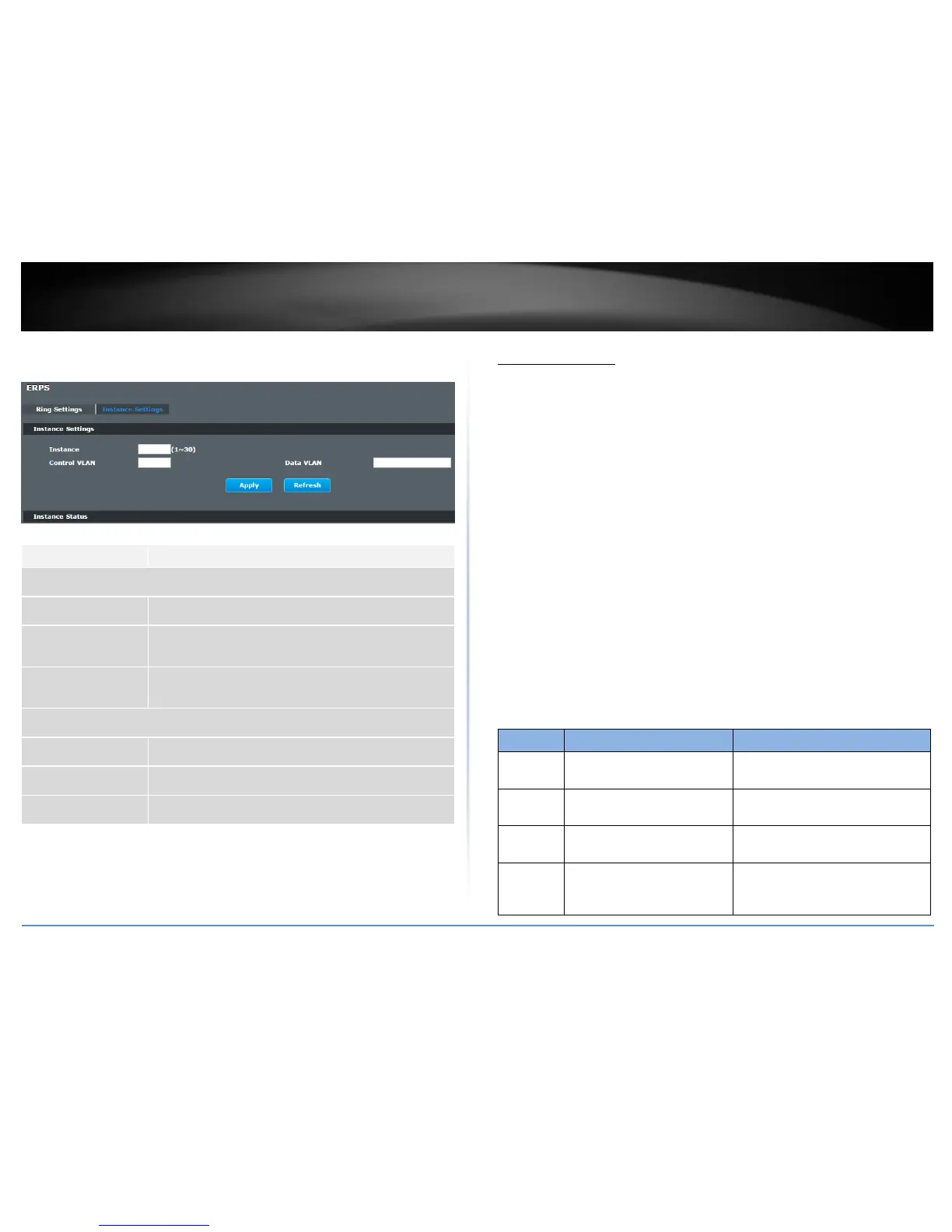

Instance Settings
Advanced Settings > ERPS > Instance Settings
Parameter
Description
Instance Settings
Instance
Configures the instance ID. The valid value is from 1 to 31.
Control VLAN
Configures the control vlan for the instance. The valid value
is from 1 to 4094.
Data VLAN
Configures the data vlan for the instance. The valid value is
from 1 to 4094. It can be one or multiple vlans.
Instance Status
Instance
The instance ID.
Control VLAN
The control vlan of the instance.
Data VLAN
The data vlan of the instance.
Link Aggregation
Static Trunk
Link Aggregation (Trunking) is the grouping of physical ports into one logical higher-
capacity link. You may want to trunk ports if for example, it is cheaper to use multiple
lower-speed links than to under-utilize a high-speed, but more costly, single-port link.
However, the more ports you aggregate then the fewer available ports you have. A trunk
group is one logical link containing multiple ports. The Switch supports both static and
dynamic link aggregation.
Note: In a properly planned network, it is recommended to implement static link
aggregation only. This ensures increased network stability and control over the trunk
groups on your Switch.
Default Settings
The default group Link Aggregation state is disabled for all groups.
The default group Link Aggregation load balance is source MAC and destination
MAC for all groups.
Maximum link aggregation group: 6
Maximum port in link aggregation group: 8
CLI Configuration
Node
Command
Description
enable
show link-aggregation
The command displays the current
trunk configurations.
configure
link-aggregation [GROUP_ID]
(disable | enable)
The command disables / enables the
trunk on the specific trunk group.
configure
link-aggregation [GROUP_ID]
interface PORTLISTS
The command adds ports to a
specific trunk group.
configure
no link-aggregation
[GROUP_ID] interface
PORTLISTS
The commands delete ports from a
specific trunk group.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
