Switch Installation
DIN-Rail Installation
The site where the switch will be installed may greatly affect its performance. When
installing, consider the following pointers:
Note: The switch model may be different than the one shown in the example
illustrations.
 Install the switch in the appropriate location. Please refer to the technical
specifications at the end of this manual for the acceptable operating temperature
and humidity ranges.
 Install the Switch in a site free from strong electromagnetic field generators (such
as motors), vibration, dust, and direct exposure to sunlight.
 Install the switch in a location that is not affected by strong electromagnetic field
generators (such as motors), vibration, dust, and direct sunlight.
 Leave at least 10cm of space at the front and rear of the switch for ventilation.
Fasten the DIN-Rail bracket to the rear of the switch using the included
fasteners/screws.
Note: The DIN-Rail bracket may already be installed to your switch when received.
The movable clip at the top of the DIN-Rail bracket should be on top.
The switch can be installed to a 35mm (W) DIN-Rail located in cabinet, rack, or
enclosure.

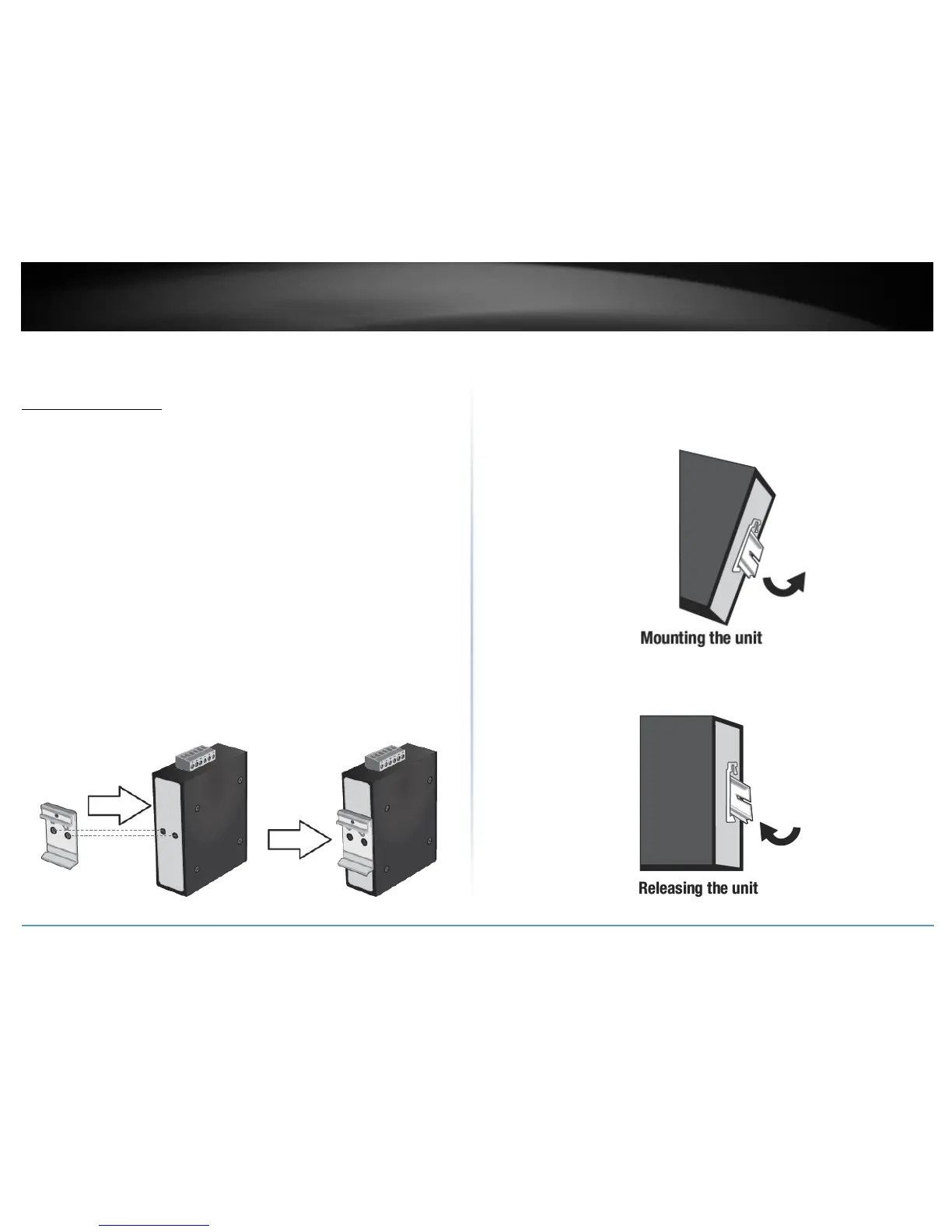

To mount the switch to a DIN-Rail using the attached DIN-Rail bracket, position the
switch in front of the DIN-Rail and hook the bracket over the top of the rail.
Then rotate the switch downward towards the rail until your hear a click indicating the
bracket is secure and locked into place.
To unmount the switch from the DIN-Rail, slightly pull the switch downwards to clear
the bottom of the DIN-Rail and rotate away from DIN-Rail to unmount.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
