1.0V IN 1.009 1.009 1.009 +/-5% Normal
1.8V IN 1.768 1.778 1.755 +/-5% Normal
3.3V IN 3.264 3.264 3.259 +/-5% Normal

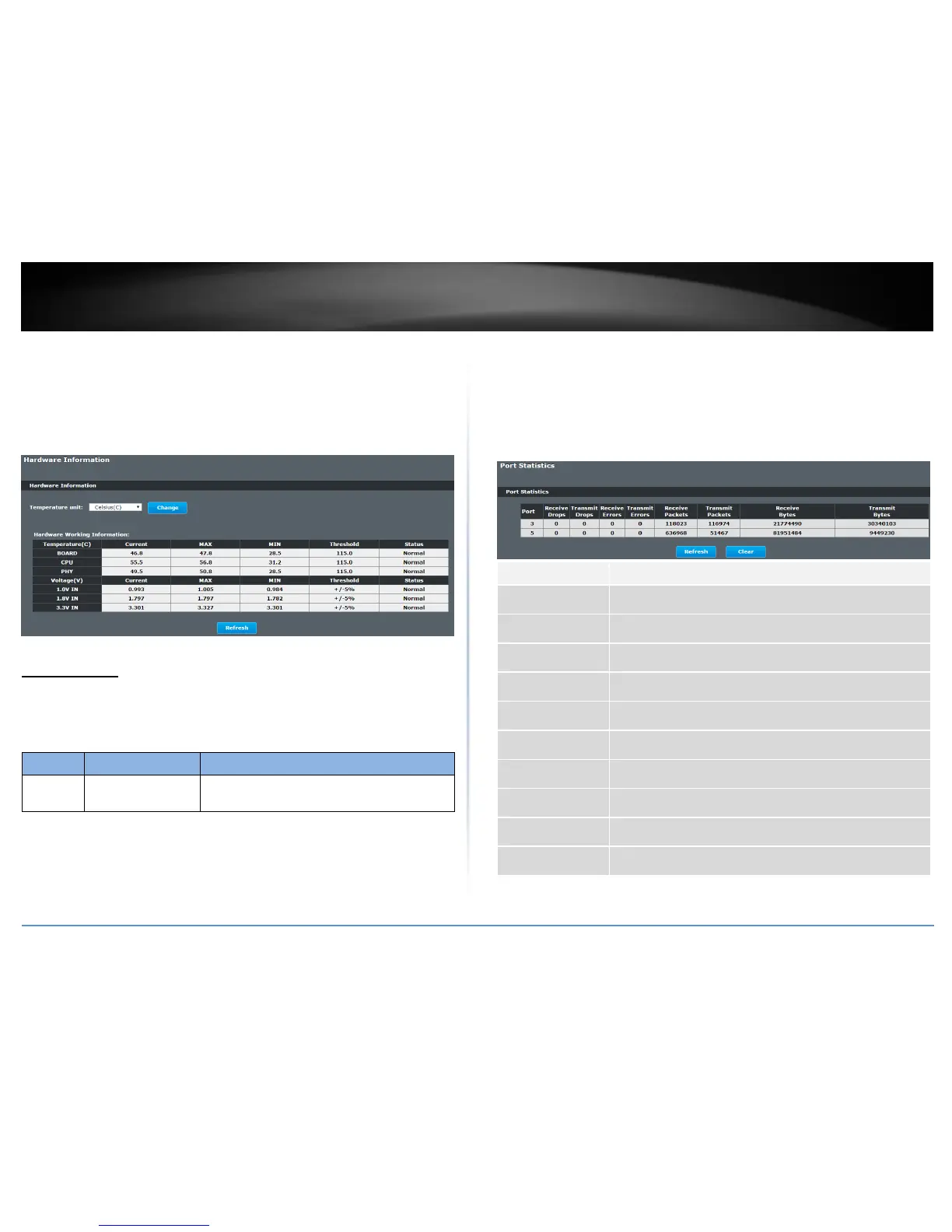

Web Configuration
Monitor > Hardware Information
Port Statistics
This feature helps users to monitor the ports’ statistics, to display the link up ports’ traffic
utilization only.
CLI Configuration
Node
Command
Description
enable
show port-statistics
This command displays the link up ports’
statistics.
Example:
TI-PG1284I#show port-statistics
Packets Bytes Errors Drops
Port Rx Tx Rx Tx Rx Tx Rx Tx
---- -------- -------- -------- -------- -------- -------- -------- --------
7 1154 2 108519 1188 0 0 0 0
Web Configuration
Monitor > Port Statistics
Parameter
Description
Port
Select a port or a range of ports to display their statistics.
Rx Packets
The field displays the received packet count.
Tx Packets
The field displays the transmitted packet count.
Rx Bytes
The field displays the received byte count.
Tx Bytes
The field displays the transmitted byte count.
Rx Errors
The field displays the received error count.
Tx Errors
The field displays the transmitted error count.
Rx Drops
The field displays the received drop count.
Tx Drops
The field displays the transmitted drop count.
Refresh
Click this button to refresh the screen quickly.

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
