1.7 (A) EXTERIOR FEATURE IDENTIFICATION - TRAILER MODEL
Composite model shown for illustration purposes only. Actual locations of features depends on trailer
model and options.
*CAUTION
Be careful. These features may
become hot while water heater or
furnace are in use.
NOTE
Some equipment shown may be
optional.

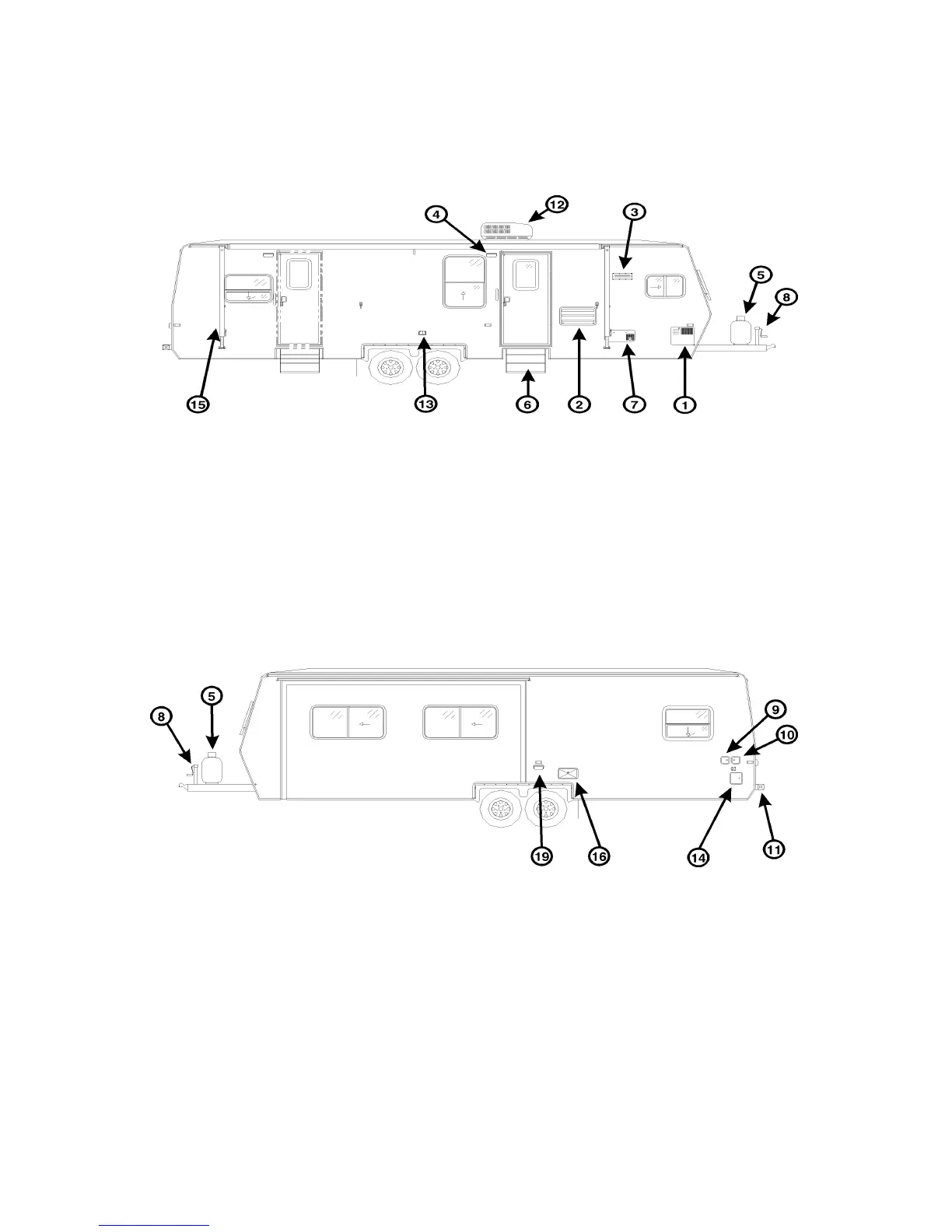

Fig. 1-6 EXTERIOR IDENTIFICATION - TRAVEL TRAILER ONLY (LEFT)
Fig. 1-5 EXTERIOR IDENTIFICATION - TRAVEL TRAILER ONLY (RIGHT)
1. Water Heater Service Access.
2. Refrigerator Service Access.
3. Range Hood Vent.
4. Porch Light.
5. Propane Tank.
6. Entrance Step.
7. Furnace Service Access Panel*.
8. Hitch Jack.
9. Fresh Water Filler.
10. City Water Connection
11. Sewer Hose Storage.
12. Roof Air Conditioner.
13. Exterior 120v Receptacle.
14. Shore Power Hook-Up.
15. Awning.
16. Exterior Shower.
