11-1
11 WATER/PLUMBING SYSTEM
Your trailer is designed with fresh water, grey water,
black water tanks and associated plumbing to
handle all of the water and waste requirements.
Review this section carefully to understand each
system and how they function together.
11.1 FRESH WATER SYSTEM
There are two sources for fresh water in your trailer:
1. A water tank located within your trailer.
2. By connecting to “city water” by means of a
water hose.
Both can supply water to the sink, shower, bath-
room toilet and the water heater.
The water system built into your trailer provides full
service similar to the system used in your home. A
12-volt self-priming pump draws water from the
fresh water storage tank to all cold faucets and the
water heater. An automatic pressure switch,
located in the water pump maintains a positive line
pressure.
TOPAZ

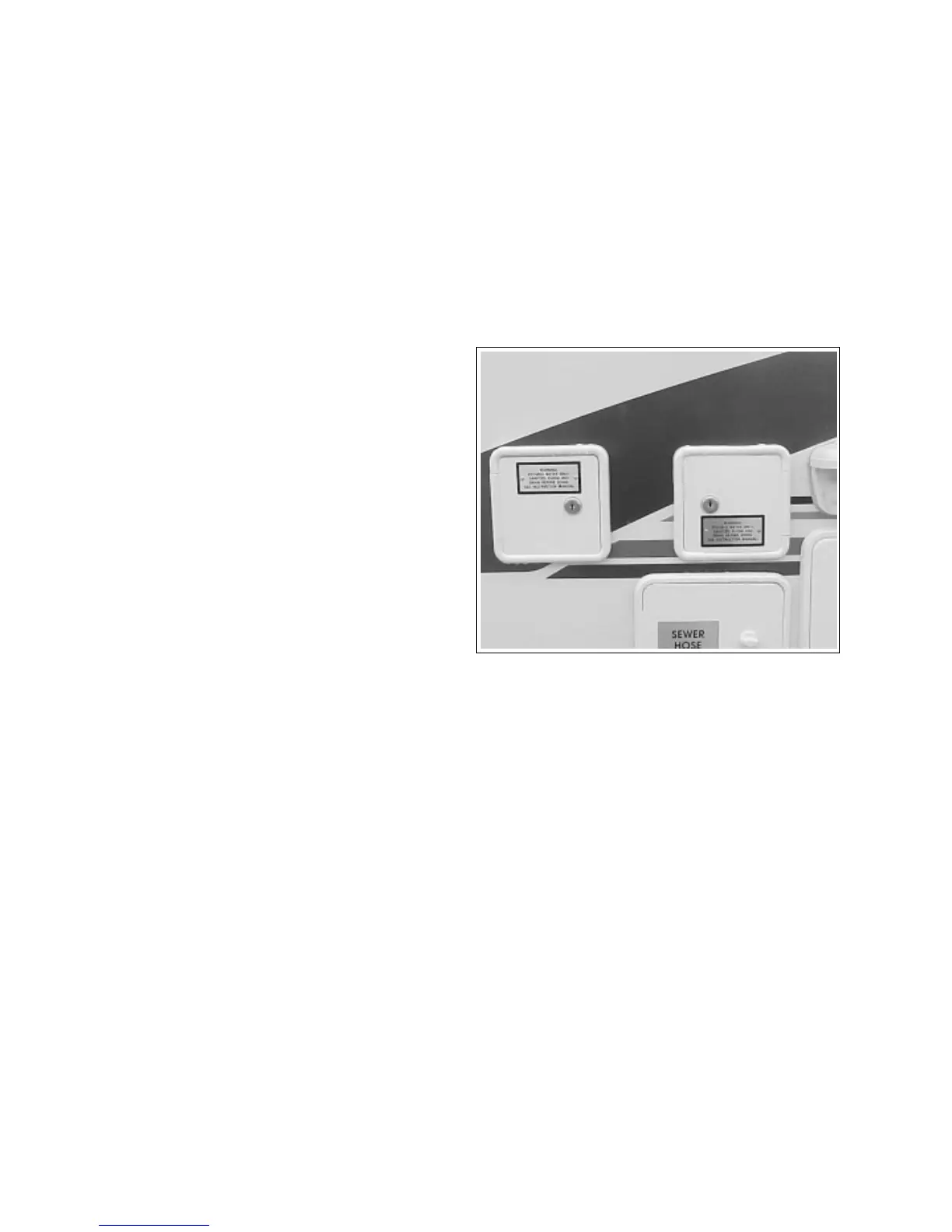

Fig. 11-1 WATER SYSTEM INTAKES
