6.5 COMFORT CONTROL CENTER
(WITH AIR CONDITIONER OPTION)
A comfort control center is located in the trailer
(living area or bedroom) to control the heating and
cooling systems in the vehicle. The control center
is customized to the specifications of your vehicle
and will control the furnace and air conditioner.
Review the operator's manual in the information
package for detailed operating instructions. The
control functions include:
1. Mode Switch:
This 3 position sliding switch sets the operating
mode for the comfort appliances. Move the
switch fully up to operate the cooling (air
conditioner) system and fully down for heating
(furnace) system. Place the switch in the
centre to turn off.
2. Fan Switch:
This 2 position sliding switch sets the operating
mode for the fan. Move the switch up to turn
the fan on and down to set it in the automatic
mode. In the automatic mode, the fan will run
whenever one of the comfort appliances is
operating.
3. Fan Speed:
This 2 position sliding switch sets the operating
speed of the fan. Move the switch down for low
speed and up for high speed.
4. Thermostat:
This sliding switch sets the ambient tempera-
ture for the comfort appliances. Slide the
switch to the desired temperature.

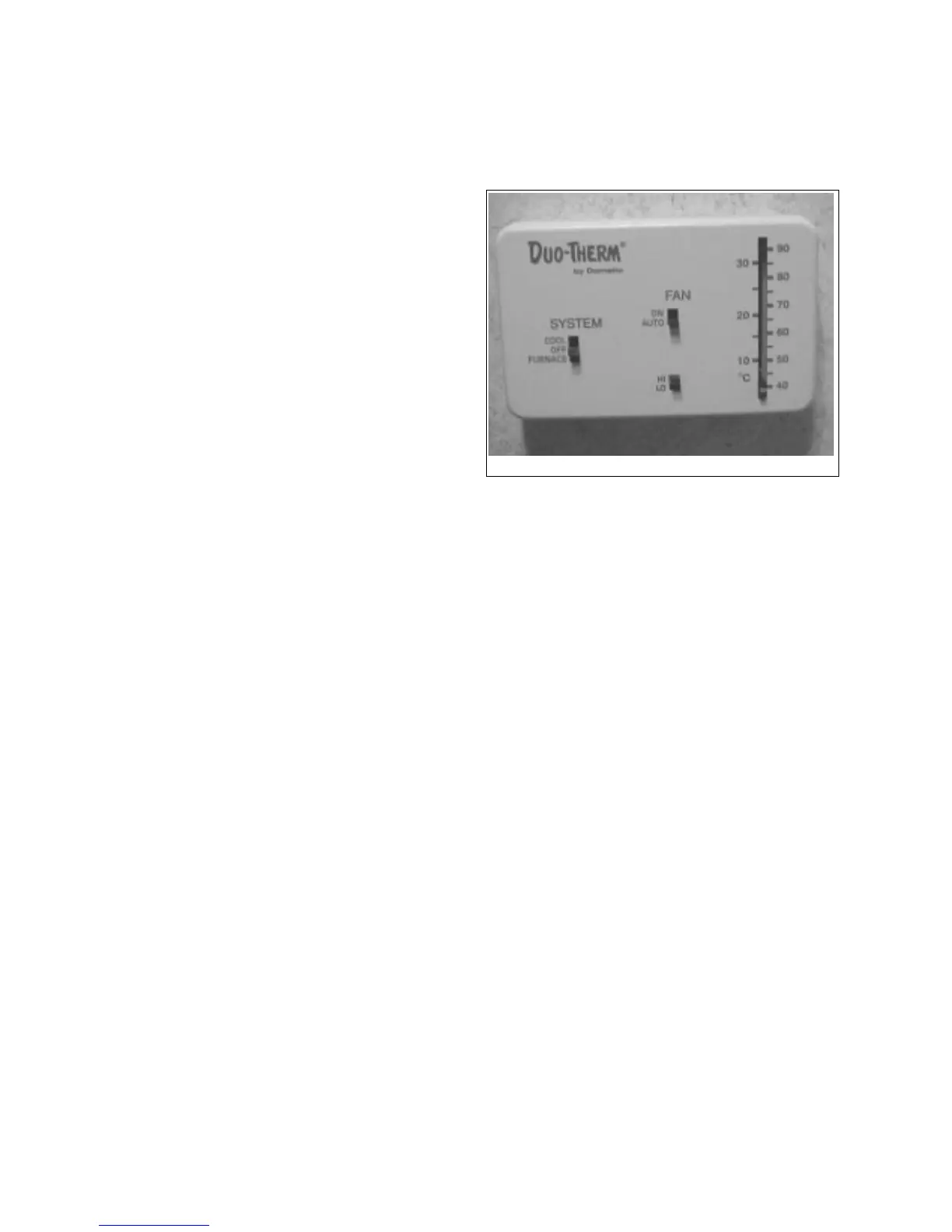

Fig. 6-5 COMFORT CONTROL CENTER
