6-9
TOPAZ
6.8.3 WATER PUMP
The water system is equipped with a 12 volt pump
that pressurizes the system and moves water to
where it is required. A master switch is located on
the system monitor panel to turn the pump on or
off as desired. In addition, the trailer can be
equipped with optional auxiliary switches in the
kitchen and bathroom.
Depress the switch once to turn the pump on and
again to turn it off. Turn the pump on for only as
long as required and then turn off to conserve
battery power.
Switch locations:
1. Master ON/OFF:
This switch is located on the system monitor
panel in the kitchen. The switch, (red indica-
tor light) will come on when this master switch
is on. This switch must be turned on for any
of the other auxiliary switches to work.

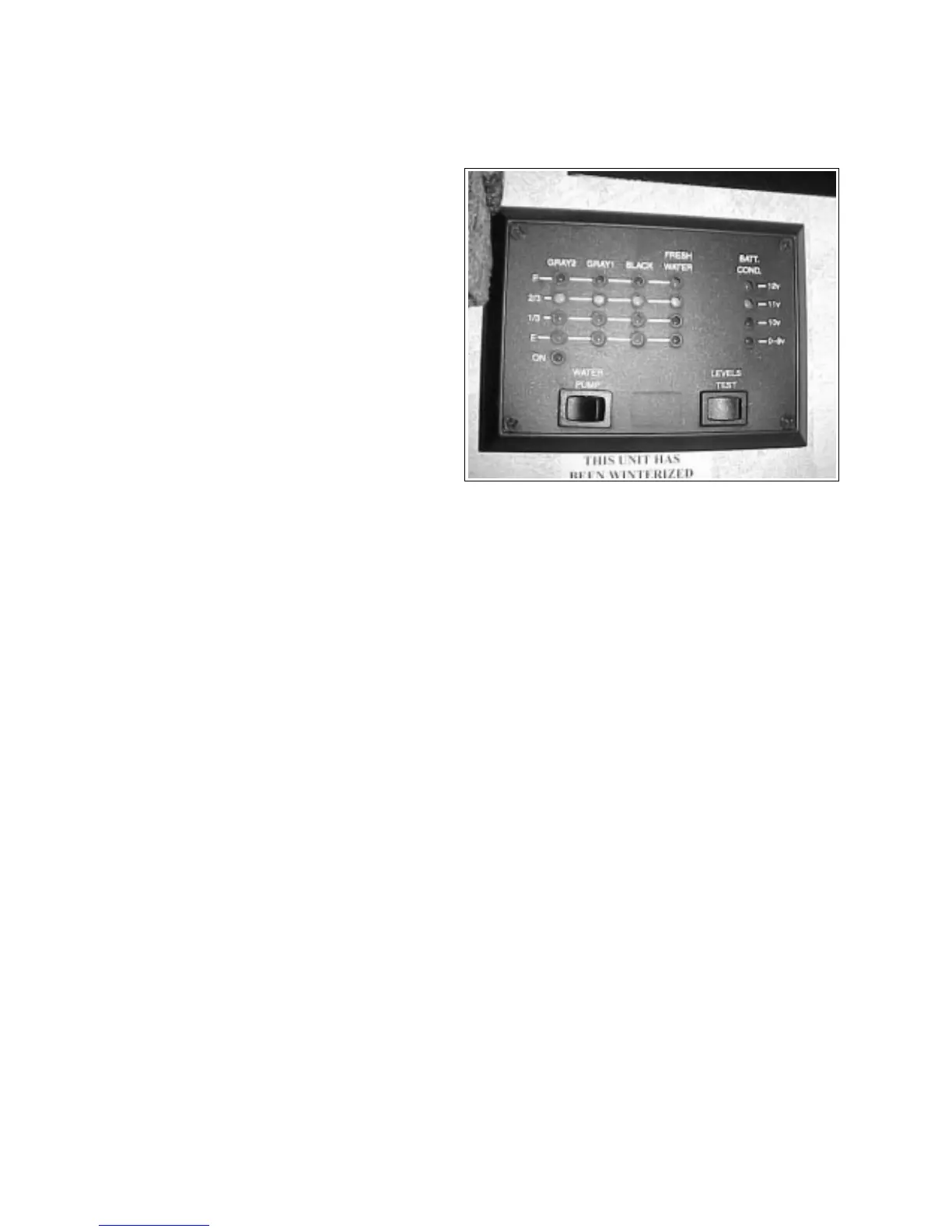

Fig. 6-11 WATER PUMP SWITCHES
