7-6
TOPAZ
7.3.2 SLIDE OUT ROOM EMERGENCY OPERATION
The slide out room can be manually retracted in
case of system failure. Refer to slide out
systems manual for manual retraction.

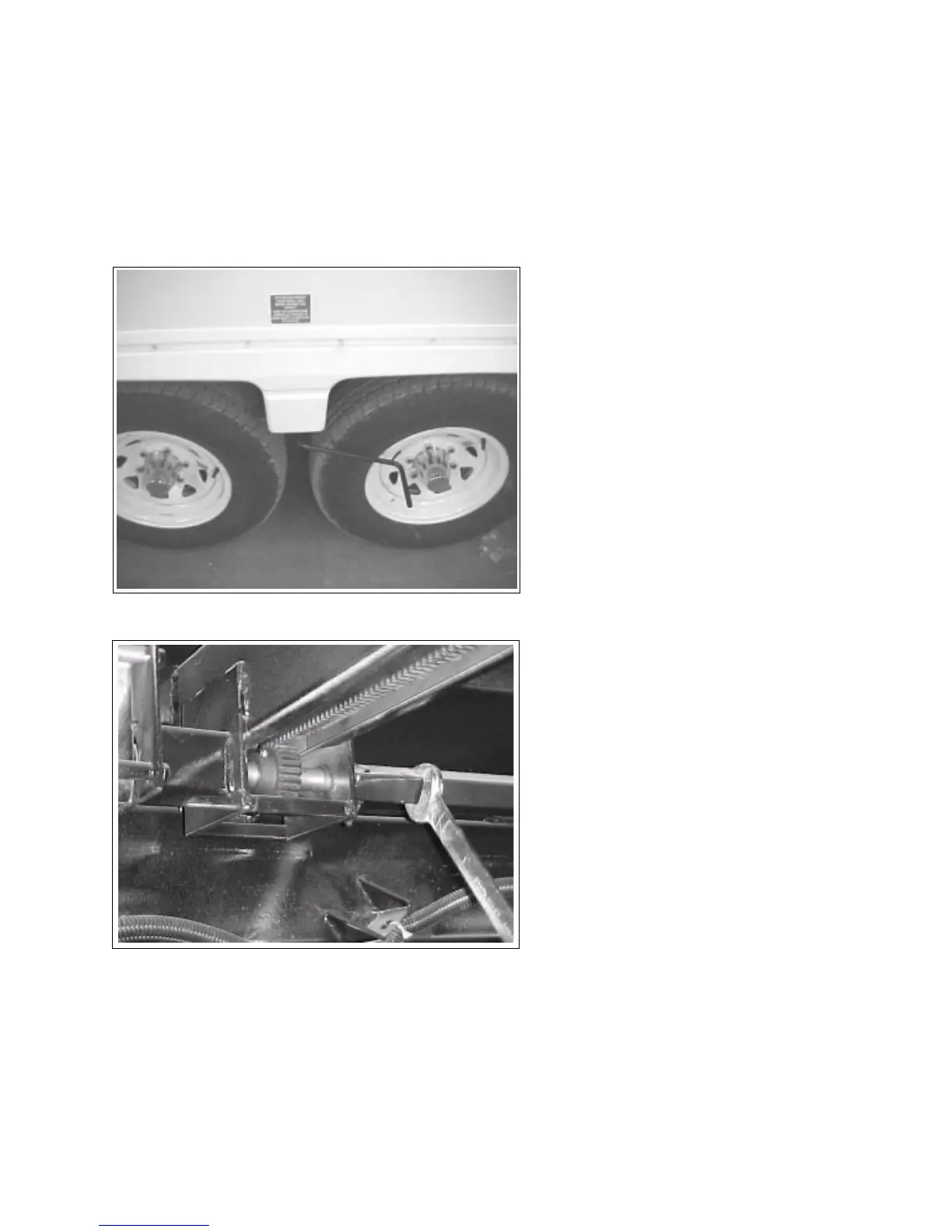

Fig. 7-9 FULL SLIDE MODEL USING MANUAL CRANK
Fig. 7-10 SINGLE SLIDE MODEL USING 1" WRENCH
