7-5
TOPAZ
IMPORTANT
The screw shaft that extend/
retract the slide-out are run by
a 12-volt motor. When operat-
ing the slide-out, make sure
the batteries are fully charged.

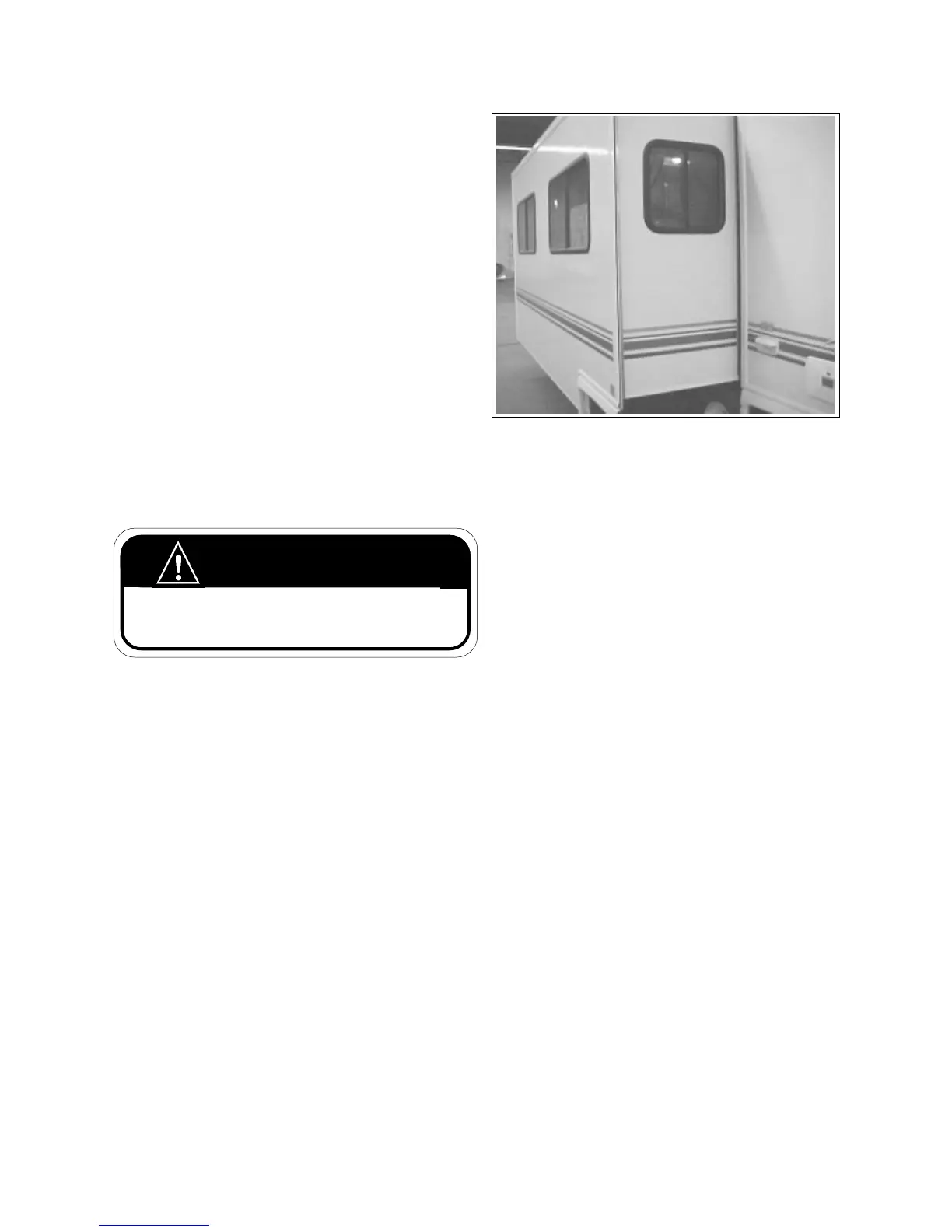

Fig. 7-6 ROOM EXTENDED
3. To Extend:
Turn the key switch to “on’, press and hold the
control switch until room is fully extended.
Make sure it is fully extended so that all
weather seals will be in their proper alignment.
Release the control switch and turn the key
switch to “off” when the room is fully extended.
5. Set-Up:
Service by a professional, adjustments,
regular maintenance and replacement of
weather seals as needed will extend the life
and comfort of your slide-out unit.
6. Seals:
Cracked and worn weather seals may allow
moisture and dirt to enter your trailer and
cause premature deterioration of the interior.
Check the seals carefully in fall and in spring
and have them replaced if necessary.
Extensive travel and use in severe weather
conditions may cause a more rapid
deterioration of some components, especially
weather seals.
CAUTION
Never move your trailer with
the slide-out extended.
Severe damage could result.
Before moving the trailer, the
slide-out must be securely
retracted and all travel locks
fastened.
4. To Retract:
Be sure that there are no obstructions inside or
outside the trailer that would prevent easy
operation. Turn the key switch to “on”, press
and hold the control switch until the room is
back in place. Install the travel locks and
prepare the rest of the trailer for travel. Turn
key switch on the slide out control to the “off”
position and remove the key.
NOTE
The system has an internal
lead sensing capability that
stops the motor when the
slide-out is full in or out.
Make very sure that everyone is standing clear of
the interior and exterior path of the slide-out as
you extend or retract it.
WARNING
