6-2
TOPAZ
6.3 REFRIGERATOR
The refrigerator control panel is located directly
above the unit and includes switches and
several indicator lights.
1. Master ON/OFF Switch:
This latching push button switch controls
the power to the refrigerator. Depress the
switch and it will latch in the depressed
position for the power to be on. Depress
the switch again to unlatch it and turn the
power off. The switch will be in its up
position.

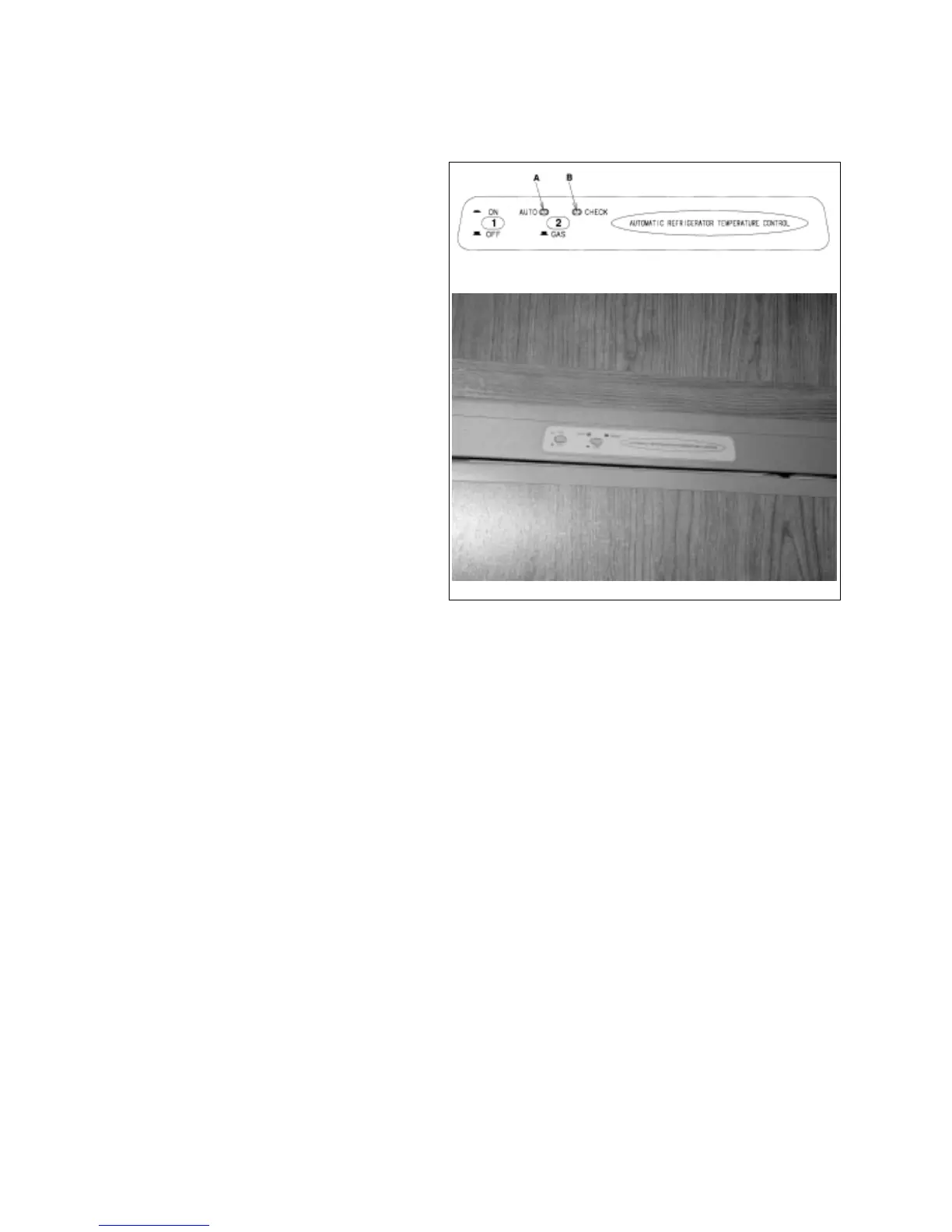

Schematic
Panel
Fig. 6-3 REFRIGERATOR CONTROL PANEL
IMPORTANT
The control panel operates on
12 volt DC power. This re-
quires the trailer battery to be
at full charge for proper control.
2. Mode Selector Switch:
This push button switch selects which
power source will be used to operate the
refrigerator. Depress the switch once to
select the AUTO mode and the AUTO
indicator light will be lit.
a. If 120 volt power is available, the AC circuit
will operate the refrigerator.
b. If 120 volt power is not available, the GAS
indicator light will come on and the LP gas
system will power the refrigerator.
IMPORTANT
If the CHECK indicator light comes
on and the GAS indicator light
doesn't come on, the burner has
failed to ignite, turn the system off
and then on again to light the
burner.
Depress the switch again to select the GAS mode
and the LP gas system will provide power to the
refrigerator. The GAS indicator light will come on.
Refer to IMPORTANT above if the CHECK indicator
light comes on.
Refer to the refrigerator operator's manual in the
information package for more detailed instructions.
