BATTERY CONDITION METER

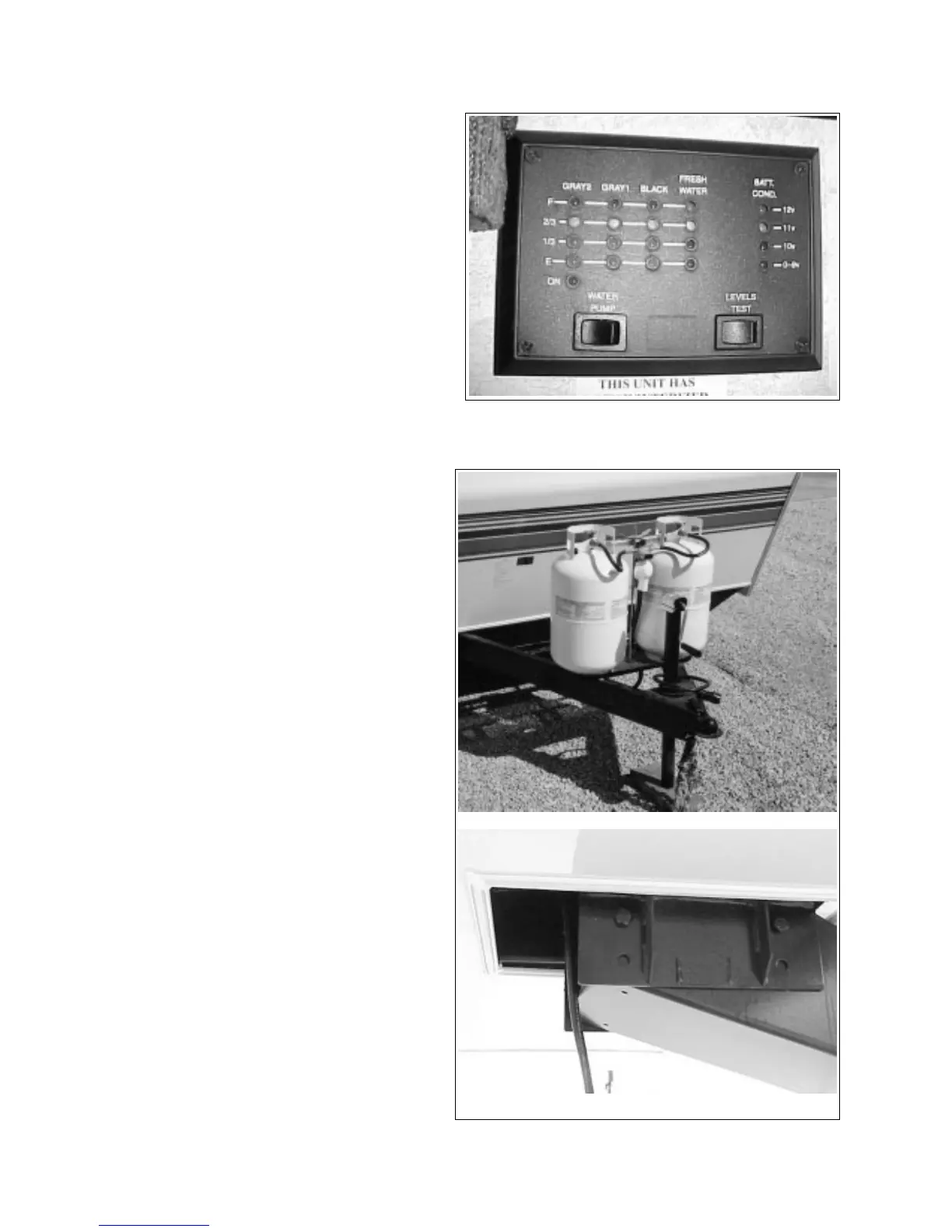

On your control panel you will find a gauge which
tells you the level of charge in your trailer battery.
TOPAZ
Fig. 9-7 WIRING HARNESS
Trailer
Fig. 9-6 BATTERY CONDITION METER
9.3 TRAILER WIRING CONNECTOR
Your trailer is ready for towing. It has a wiring
connector plug at the front for quick hook-up.
Refer to the labeled diagram (Refer to Section 4.5
for plug wiring diagram) of the various terminals in
the plug. These are standard for all 7-pin trailer
plugs.
