2. Rotating the Antenna:
After antenna is in the up position, grasp the
crank handle mounting plate on both sides and
pull down. Rotate the antenna to a desired
position for best reception.
3. Lowering the Antenna:
Rotate the antenna until the pointer on the
rotating knob and the ceiling plate align. Pull
down on handle assembly and turn the crank in
the down (counterclockwise) direction until
some resistance is noticed. The antenna is
now locked in the travel position. As a reminder
for future reference, count the number of turns
required to raise and lower the antenna.
Normally this will be about 13.
4. Turn amplifier power switch off.
CAUTION
Make sure antenna is always lowered
completely in the travel position.
Leaving the antenna in a partially
raised position during travel can
damage the gear mechanism.
Always align the directional handle
to down before lowering the antenna.

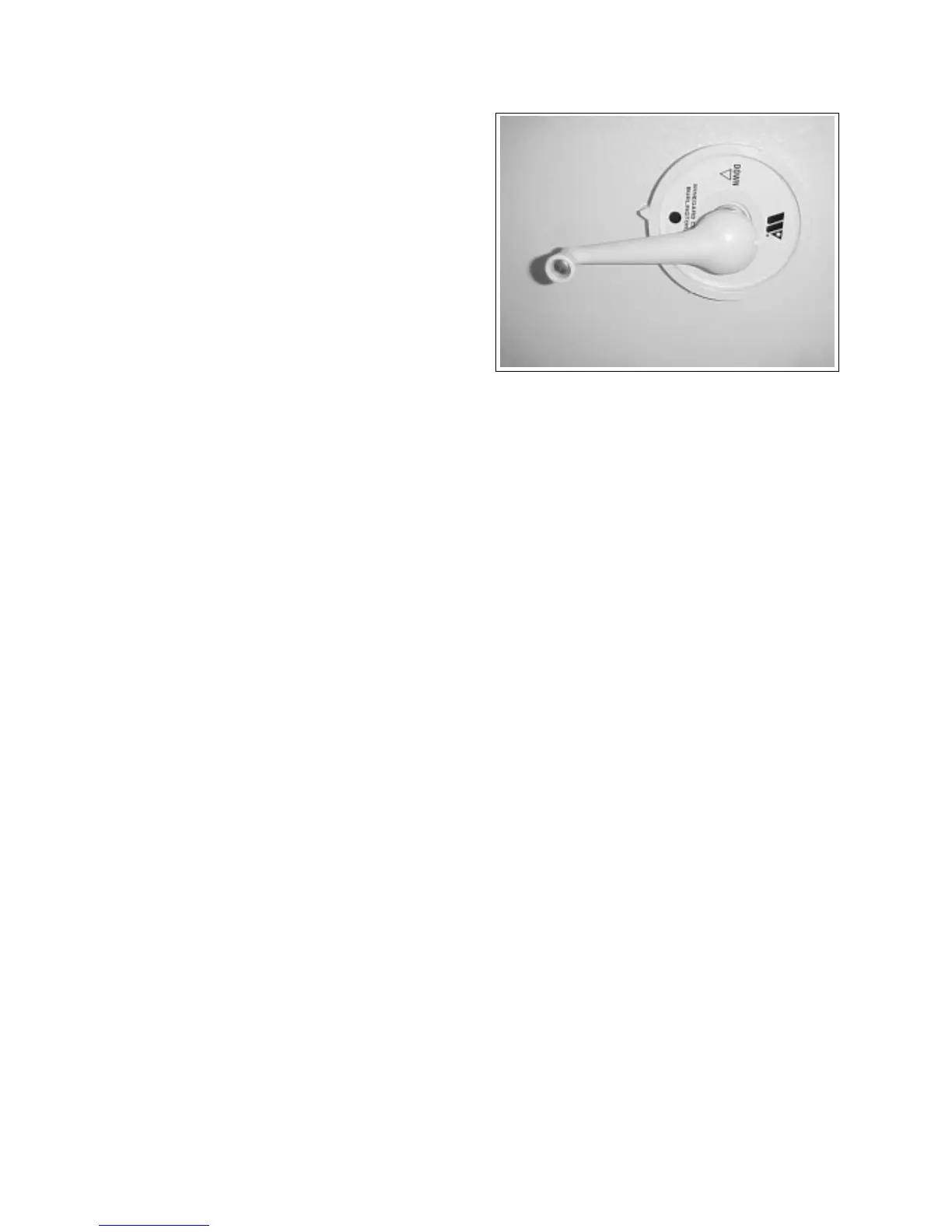

Fig. 12-11 ANTENNA CONTROL
