Triumph Sprint GT User Manual

107
Maintenance and Adjustment
Sprint GT

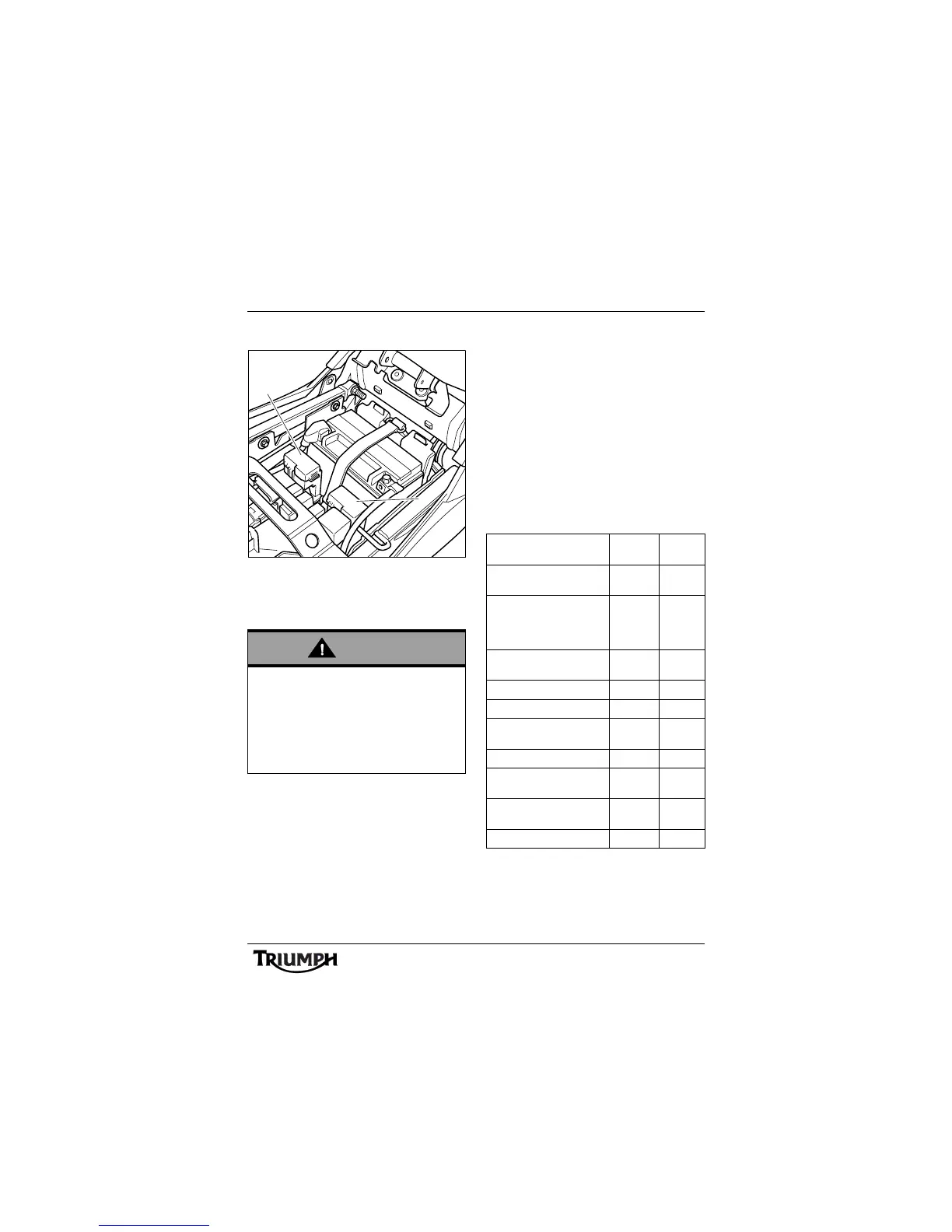

1. Left fuse box
2. Right fuse box
The fuse boxes are located beneath the seat.
Remove the seat to access the fuse boxes.
Fuse Identification - Sprint ST
The fuses can be identified by a number
moulded into the fusebox housing, adjacent
to each fuse, as shown below. These numbers
correspond to the numbers given in the table
below. Fuses without an identification
number are spare, and should be replaced if
used.
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the table below to establish which fuse
has blown.
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
1
cgdr
2
Circuit Protected Position Rating
(Amps)
Starter solenoid, dip and
main beam headlights
120
Ignition switch main feed,
tail lights, number plate
light, side lights, fuel
pump
210
Turn signals, brake light,
horn
310
Not used
4
Not used
5
Accessory socket, heated
grips
610
Cooling fan 7 15
Engine management
system
810
Alarm, diagnostic
connector, instruments
910
GPS 10 2

Triumph Sprint GT Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Fuel Tank Capacity	20 litres
Max Power	130 PS (95.6 kW) @ 9, 200 rpm
Max Torque	108 Nm @ 6, 300 rpm
Exhaust	Stainless steel 3 into 1
Frame	Aluminium beam
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload and rebound damping
Front Brakes	Twin 320 mm floating discs, Nissin 4-piston calipers
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper
Seat Height	815mm
Ignition	Digital inductive type
Swingarm	Single-sided, aluminium alloy
Wheelbase	1, 537 mm
