Parts Identification

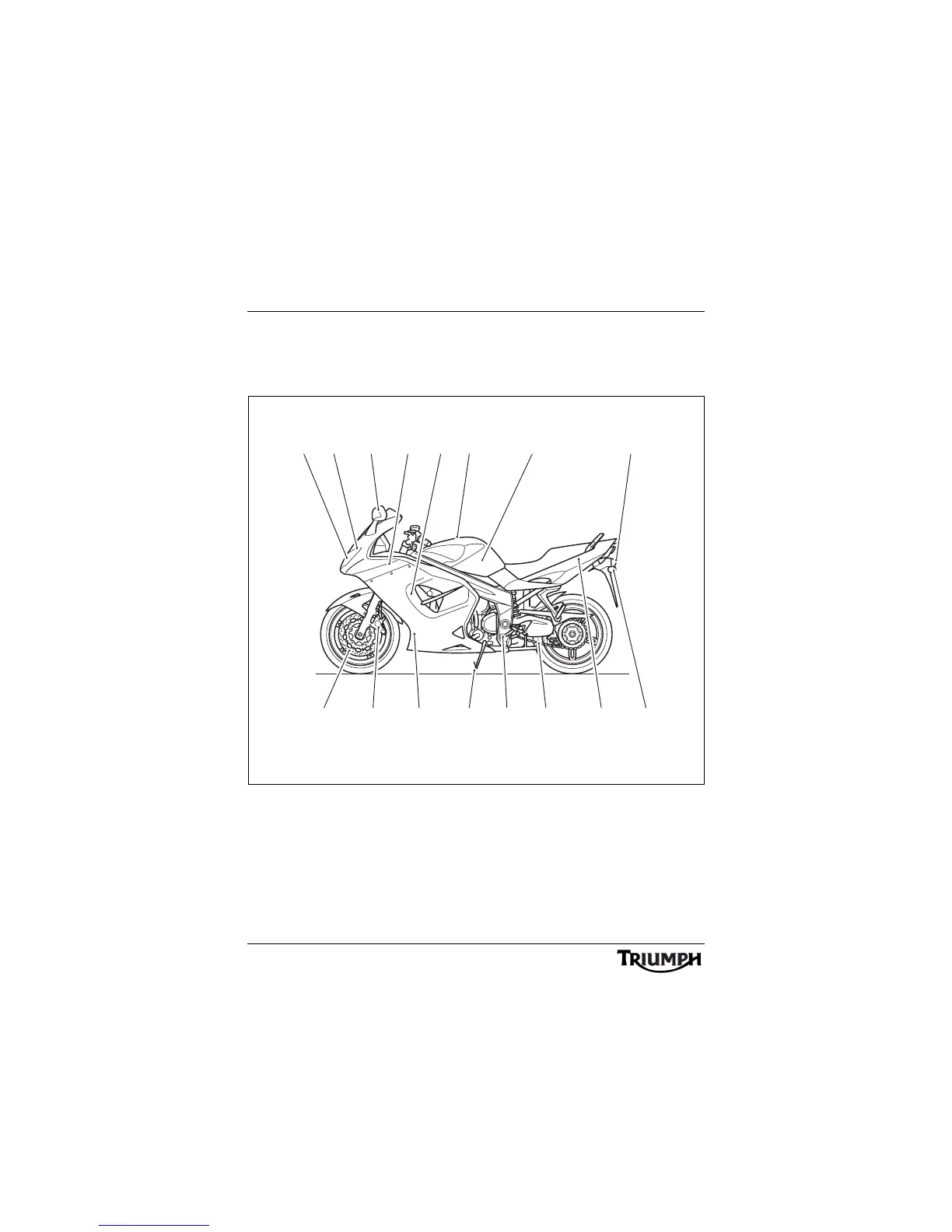

PARTS IDENTIFICATION
Sprint ST
1. Headlight
2. Position lamp
3. Front turn signal
4. Coolant expansion tank
5. Radiator/Coolant pressure cap
6. Fuel filler cap
7. F ue l t ank
8. Rear light
9. Front brake disc
10.Front brake caliper
11. O i l c o o l e r
12 . S i d e s t a n d
13 . G e a r - s h i f t p e d a l
14 . D r i v e c h a i n
15 . M u f f l e r
16.Rear turn signal
ccmq
52 6
15
3 74 8
141312 169 10 11
1

Triumph Sprint GT Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Fuel Tank Capacity	20 litres
Max Power	130 PS (95.6 kW) @ 9, 200 rpm
Max Torque	108 Nm @ 6, 300 rpm
Exhaust	Stainless steel 3 into 1
Frame	Aluminium beam
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload and rebound damping
Front Brakes	Twin 320 mm floating discs, Nissin 4-piston calipers
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper
Seat Height	815mm
Ignition	Digital inductive type
Swingarm	Single-sided, aluminium alloy
Wheelbase	1, 537 mm
