Triumph Sprint GT User Manual

87
Maintenance and Adjustment

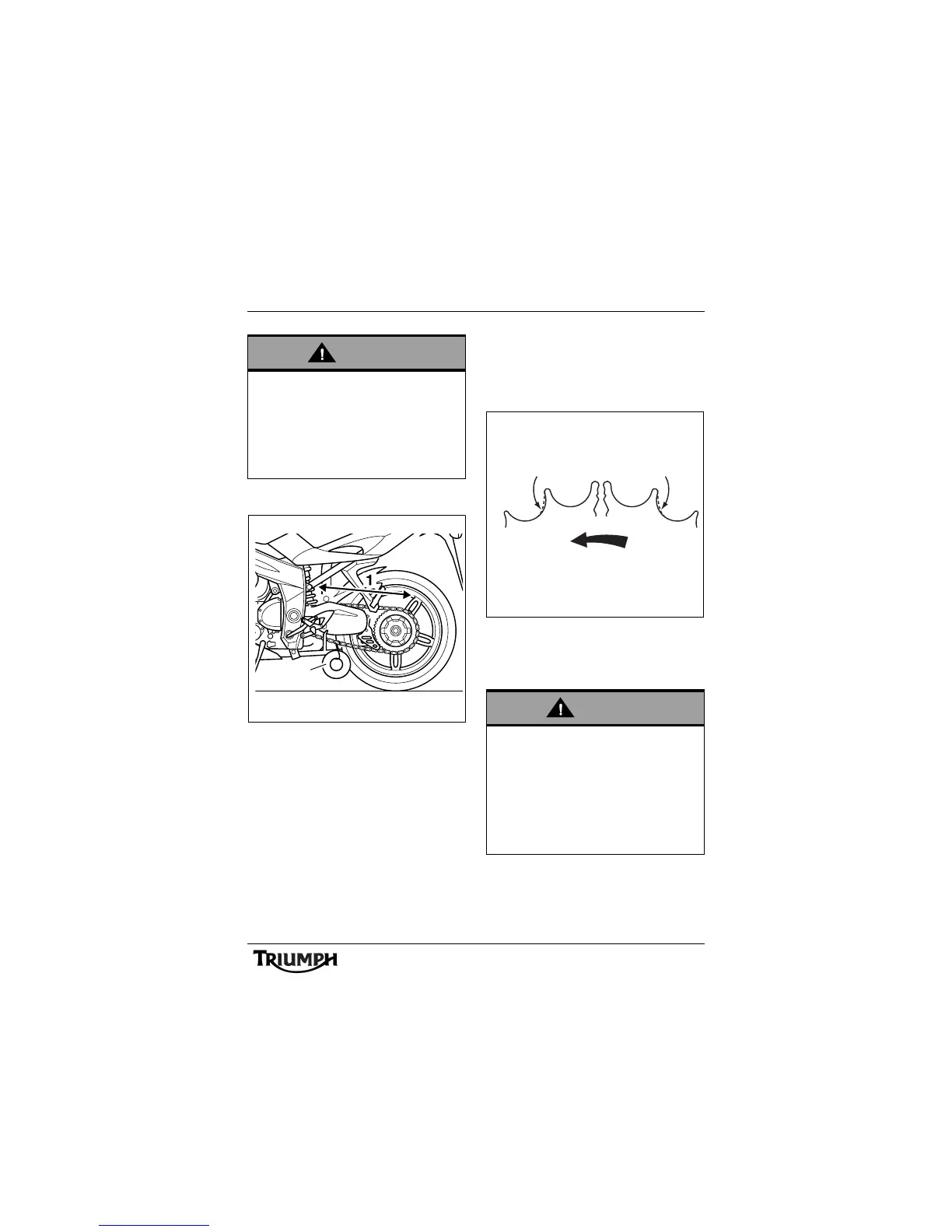

Chain and Sprocket Wear Inspection
1. Measure across 20 links
2. Weight
Remove the chain guards.
Stretch the chain taut by hanging a
20 - 40 lb (10 - 20 kg) weight on the chain.
Measure the length of 20 links on the
straight part of the chain from pin center of
the 1
st
pin to the pin center of the 21
st
pin.
Since the chain may wear unevenly, take
measurements in several places.
If the length exceeds the maximum service
limit of 12.63 in (321 mm), the chain must be
replaced.
Rotate the rear wheel and inspect the drive
chain for damaged rollers, and loose pins and
links.
Also inspect the sprockets for unevenly or
excessively worn or damaged teeth.
If there is any irregularity, have the drive
chain and/or the sprockets replaced by an
authorized Triumph dealer.
Re-install the chain guards.
Warning
It is dangerous to operate the motorcycle
with defective brakes; you must have your
authorized Triumph dealer take remedial
action before you attempt to ride the
motorcycle again. Failure to take remedial
action may reduce braking efficiency
leading to loss of control or an accident.
ccmw
2
Warning
The use of non-approved chains may result
in a broken chain or may cause the chain
to jump off the sprockets.
Use a genuine Triumph supplied chain as
specified in the Triumph parts catalogue.
Never neglect chain maintenance and
always have chains installed by an
authorized Triumph dealer.
7/2.4//4(
%.').%302/#+%4
7/2.4//4(
2%!2302/#+%4
3PROCKETWEAREXAGGERATED
FORILLUSTRATIVEPURPOSES
CCOL

Triumph Sprint GT Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050 cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Fuel Tank Capacity	20 litres
Max Power	130 PS (95.6 kW) @ 9, 200 rpm
Max Torque	108 Nm @ 6, 300 rpm
Exhaust	Stainless steel 3 into 1
Frame	Aluminium beam
Front Suspension	43mm
Rear Suspension	Monoshock with adjustable preload and rebound damping
Front Brakes	Twin 320 mm floating discs, Nissin 4-piston calipers
Rear Brakes	Single 255mm disc, Nissin 2-piston caliper
Seat Height	815mm
Ignition	Digital inductive type
Swingarm	Single-sided, aluminium alloy
Wheelbase	1, 537 mm
