45
General Information

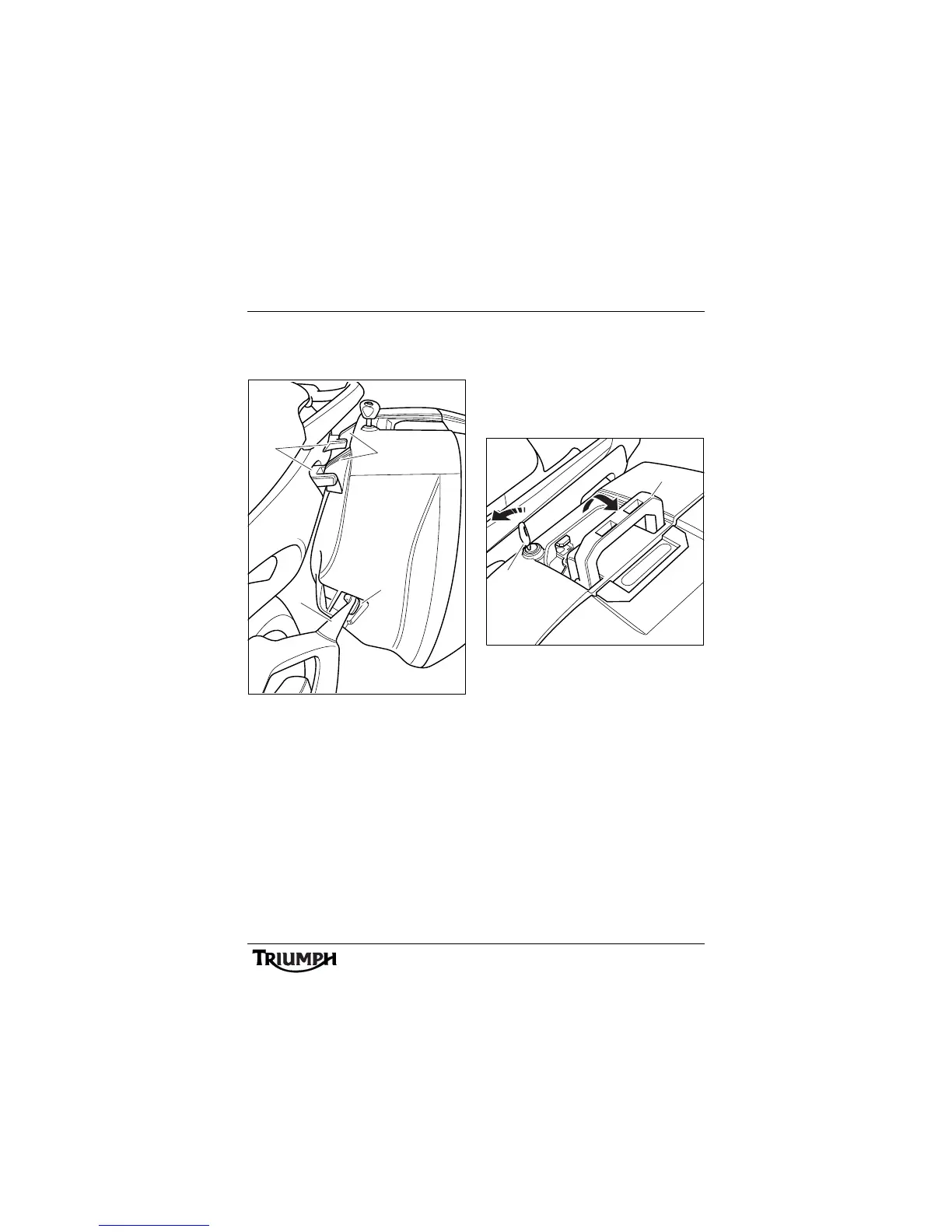

Ensure that the lower mounting bracket fits
into the locating cup moulded into the front
of the pannier.
1. Pannier fixed hooks
2. Pannier mountings
3. Locating bracket
4. Locating cup
Lock the pannier to the rail by pressing the
carrying handle to the fully closed position
while turning the key to the LOCK position.
Remove the key.
To remove each pannier:
Note:
The same procedure can be
followed to remove and mount the
left hand or the right hand
panniers.
1. L o c k
2. Carrying handle
To unlock and remove the pannier from the
pannier mountings, turn the key to the
RELEASE position and lift the carrying handle
to its fully raised position. Lift the pannier free
from the pannier mountings.
cgdu
2
1
3
4
1
cgds
2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Triumph Sprint GT and is the answer not in the manual?

Triumph Sprint GT Specifications

General IconGeneral
Engine TypeLiquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement1050 cc
Bore x Stroke79 x 71.4 mm
Compression Ratio12.0:1
Fuel SystemMultipoint sequential electronic fuel injection
Final DriveX ring chain
ClutchWet, multi-plate
Gearbox6-speed
Front Tyre120/70 ZR17
Rear Tyre180/55 ZR17
Fuel Tank Capacity20 litres
Max Power130 PS (95.6 kW) @ 9, 200 rpm
Max Torque108 Nm @ 6, 300 rpm
ExhaustStainless steel 3 into 1
FrameAluminium beam
Front Suspension43mm
Rear SuspensionMonoshock with adjustable preload and rebound damping
Front BrakesTwin 320 mm floating discs, Nissin 4-piston calipers
Rear BrakesSingle 255mm disc, Nissin 2-piston caliper
Seat Height815mm
IgnitionDigital inductive type
SwingarmSingle-sided, aluminium alloy
Wheelbase1, 537 mm
