About Your Ice Machine & Installation Requirements (cont.)
Plumbing Connections
Water Supply 1/2" Female NPT Fitting
Drain Connection 3/4" Female NPT Fitting
Water temperature and pressure
Minimum Maximum
Air Temperature 35˚F (1.7˚C) 110˚ F (43.3˚C)
Water Temperature 35˚F (1.7˚C) 110˚ F (43.3˚C)
Water Pressure 20 psig (138 kPa) 100 psig (689 kPa)

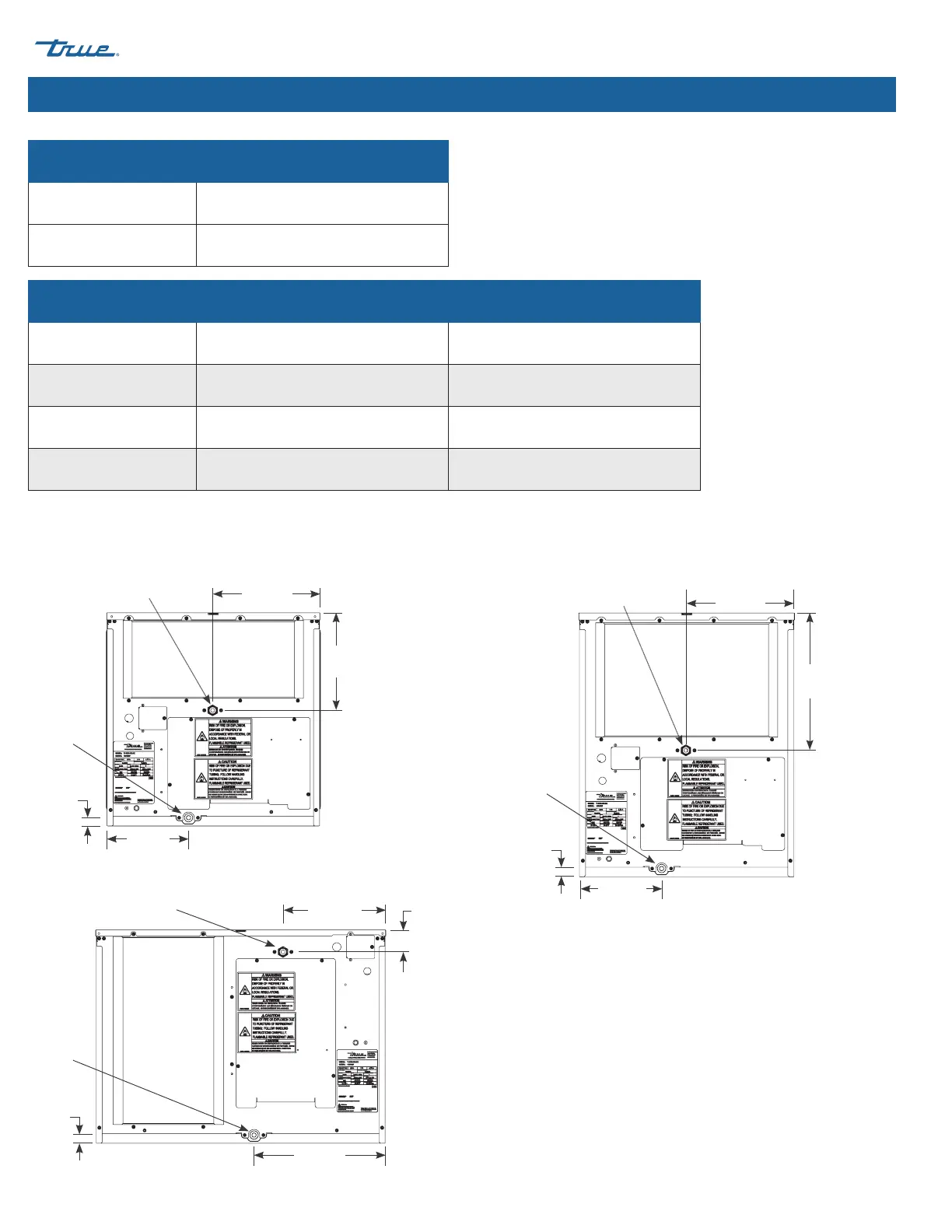

Plumbing Connection Diagrams
Ice machine rear views shown.
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
10-5/32"
(258 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
11-3/16"
(284 mm)
13-5/8"
(346 mm)
7/8"
(22 mm)
2-9/32"
(58 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
11-3/16"
(284 mm)
8-15/32"
(215 mm)
7/8"
(22 mm)
14-5/32"
(360 mm)
Water Outlet
3/4" FNPT
Water Inlet
1/2" FNPT
TI-422/
TI-522
TI-430/
TI-530/
TI-630
TI-622
