Installation & Setup (cont.)
Ice Storage Bin or Dispenser
NOTICE!
Installer must ensure the dispenser unit/ice storage bin is compatible with the ice machine, and the dispenser
unit/ice storage bin and ice machine are properly attached and secured. See fig. 1.
Before mounting the ice bin, always measure for the ice level sensor. See "Ice Level Sensor Setup" (pg. 33).

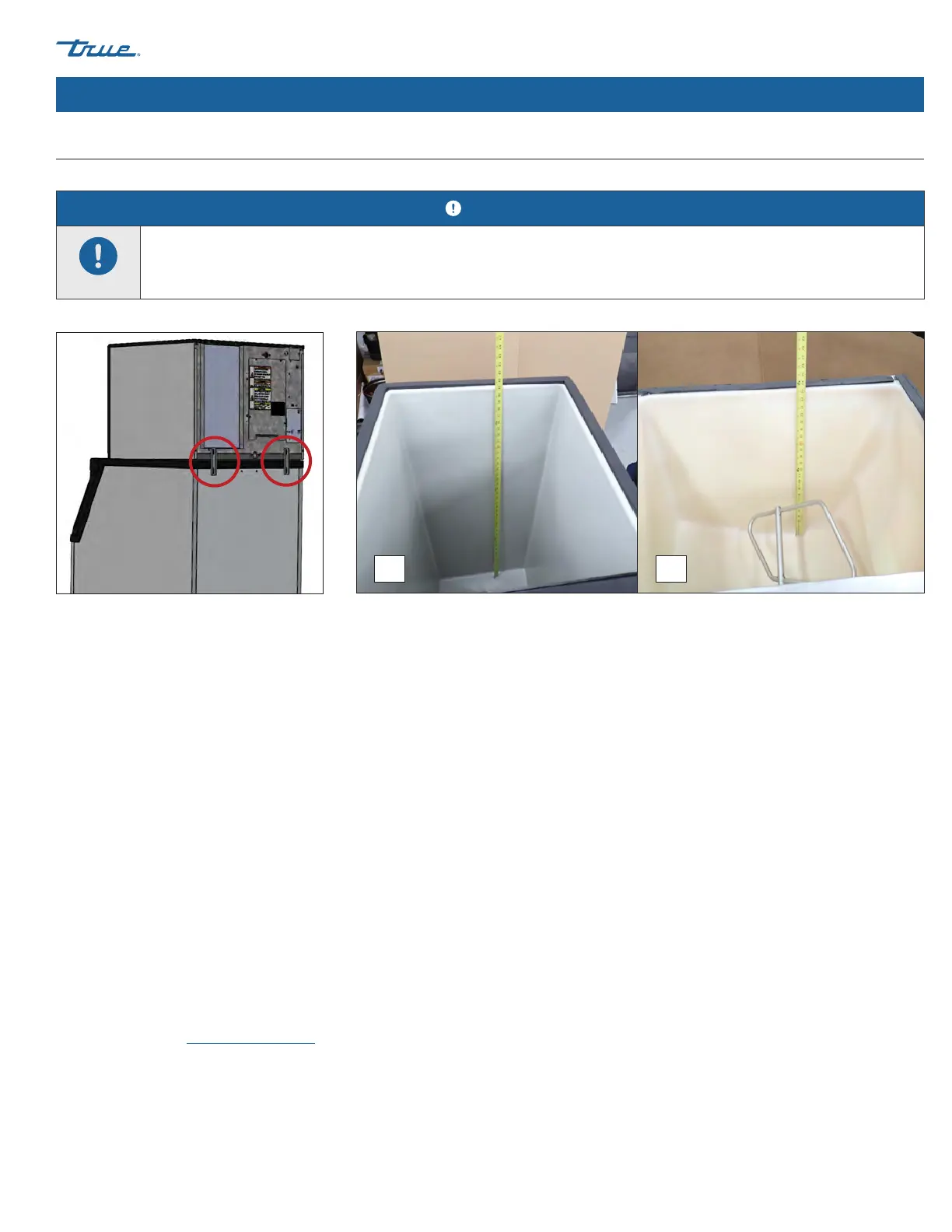

Fig. 1. Installed bin brackets. Fig. 2. Always measure the bin (A) or dispenser (B) for the ice level sensor before mounting the ice machine.
BA
The ice machine can be installed on a dispenser unit or ice storage bin. If required, install an adapter kit or top kit. See fig. 3. Contact
TRUE for recommendations.
Ice machines require a deflector when installed on an ice storage bin. Before using a non-OEM ice storage system with this ice
machine,contact the bin manufacturer to assure their ice deflector is compatible.
Before installing a non-OEM ice storage system with this ice machine, follow the manufacturers installation procedures and verify the
location and installation meets the local/national mechanical codes and stability requirements.
Follow the ice storage bin, adapter kit, or top kit instructions for securing the ice machine. If no instructions are available, secure the
ice machine using the provided mounting brackets and bolts.
If mounting the ice machine on top of a dispenser unit, follow the dispenser unit's setup procedure. If mounting the ice machine on
top of an ice storage bin, unpack the ice storage bin and attach the provided adjustable legs to the bottom of the ice storage bin.
Adjust the legs to level the dispenser unit/ice storage bin both left-to-right and front-to-rear. Place the ice machine on top of the
dispenser unit/ice storage bin.
See plan views for drop-zone specifications. Be sure the location of the drop-zone is compatible with your ice storage compartment.
Verify the ice will fall freely and not catch on parts of the ice storage.
Drop-zone deflectors allow ice to fall farther back into the ice storage to clear any obstruction. See figs. 4 and 5. Contact True Parts
Department at truemfg.com/parts.
