About Your Ice Machine & Installation Requirements (cont.)
Electrical Requirements
WARNING!
Risk of electric shock, burn, or fire!
• Electrical connection must be hard-wired and meet all applicable laws, codes, and regulations. Failure to meet these code
• Requirements can result in appliance damage, fire, electrical shock, serious injury, or death.
• Your ice machine requires an independent power supply of proper capacity. See nameplate and rating labels for
specifications "(see "Label Locations" (pg. 15))". Failure to use an independent power supply of proper capacity can lead
to electrical fire.
• For personal safety, your ice machine must be properly grounded.
See "Cord Specifications" (pg. 26) for detailed electrical specifications. Electrical service must fall within the voltage tolerances listed.
• See wiring diagram beneath the top panel as shown in fig. 1. To access, see "Panel Removal" (pg. 28).
• Ice machines come equipped with a rocker switch. See location in fig. 2.
• Make electrical connections inside the ice machine's junction box on the appliance's rear. See figs. 3 and 4.

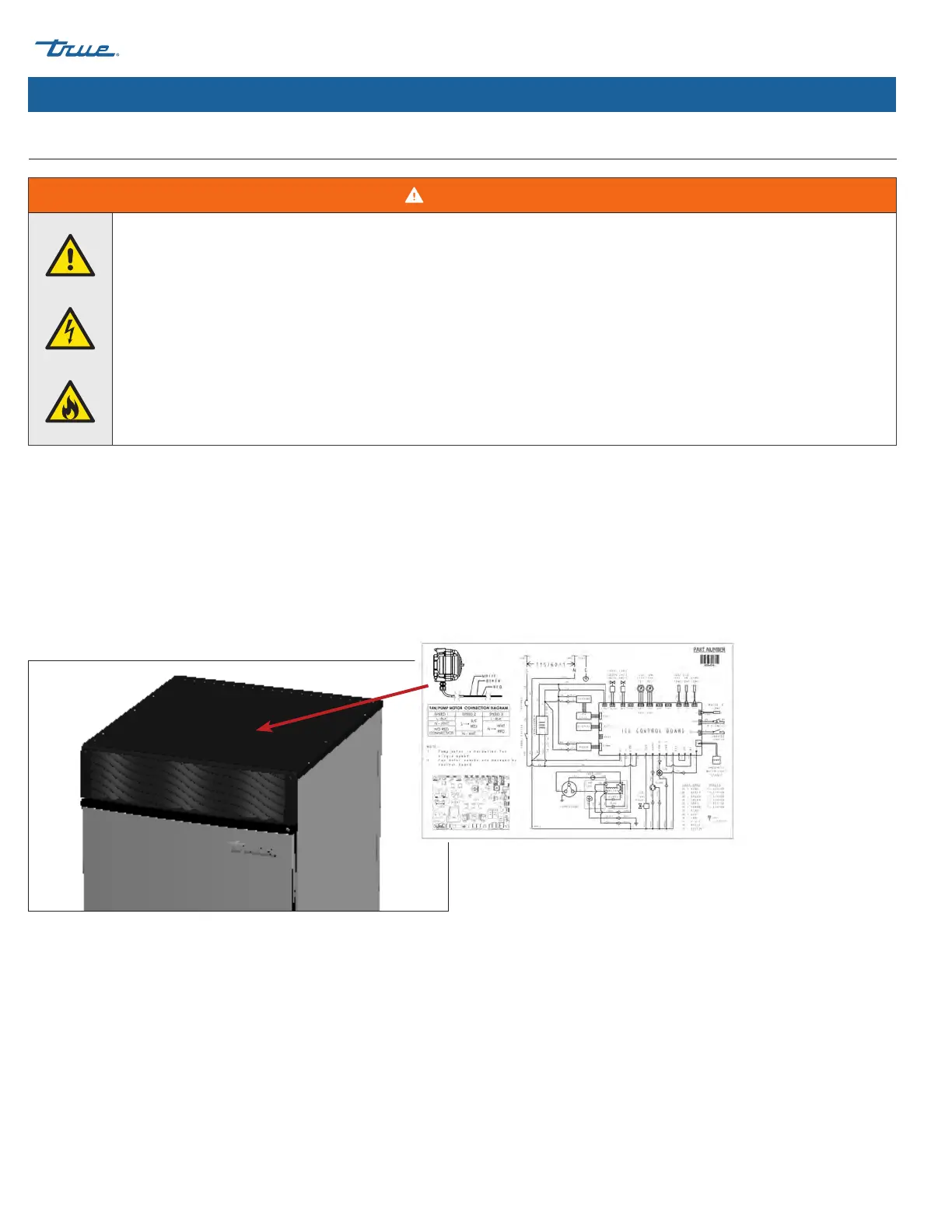

Fig. 1. Wiring diagram located under the top panel.
