PEX-1000 Series
Print
Engine Service Manual

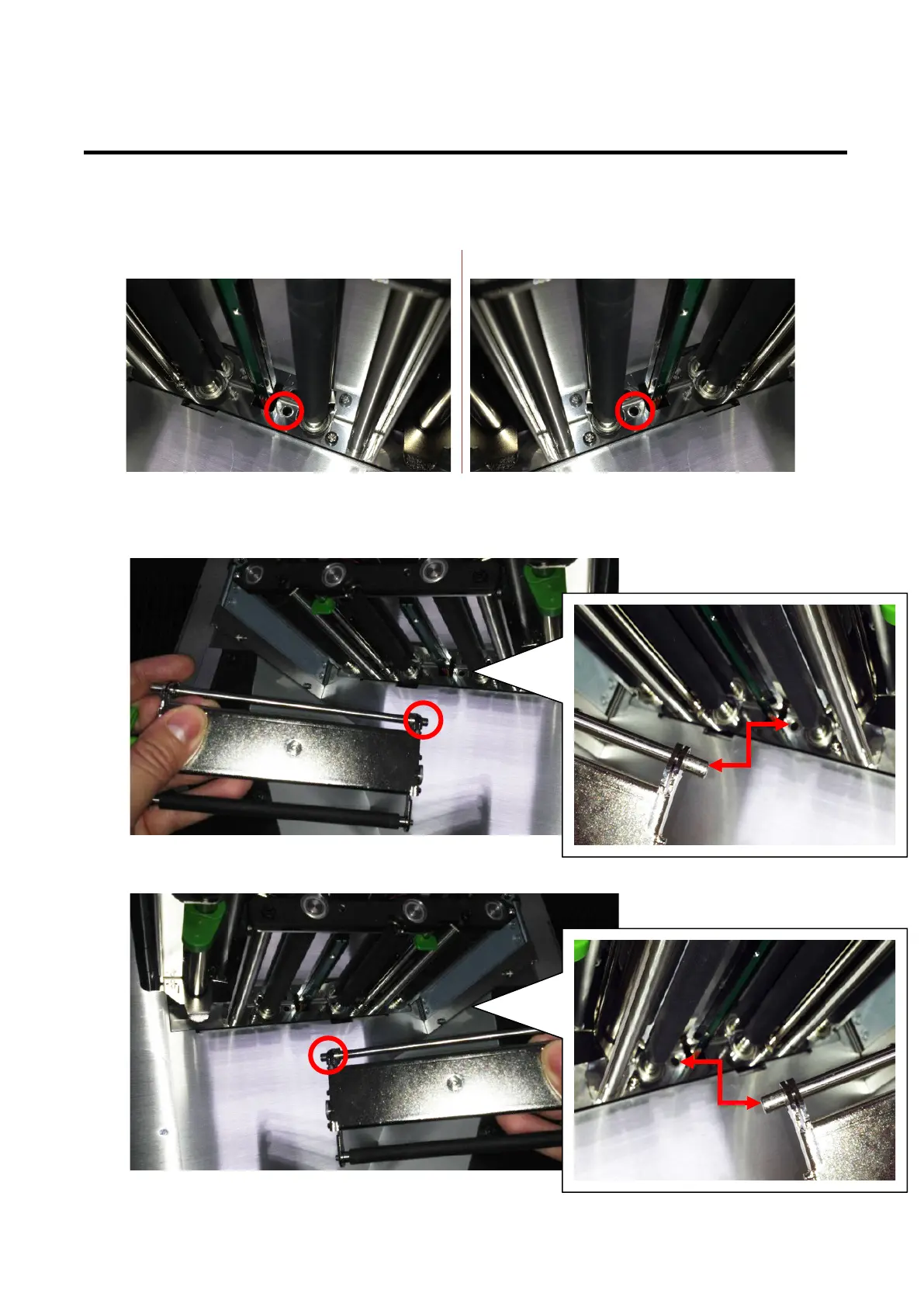

3. There is a locating hole between media sensor and rear paper-feed roller (most right
one).
Left-handed configuration
Right -handed configuration
4. Put the shaft of the peel-off roller module into the locating hole.
Left-handed configuration:
Right -handed configuration:
