Print
Engine Service Manual

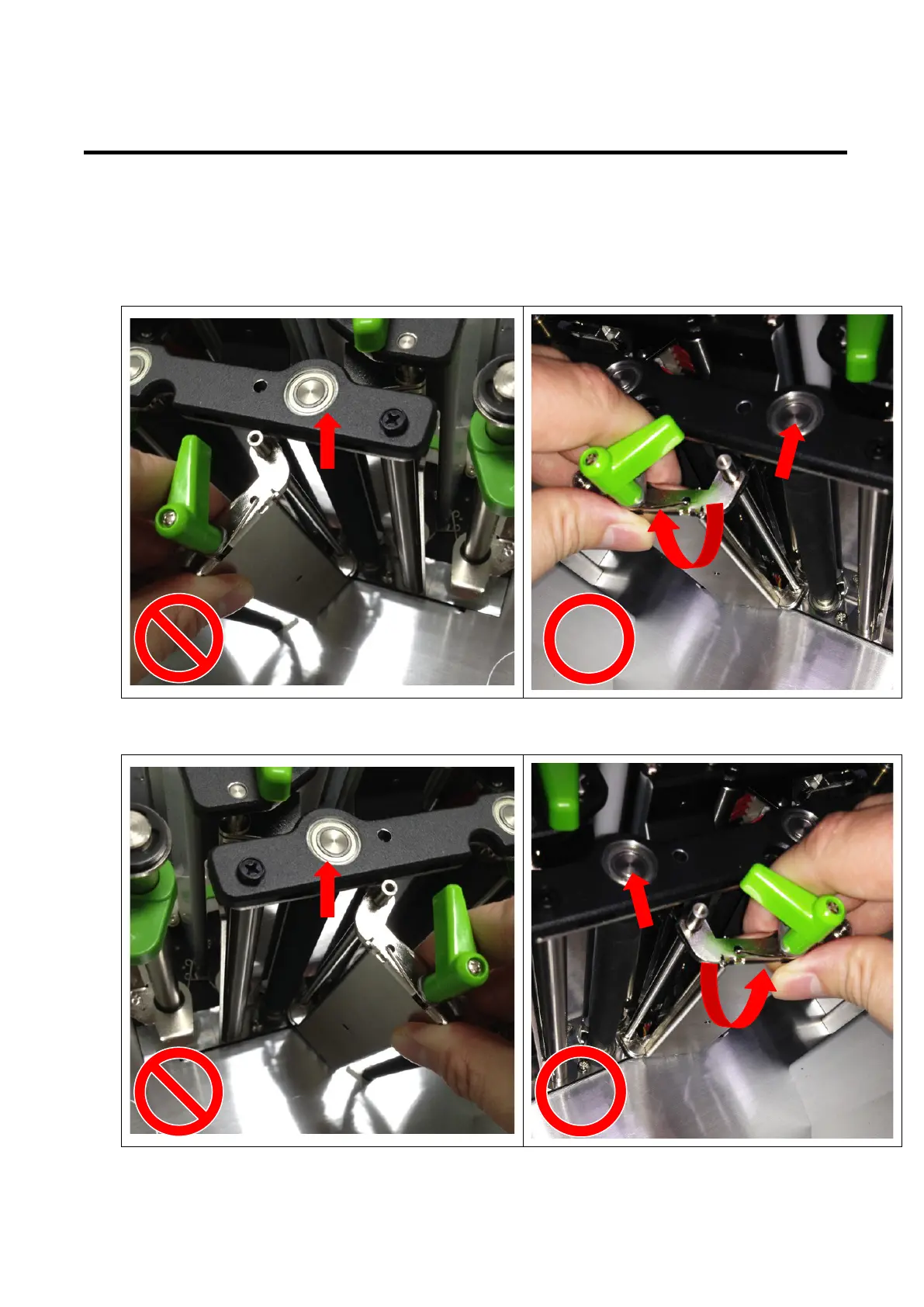

5. After putting shat into locating hole, at certain angle, the module would not be able to
put inside. Please turn the module in the clockwise direct to put the module inside.
Left-handed configuration:
Right -handed configuration:
1
2
1
2
