TSC PRINTRONIX AUTO ID TC200 Series User Manual

29

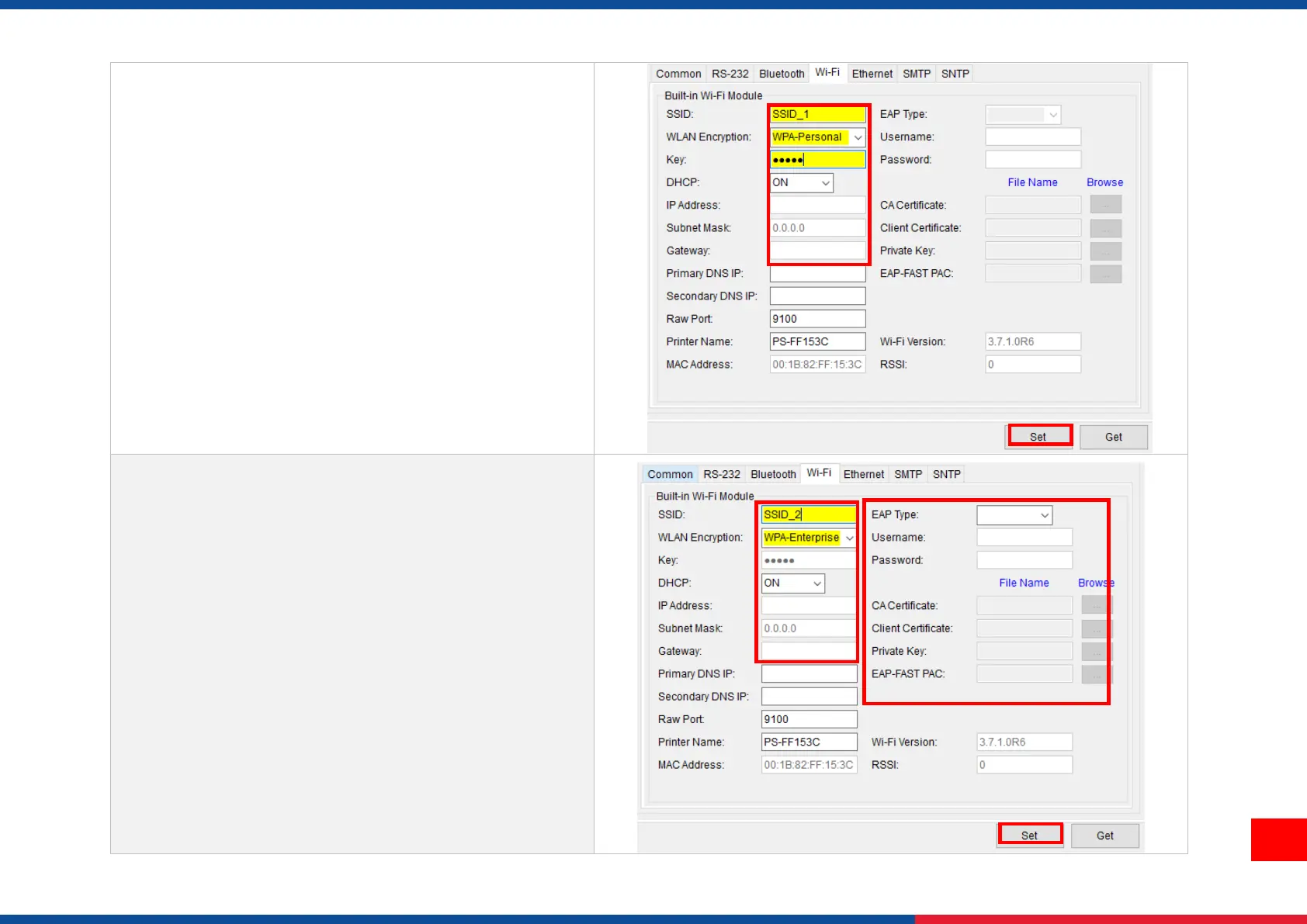

For WPA-Personal
I. Fill-in the SSID.
II. Select the Encryption option to WPA-Personal.
III. Fill-in the Key.
IV. Select DHCP to ON. (For OFF option, please fill-in the
IP Address, Subnet Mask and Gateway)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
For WPA-Enterprise
I. Fill-in the SSID.
II. Select the Encryption option to WPA2-Enterprise.
III. Select DHCP to ON (For OFF option, please fill-in the IP
Address, Subnet Mask and Gateway)
IV. Select the EAP Type option. (For EAP-TLS option,
please upload the CA and Key for mutual authentication,
integrity-protected cipher suite negotiation, and key
exchange between two endpoints.)
V. After setting, click the Set button.
Note:
Before setting, the entered field will be shown in yellow for
reminding.
On DHCP, user can change the printer name by another
model name in “Printer Name” field.
User also can change the raw port in “Raw Port” field.
1
2
3
2
1

TSC PRINTRONIX AUTO ID TC200 Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Print Speed	6 IPS (152 mm/s)
Max Print Width	4.09" (104 mm)
Connectivity	USB 2.0, RS-232
Media Handling	fan-fold, continuous
Media Type	Roll-fed or fan-fold
Media Width	1.0 to 4.64 inches
Media Core Diameter	1 inch (25.4 mm) or 1.5 inches (38.1 mm)
Media Max Roll Diameter	5 inches (127 mm)
Ribbon Width	1.57 inches (40 mm) to 4.33 inches (110 mm)
Ribbon Core Diameter	0.5 inches
Ribbon Length	984 feet (300 meters)
Power	100-240V AC, 50-60 Hz
Supported Barcode Types	Data Matrix, QR Code
