TSC TTP-245 User Manual

7

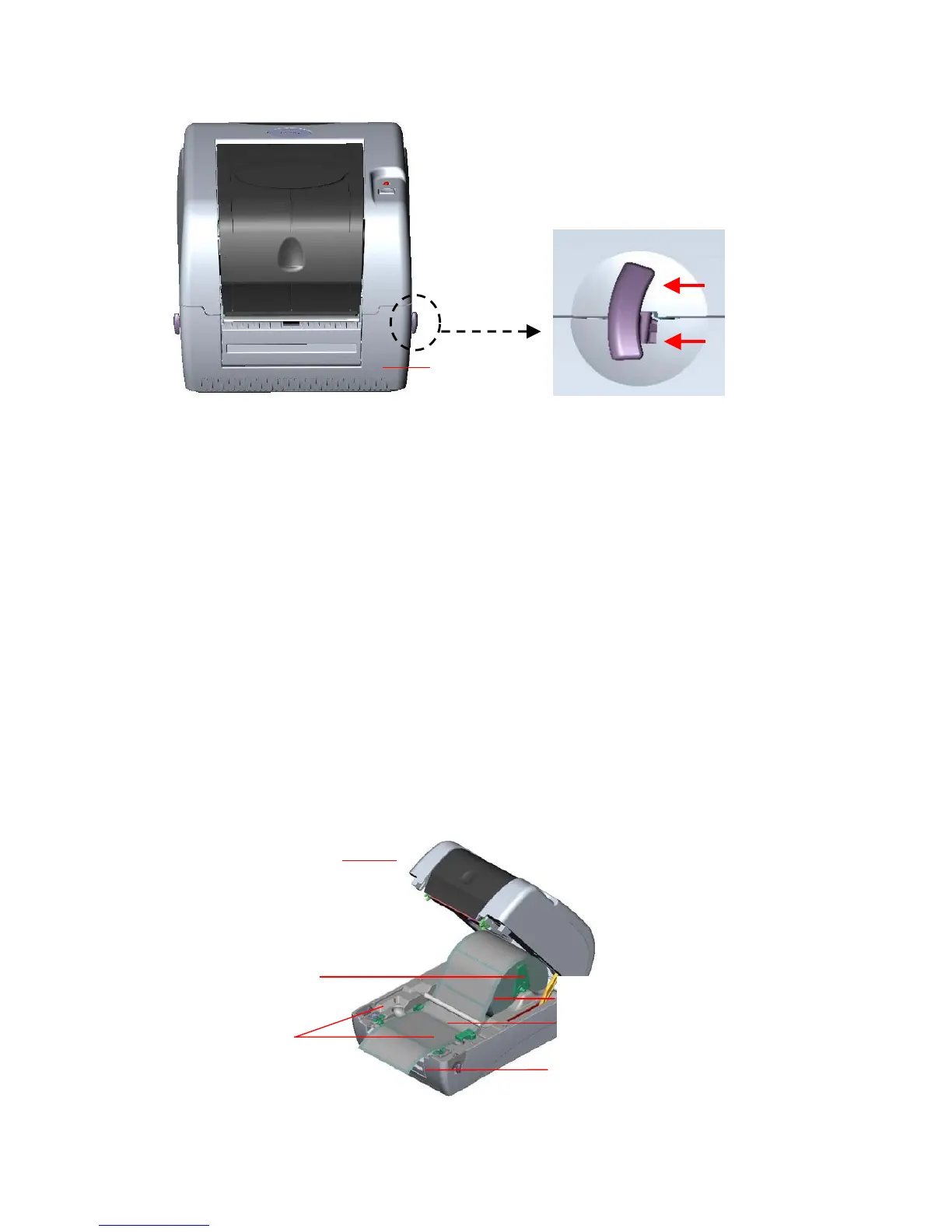

Fig. 7 Pull the lever to open the cover
3. Place a roll of paper onto the center of the paper roll mount.
4. Feed the paper, printing side face up, through the Teflon bar and the paper guide
and pass over the platen.
5. Adjust the green center-biased paper guides to slightly touch the edges of the label
backing.
6. To close the printer top cover, lift the cover to the ultimate open angle then use both
hands to close the cover gently. Close the printer top cover slowly and make sure
the cover latches securely.
Note:
1. Make sure hands are not placed between printer top cover and lower
cover when close the top cover.
2. Do not free fall the top cover.
3. Failure to securely close and lock the cover will result in poor print quality.
Lower Cover
Printer Top Cover
Top Cover Support
Paper Guide
Teflon Ba
r
Top Cover Open Lever
Paper Roll Mount

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
