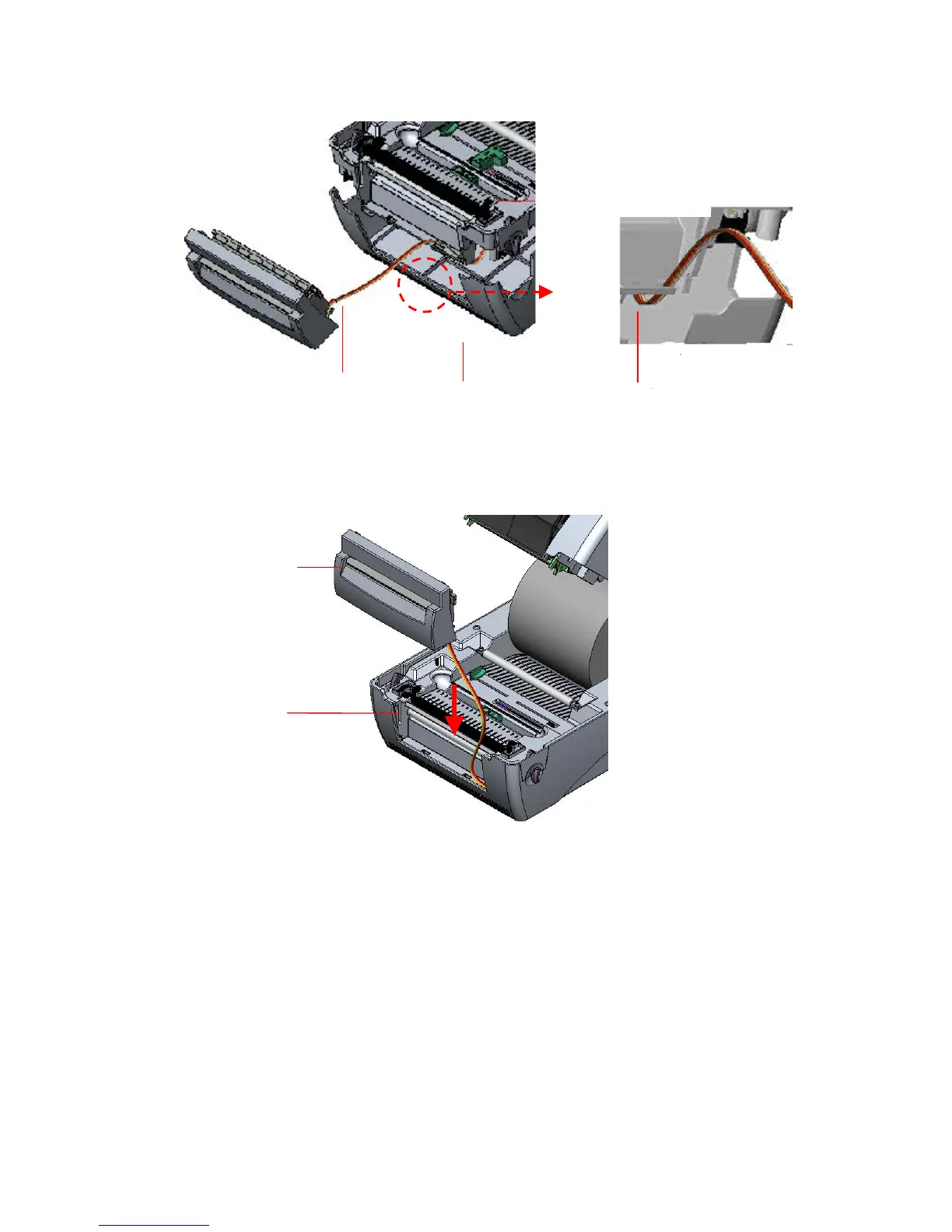

Fig. 25 Cutter module cable arrangement
8. Arrange the lower inner cover back to the lower cover.
9. Install the cutter into the niches of the printer.
Fig. 26 Cutter module installation
10. Use a screwdriver to screw whole screws on the lower inner cover and the lower
cover.
11. Close the top cover by arranging the top cover support back to the flute
and push it forward then close the top cover slowly.
3.6.1 Loading Label in Cutter Mode
Niche
Cutter
Lower Inner Cover
Lower CoverCutter Cable
Bezel

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
