3.7 Instructions to Top Cover Operation

Please take care when opening or closing the printer’s top cover by carefully following

these instructions.

To Open:

1. When facing the front of the printer pull the cover release levers on both sides of

printer towards you.

2. Lift up the top gradually.

There are two stop positions for the top cover. Position 1 and 2 are indicated on the

label below.

Note: To hold the cover open at position 1, you must lift the cover higher than

the stopping point at position 1 and gently lower the cover to stopping point

1. Do not let the cover free fall!

3. Fully open the top cover and gently lower it to stop position 2.

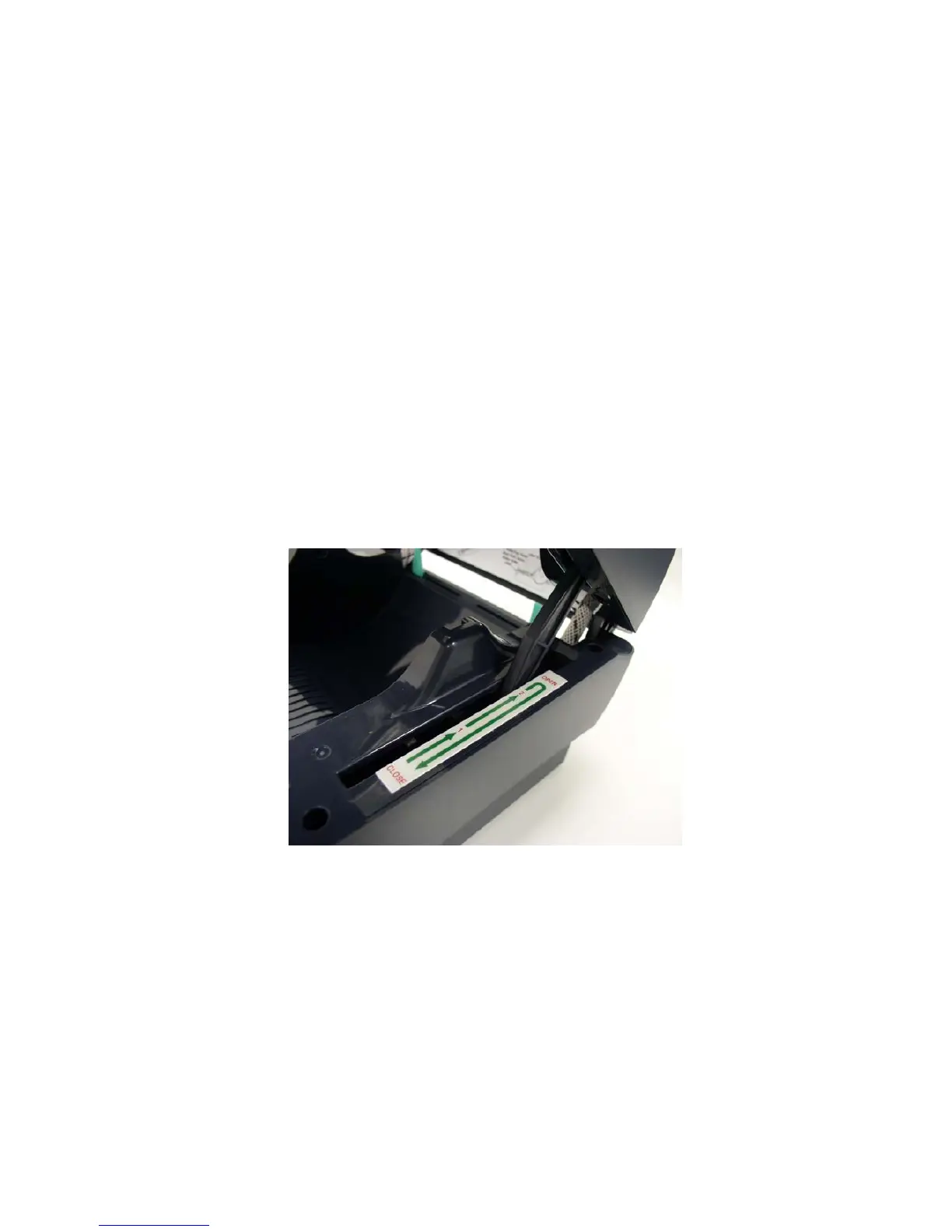

Fig. 1 Top cover support is fixed at position 2

4. To close the cover, lift up the top cover to the ultimate angle then close the top cover

gently and it will be kept at a stop position between 1 and 2 for a while. Use both

hands to gently push down the top cover to close it and make sure the cover is

latched on both sides.

Note: Do not place your hands between top cover and lower cover when

closing the top cover!

Other manuals for TSC TTP-245

Questions and Answers:

Need help?

Do you have a question about the TSC TTP-245 and is the answer not in the manual?

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
