TSC TTP-245 User Manual

19

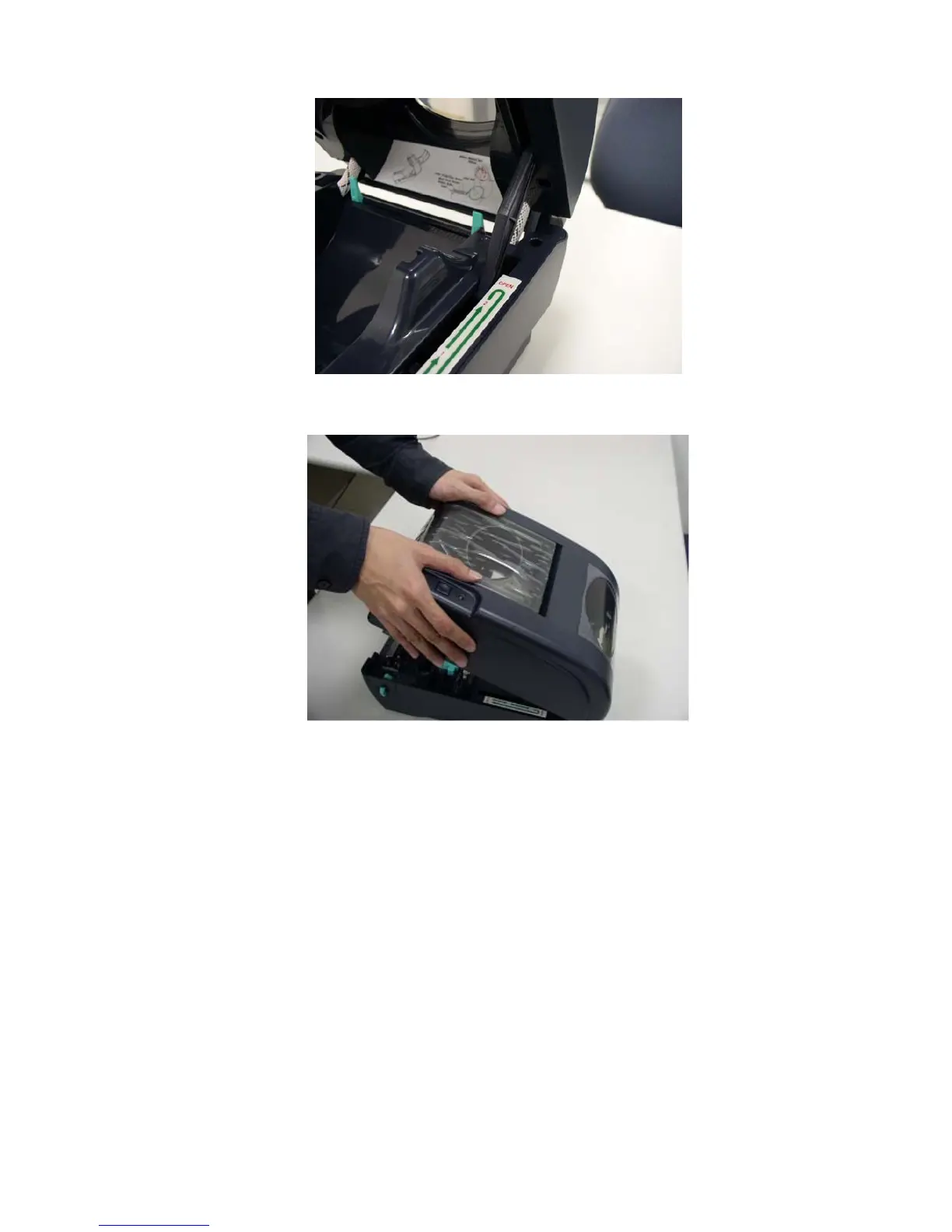

Fig. 2 Top cover is fully open and ready to close
Fig. 3 Use both hands to close the top cover
5. Do not force the cover! If you are not sure if top cover is fixed at stop position,
please do not push top cover to close it or the top cover will be damaged.
Please open the top cover to the ultimate angle to close the top cover again. Use
both hands to push top cover to close it.

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
