TSC TTP-245 User Manual

6

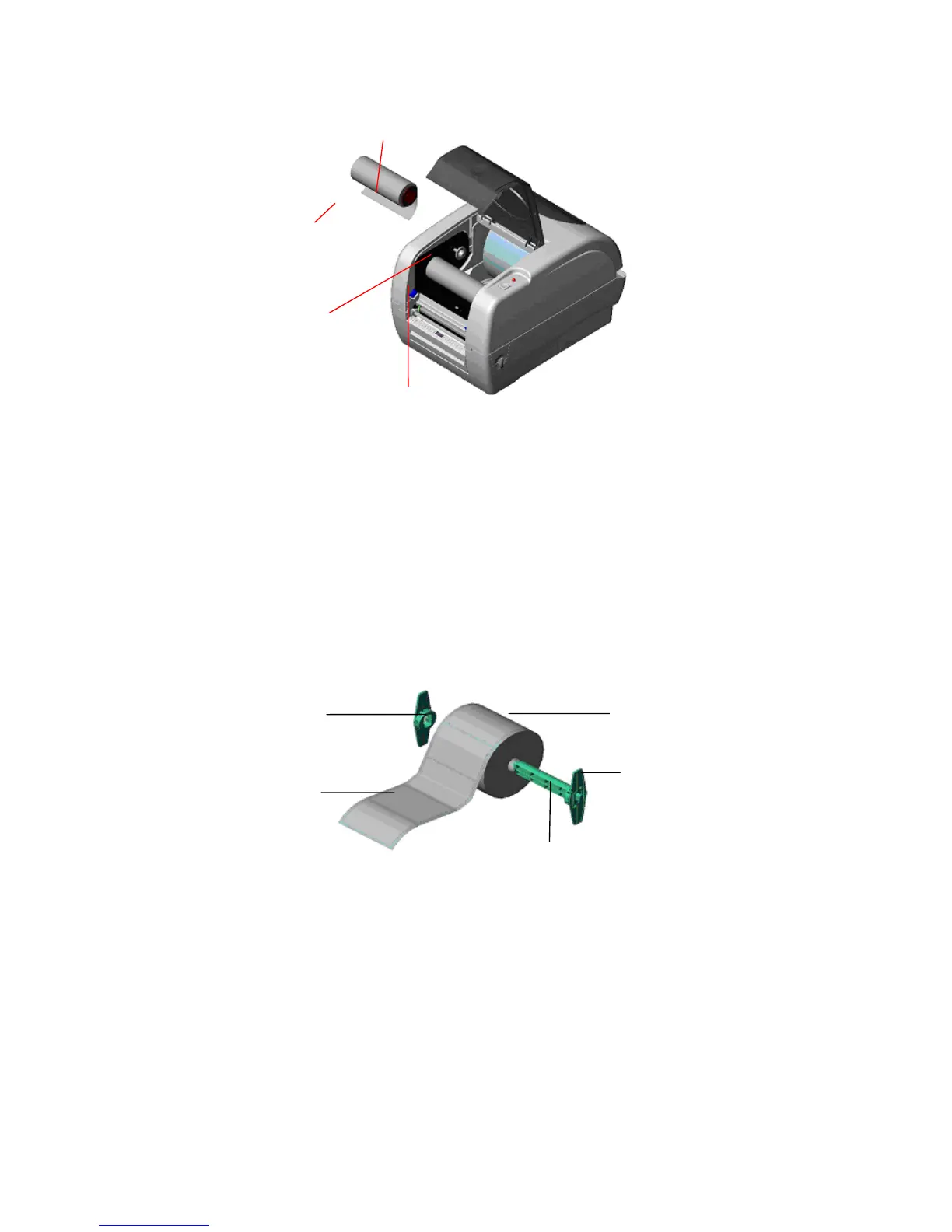

Fig. 5 Ribbon installation (II)
3.3 Loading Label Stock
1. Insert a 1” label spindle into a paper roll ( * If your paper core is 1 inch, remove the
1.5” core adapter from the fixed tab. If label width is 4 inch wide, two fixing tabs are
not required. ).
Fig. 6 Label roll installation (I)
2. Open the printer’s top cover by releasing the green top cover open levers located
on each side of the printer and lifting the top cover. A top cover support at the rear of
the printer will hold the printer top cover open.
Rear Hub
Ribbon
Lead Tape
Ribbon supply spindle
Ribbon Rewind S
p
indle with Pa
p
er Core
Pa
p
er Roll
1” Label Spindle
Printing Side
Face U
p
1.5” Core
Adapter
*
Fixed Tab

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
