6. Close the printer top cover by lifting the top cover to the maximum opening angle
then push down the top cover gently.
Fig. 11 External roll mount label installation (II)
3.5 Peel-off Module Installation (Option)
1. Open the top cover and remove the front panel from the printer.

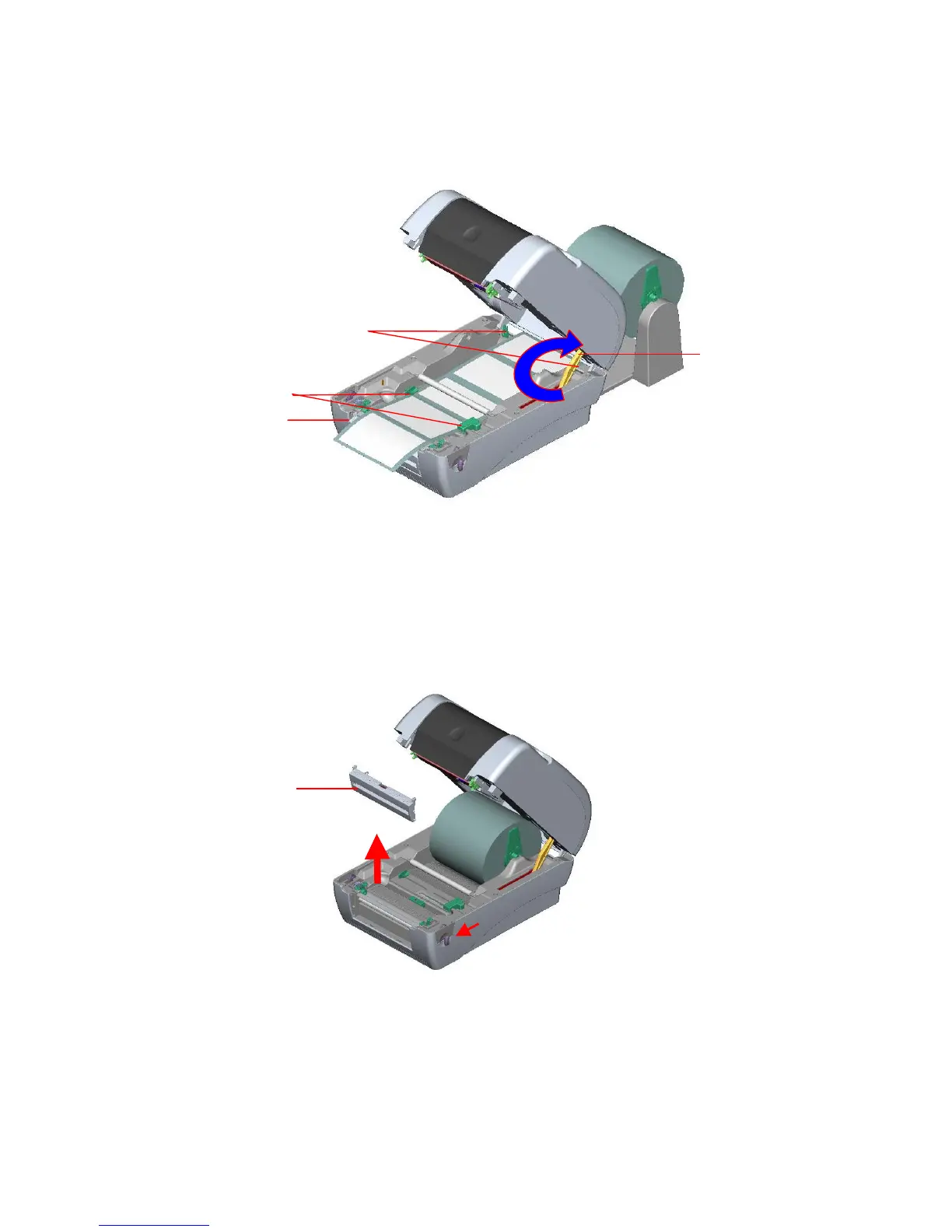

Fig. 12 Remove the front panel
2. Open the top cover and hold it and push down and push backward the top cover
support then push backward the top cover.
3. Use a screwdriver to screw off 6 screws on the lower inner cover.
Paper Guide
Platen
Rear Paper Guide
Front Panel
Top Cover Support

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
