TSC TTP-245 User Manual

10

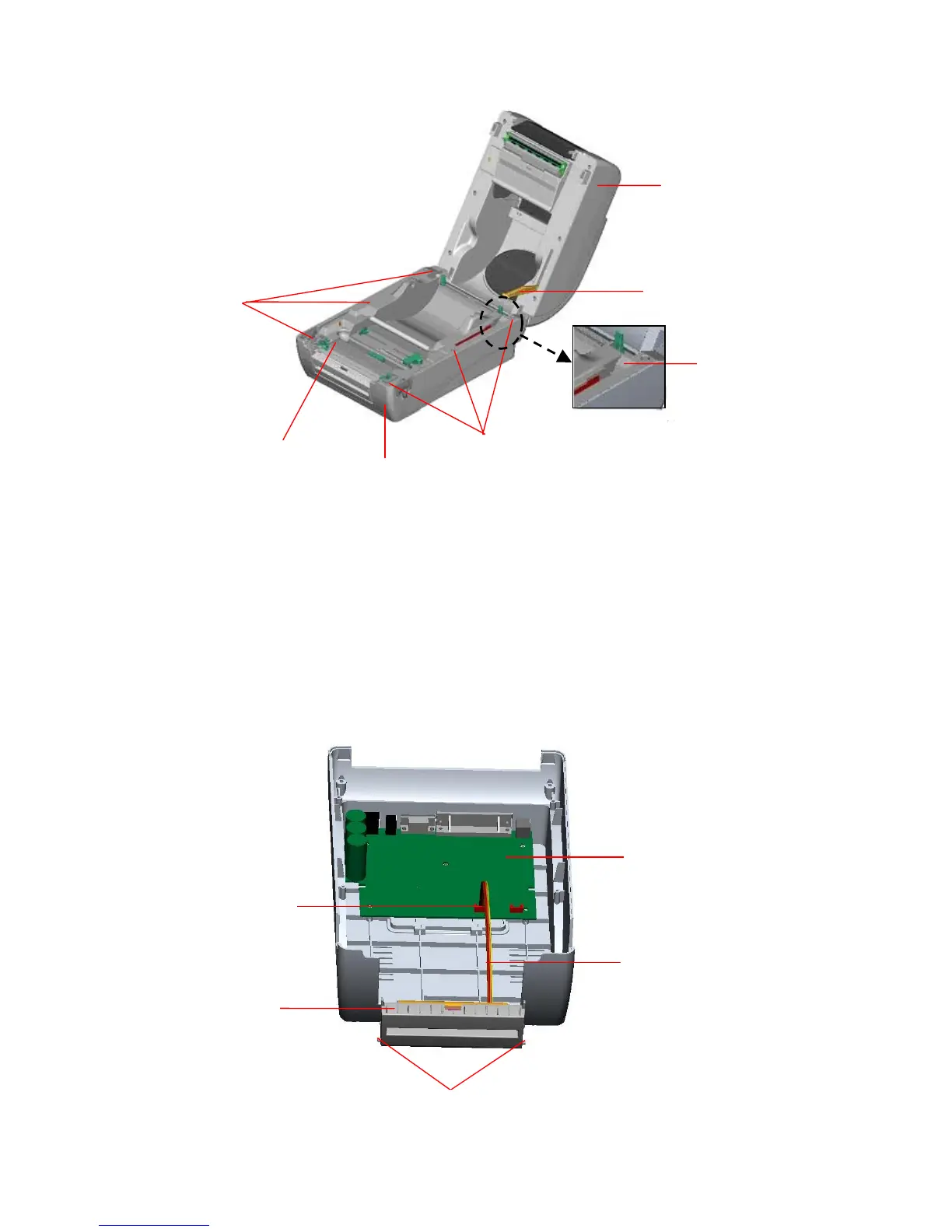

Fig. 13 Remove 6 screws from lower inner cover
4. Upside down the printer. Remove two screws at the hinge and remove one screw at
memory card cover.
5. Hold the lower cover to lift up the top cover open levers to separate the lower inner
cover and the lower cover.
6. Arrange the cable through the bezel. Connect the peel-off panel cable to the 5-pin
socket on printer PCB.
Peel-off
panel
Peel-off panel
Cable
5-pin Socket
PCB
Tenon
Lower Cove
r
Screws
Lower Inner
Cover
Top Cover
Screws
Top Cover Support
Flute

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
