TSC TTP-245 User Manual

8
Fig. 8 Label installation (II)
3.4 External Label Roll Mount Installation (Option)
1. Attach an external paper roll mount on the bottom of the printer.

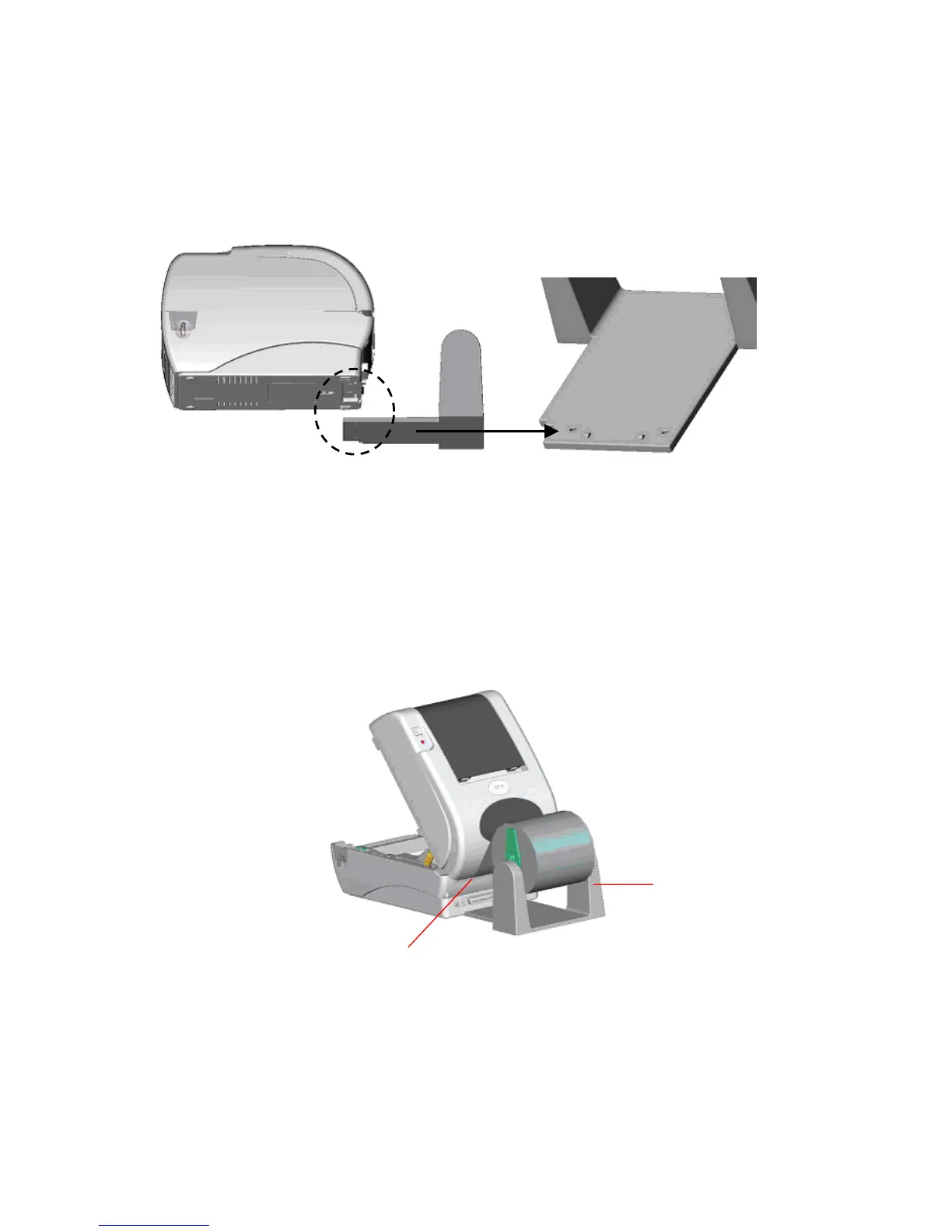

Fig. 9 Attach the external roll mount to the printer
1. Open the printer top cover by releasing the top cover open levers. The top cover
support will hold the printer top cover.
2. Install a roll of paper on the external paper roll mount.
3. Feed the paper to the external paper feed opening through the rear paper guide.
Fig. 10 External roll mount label installation (I)
4. Feed the paper, printing side face up, through the paper guide and pass over the
platen.
5. Adjust the paper guides to fit the paper width.
External Paper Feed Opening
External Paper Roll
Mount

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
