TSC TTP-343 Plus

15
2. ELECTRONICS
2.1 Summary of Board Connectors

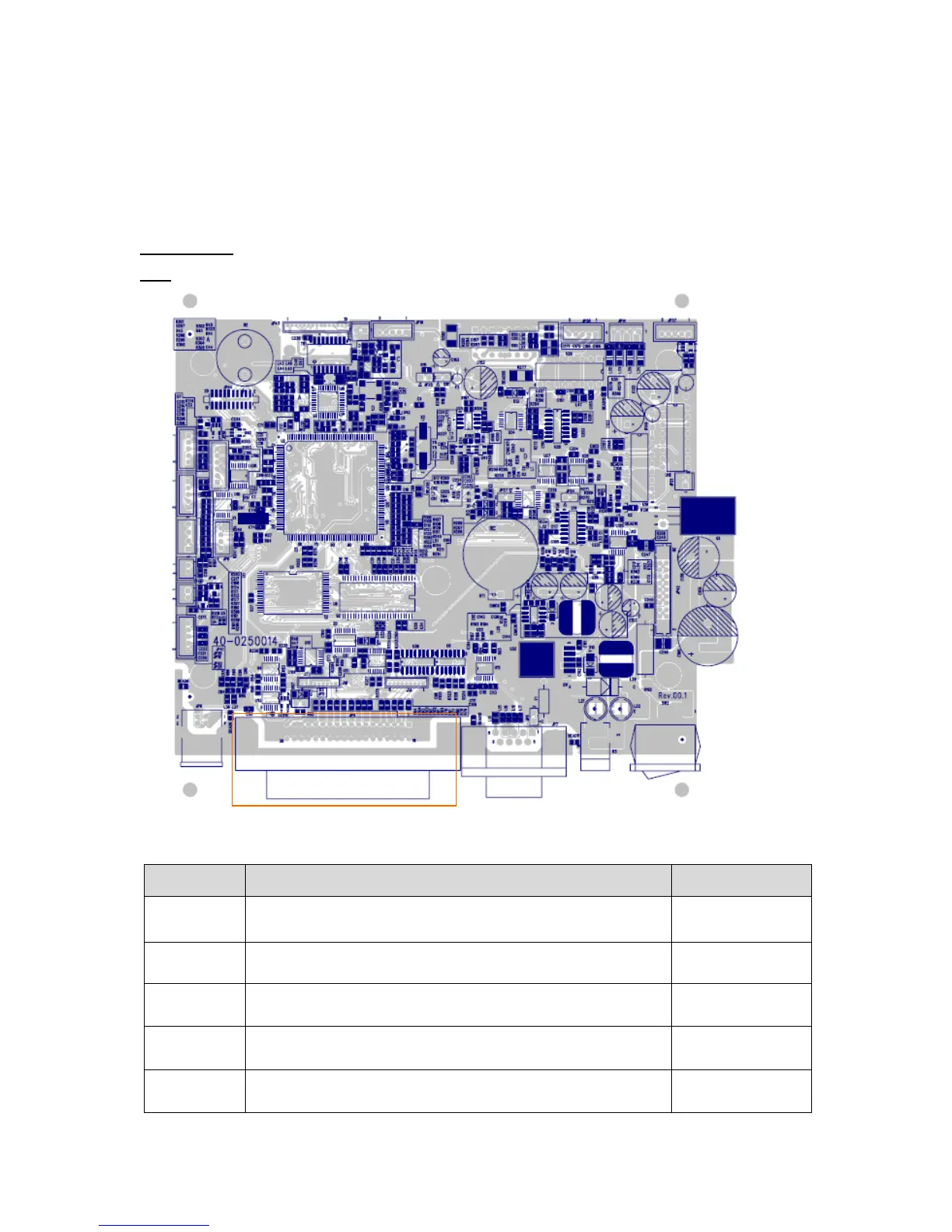

Main board
Top
Connector
Description
Remark
1
Centronics port connector
JP4
2
USB connector
JP9
3
RS-232C connector
JP7
4
Micro processor
U2
5
RFID module connector
JP36
1
2
3
4
5
6
7
7
7
8
9
10
11
12
14
13
15
16
17
18
