3.10. Replacing Head Open Micro Switch

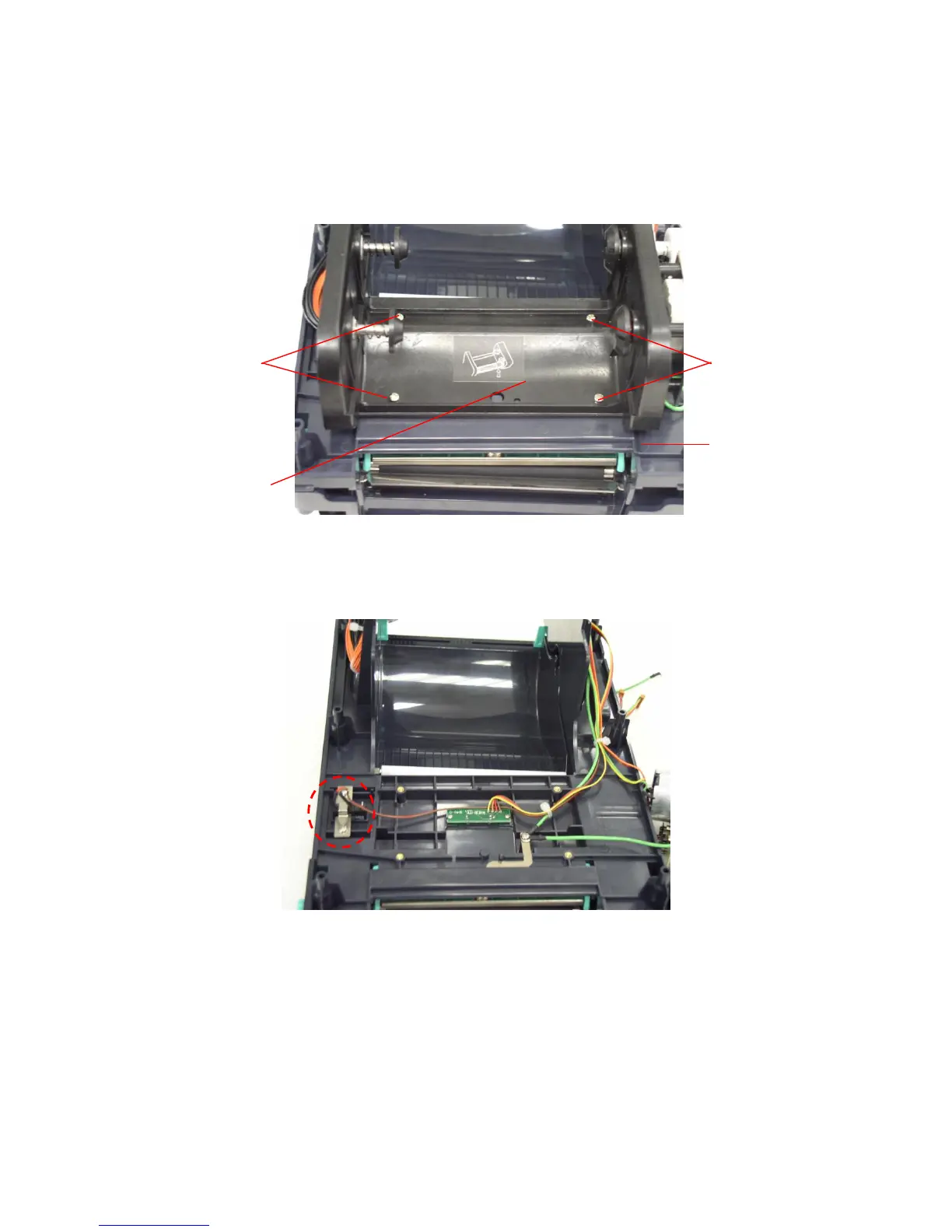

1. Please refer to 3.1 for disassembling the top cover and top inner cover.
2. Disconnect ribbon mechanism by removing 4 screws at top inner cover.
3. Remove 2 screws and remove the head open micro switch.
Mechanism
Screws
Screws
Top inner cover
