3.16. Install Cutter Module (Option)

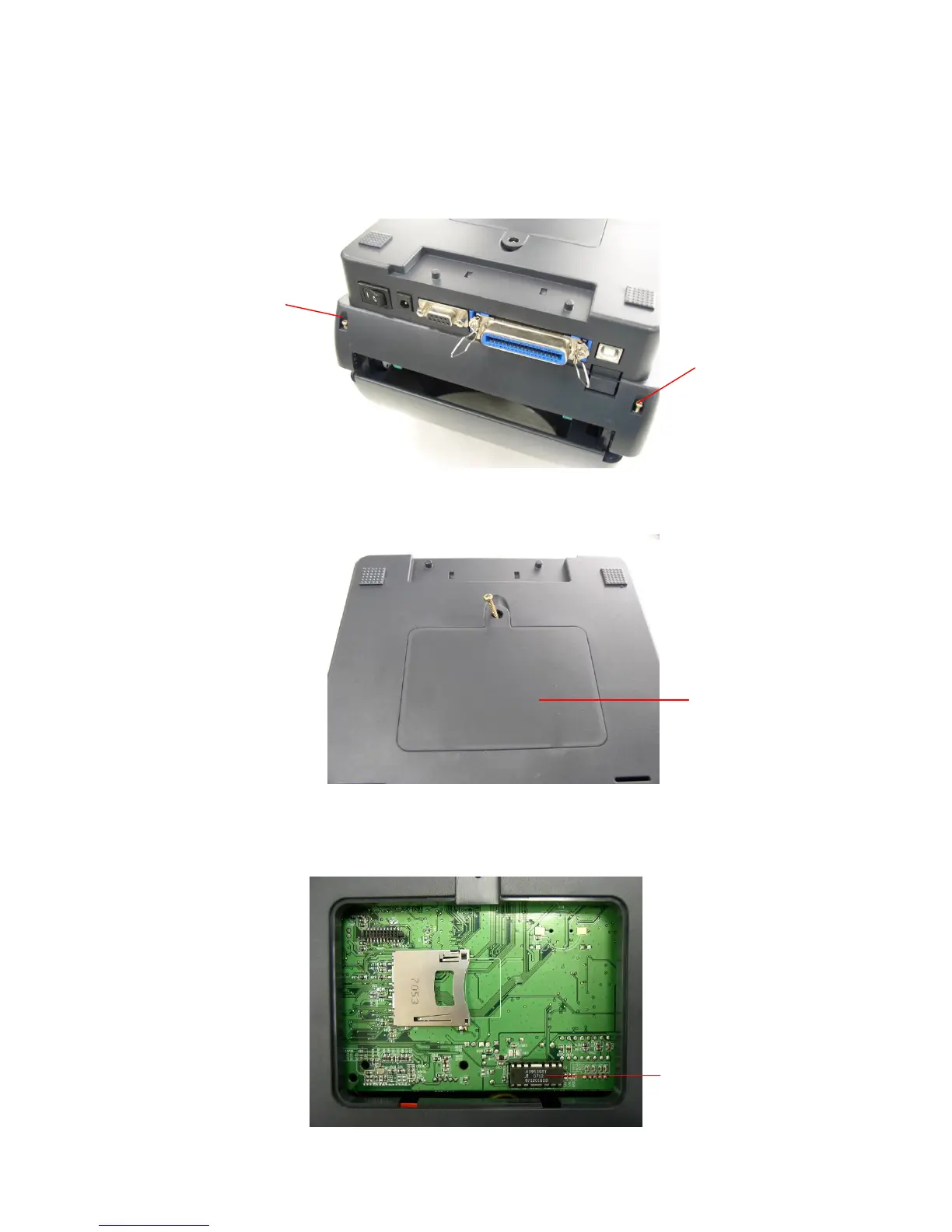

1. Upside down the printer to remove two screws of hinge holder in the lower cover.
2. Remove the screw that fixes the memory card cover.
3. Plug in the Cutter Driver IC at U30 socket on the main board.
Cutter Driver IC
Screw of hinge
holder
Screw of hinge
holder
Memory card
cover
