3.18. Internal Ethernet Interface Installation (Option)

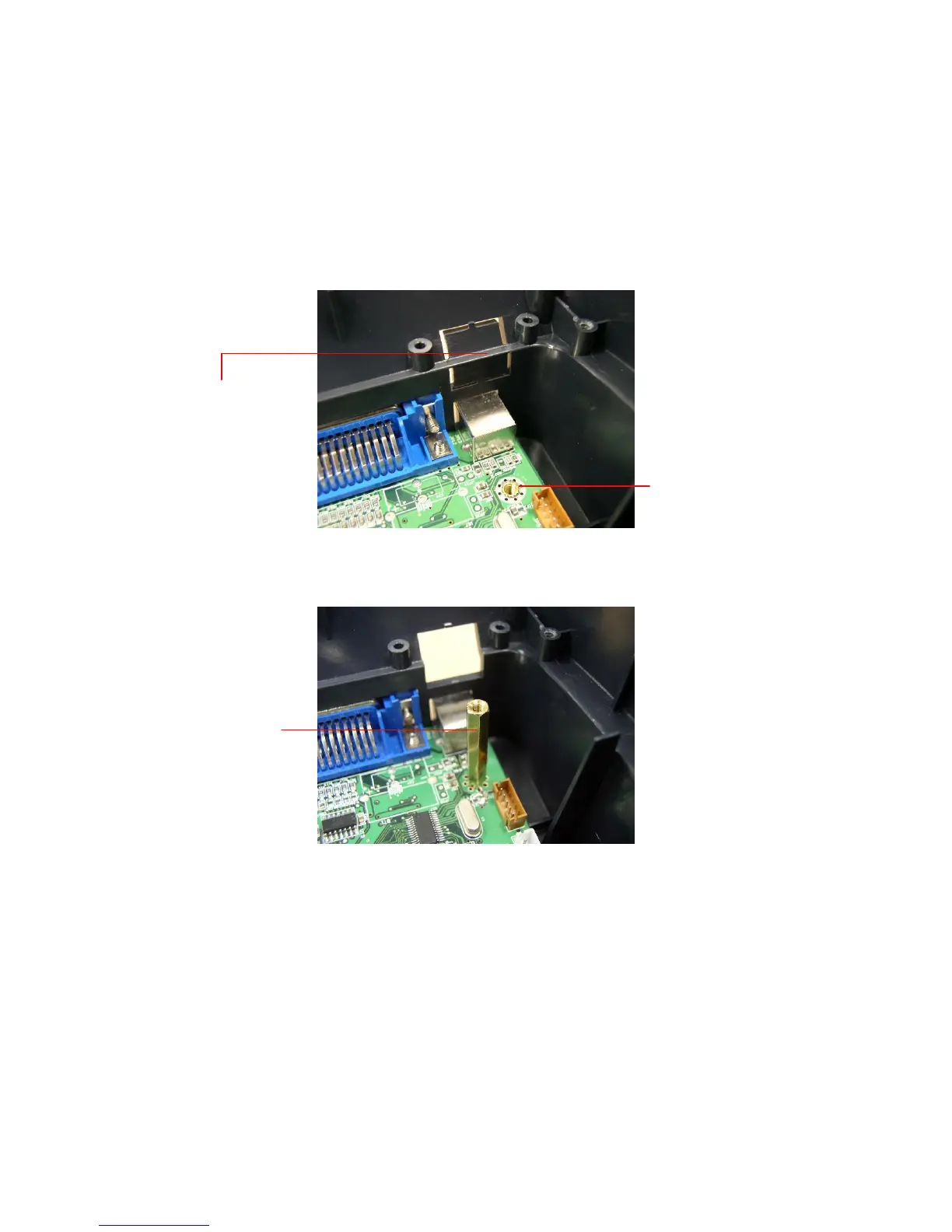

1. Break through the plastic partial tab at the rear side of lower cover to get the RJ45
interface opening.
2. Remove the screw from the main board. Fasten the copper pillar.
3. Plug the RJ45 cable connector to the RJ45 daughter board connector. Fasten the
RJ45 connector daughter board upon the lower cover and copper pillar. The ground
wire from the mechanism must be screwed on the daughter board at copper pillar.
To Next Page
